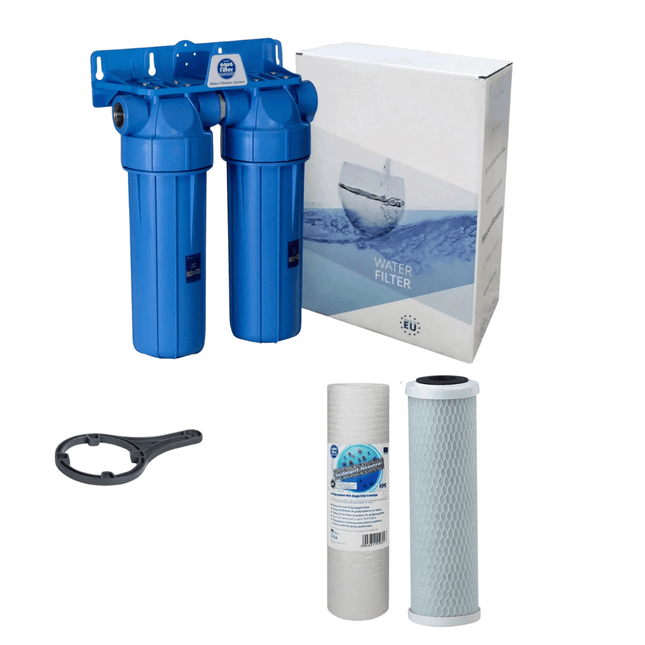

2 Stage 10" Water purifier and dechlorinator filter kitKit contains:
2 Stage 10" water filter housing
2 x Bacteriostatic centering disc - BACINIX Technology
Housing wrench
FCPS5 sediment cartridge
PRISM Plus Carbon Block
Dimensions (H x W x L): 250 x 140 x 360 (mm)Minimum Temp.: 2°CMaximum Temp.: 45°CMaximum Flow: 33 lpmWorking Pressure: 6 bar
2 Stage 20" Big Blue Water purifier and dechlorinator filter kitKit contains:
2 Stage 20" Big Blue water filter housing with 1” BSP port
2 x Bacteriostatic centering disc - BACINIX Technology
2 x Pressure gauge
Metal platform
Housing wrench
FCPS5M20B sediment cartridge
FCCBL20BB-G-gold series carbon block
Specifications:Housing: PPCap: PPInserts: brassPressure relief valve: brassNo. of pressure gauge: 2O-ring: NBRThread: 1" BSPOperating Pressure: 6 barMaximum Flow: 210 lpmMinimum Temperature: 2ºCMaximum Temperature: 45°CDimensions (H x W x L): 785 mm x 350 mm x 220 mm
2 Stage 20" Big Blue Water purifier and softener filter kitKit contains:
2 Stage 20" Big Blue water filter housing with 1” BSP port
2 x Bacteriostatic centering disc - BACINIX Technology
2 x Pressure gauge
Metal platform
Housing wrench
FCPS5M20B sediment cartridge
FCCST20BB Water softening and iron reducing cartridge
Specifications:Housing: PPCap: PPInserts: brassPressure relief valve: brassNo. of pressure gauge: 2O-ring: NBRThread: 1" BSPOperating Pressure: 6 barMaximum Flow: 210 lpmMinimum Temperature: 2ºCMaximum Temperature: 45°CDimensions (H x W x L): 785 mm x 350 mm x 220 mm
Pentair Big Clear Filter Housings offer the versatility to meet all of your large capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are available in both 10" and 20" lengths.Big Clear Filter Housings offer on-site examination of flow, performance, and cartridge life and are ideal for a variety of applications. The 1" polypropylene caps are available with a pressure-relief button on the inlet side to relieve pressure inside the housing and are available in 10" and 20" lengths.Caps are constructed of reinforced polypropylene. The 10" sumps are made of Lexan® and the 20" sumps are SAN (Styrene acrylonitrile)Features, Options, & Benefits
Large capacity housing suitable for high flow applications
Available in 10" and 20" lengths
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
•Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar
Big Blue® Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high flow and heavy sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10" and 20" lengths.Big Blue and Big Black Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.Features, Options, & Benefits
Large capacity housing suitable for high flow applications
10" and 20" lengths available in opaque and clear
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar
NSF CertificationsThe 150233, 150234, 150235, 150236, 150237, 150238, 150239, 150240, 150467, 150468, 150469, and 150470 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
Big Blue® Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high flow and heavy sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10" and 20" lengths.Big Blue and Big Black Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.Features, Options, & Benefits
Large capacity housing suitable for high flow applications
10" and 20" lengths available in opaque and clear
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar
NSF CertificationsThe 150233, 150234, 150235, 150236, 150237, 150238, 150239, 150240, 150467, 150468, 150469, and 150470 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
Big Blue® Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high flow and heavy sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10" and 20" lengths.Big Blue and Big Black Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.Features, Options, & Benefits
Large capacity housing suitable for high flow applications
10" and 20" lengths available in opaque and clear
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar
NSF CertificationsThe 150233, 150234, 150235, 150236, 150237, 150238, 150239, 150240, 150467, 150468, 150469, and 150470 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
Big Blue® Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high flow and heavy sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10" and 20" lengths.Big Blue and Big Black Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.Features, Options, & Benefits
Large capacity housing suitable for high flow applications
10" and 20" lengths available in opaque and clear
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar
NSF CertificationsThe 150233, 150234, 150235, 150236, 150237, 150238, 150239, 150240, 150467, 150468, 150469, and 150470 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.

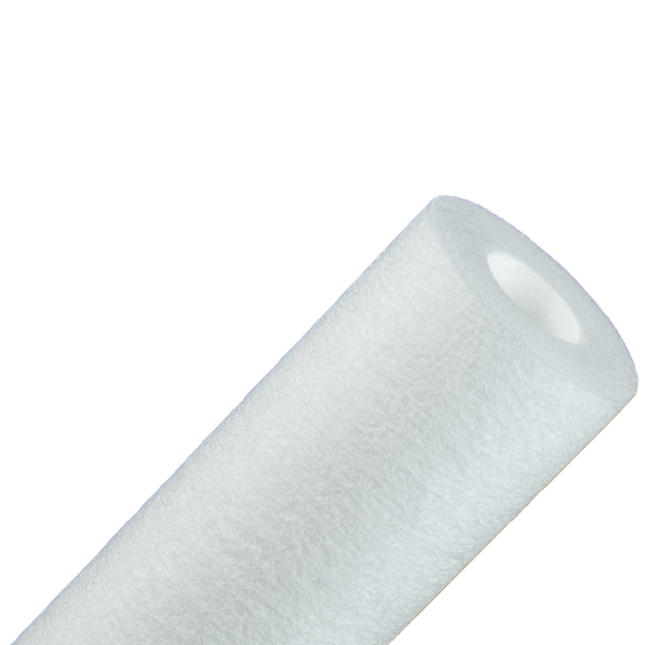

The lowest cost spun-bonded cartridge in the GroAqua range, our spun polypropylene cartridge is ideally suited for batch processes where repeated change-out is required. With a graded density construction, this entry level cartridge is excellent at preventing premature blinding of other filtration systems further downstream.
