The exclusive use of internationally recognised high-performance compressors and of the titanium coaxial heat exchanger, ensures high performances. The set of technologies used allows you to decrease noise levels and achieve the highest COP-Coefficient Of Performance, contributing to significant energy savings.
Digital Thermostat
The setting of functions is intuitive and the temperature reading is accurate, resolution 0,1Β°C/1Β°F. The setting range is 5Β°C - 30Β°C (41Β°F - 86Β°F) and the temperature is kept constant with a maximum differential of 0,5 Β°C/0,5 Β°F. Displayed temperatures are in Β° C or Β° F and there are security alarms.
Efficient Design

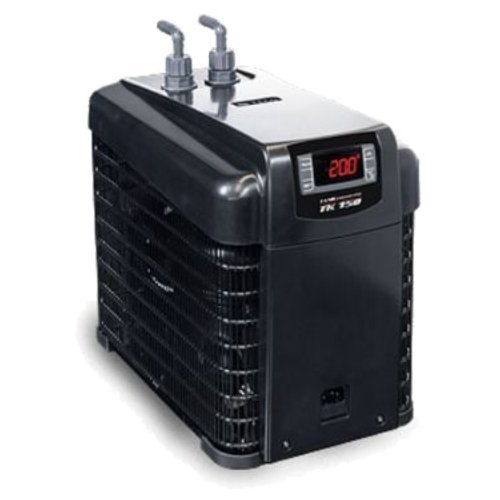

The chiller, with its innovative design, is characterized by a solid structure designed to guarantee a perfect protection against rust. The user will appreciate the functionality of the shape and the compact size, which makes the chiller ideal also for confined spaces.
Unique Features
The βTECObody-condenser systemβ represents another major achievement: besides performing its main function as an integral part of the structure, the condenser confers an exclusive and original design to the chiller. Moreover, it makes the use of the filter unnecessary, thus eliminating the cleaning problems normally associated with it. The heater cannot be installed in this model.
Power supply
Water temp.
Liters
US Gallons
COP**
50Hz
25Β° C*
150
40
1,19
*The values reported in the table refer to the following conditions: room temp. 30Β°C, heating load of 0.5 w/lt. **Coefficient of performance
Power Supply
Power Consumption
Gas
Weight
Ambient temperature
50Hz
210 W
R134
26,9 lb
10Β°C - 38Β°C
All data are approximate and may be changed without notice by TECO.
Technical Details
SupplyΒ
Β
230V-50HzΒ
Β Cooling Power Consumption
Β
Β 150 w
Β Ecological Gas
Β
Β R134a
Β Min. Flow Rate
Β
Β 400 l/h
Β Tank Size
Β
Β up to 150 l (water temp. 25Β°C - Room temp. 30Β°C - Heating load 0.5 w/l)
Β Dimensions (millimeters)
Β
Β 215 (w) x 361 (d) x 315 (h)
Β Dimensions (inches)
Β
Β 8.46 (w) x 14.21 (d) x 12.4 (h)
Β Connections
Β
Β fitting 1/2" - 12mm int. tube diameter
