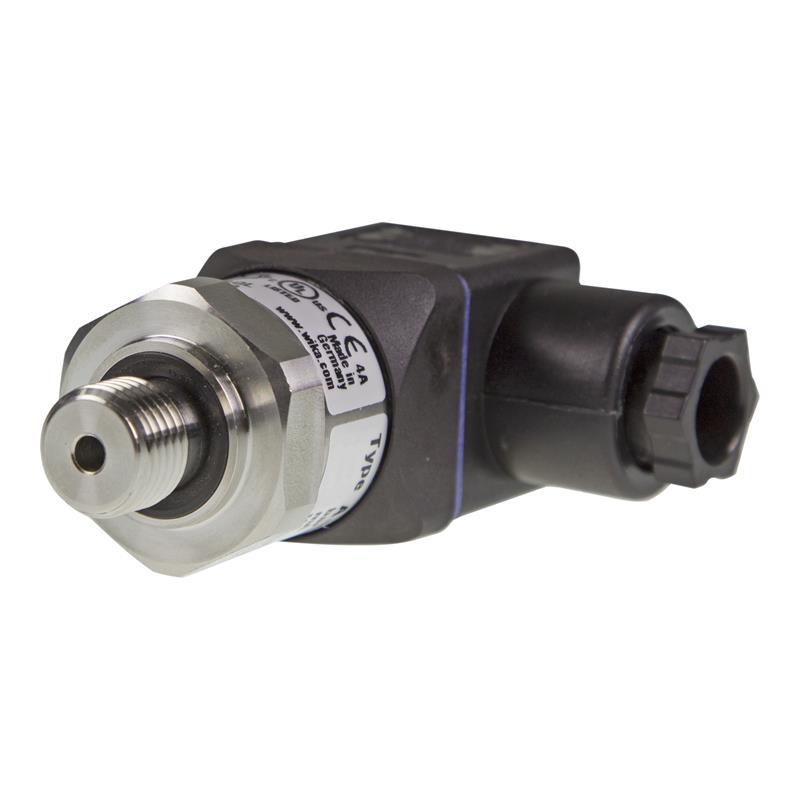

Description
Compact pressure transmitters ideally suited to hydraulic applications requiring intergrated pressure measurement
Ranges up to 10bar use proven piezo resistive sensor elements
Thin film strain gauge sensors used for ranges 25bar up to 600bar
Electrical Output: 4 to 20mA 2 wire
Accuracy: <0.25% Limit Point Calibration ≤0.5% (BFSL)
Construction 1.4571 stainless steel (wetted parts), 1.4301 stainless steel (housing)
Technical Data
| Attribute |
Value |
| Input Connection Thread |
G 1/4 |
| Output Connection Type |
4-Pin L-Plug |
| Output Signal |
4 to 20mA |
| Maximum Pressure |
4bar |
| Minimum Pressure |
0bar |
| Minimum Operating Temperature |
-30°C |
| Maximum Operating Temperature |
+80°C |
| Input Connection Thread Standard |
G |
| Input Connection Thread Size |
1/4in |
