The Mimosoa N5-45x2 Sector Antenna is the industry’s first sector antenna to deliver the best of both worlds — incredible noise rejection and long-distance performance, with wideband 4.9–6.4 GHz operation for fixed wireless broadband. The dual-slant polarization, 45º sector can be used with any third-party 2x2 MIMO radio solution, or two N5-45x2 antennas can be connected to the 4x4 MIMO Mimosa A5c access point, aimed in different directions, for 2x spectrum reuse, superior range and noise rejection at collocation and tower sites.
Key Features
Industry-Leading Front-to-Back Ratio for 2x Spectrum Reuse
World-Class Noise Rejection
High-Gain for Long Distances
Wideband 4.9–6.4 GHz Sector
Reject Noise and Synchronise
Overcoming noise at tower sites is key to scaling capacity. The N5-45x2 delivers industry-leading side lobe rejection and an unprecedented 43 dB front-to-back (FTB) performance — the highest FTB ratio of any sector or horn antenna in the industry. Compatible with any third-party, 2x2 MIMO radio solution, there’s no higher performance antenna in the industry.
Wideband Operation
Supporting 4.9 GHz public safety applications and multipoint licensed operation up to 6.4 GHz, where regulations allow, the N5-45x2 provides an additional 800 MHz of spectrum beyond the crowded 5.15–5.85 GHz unlicensed channels.
Go the distance
The Mimosa N5-45x2 offers the best of both worlds — a long distance, high gain sector with the superior noise isolation of a horn. Competitive sectors offer high-gain, but fail to reduce side lobe and front-toback noise. Symmetric horn antennas achieve good noise isolation, but typically offer lower gain and inefficient symmetrical ground coverage patterns.
Compatible with Third-Party Radios
Blending the best of sector antennas with the best features of a horn, the Mimosa N5-45x2 is a great sector antenna choice to use with any 2x2 MIMO radio. Even better, the ultra-wide 9º vertical beamwidth covers substantially more ground than other leading sector antennas.
Product Features:
Industry-Leading Front-to-Back Ratio for 2x Spectrum Reuse
World-Class Noise Rejection
High-Gain for Long Distances
Wide-band 4.9GHz – 6.4GHz Sector
Antenna Specifications:
Gain: 19dBi
Polarization: Slant 45°
Azimuth Beamwidth (3 dB): 42°
Elevation Beamwidth (3 db): 9°
Electrical Downtilt: 2°
Front-to-Back Ratio (min): 43dB
Cross-Polar Isolation: >30dB
Port-to-Port Isolation: >10dB
Impedance: 50 Ω
Max Input Power: 30dBm
Physical Specifications:
Dimensions: Height: 427mm (16.81”) Width: 143mm (6.63”) Depth: 76mm (3.0”) including connectors
Shipping Box Dimensions: Height: 662mm (26.06”) Width: 166mm (6.53”) Length: 100mm (3.94”)
Weight: 2.81kg (6.2lbs)
RF Connectors: 2 N-type female (includes two 1 meter LMR 240 Type-N to Type-N cables)
RF Connectors Position: Back of antenna, near center
Enclosure Characteristics: Outdoor, UV stabilized, engineered polymer
Mounting: Galvanized steel, dual attached pole mount with 20° mechanical up or down tilt. Two mounting brackets included. For pole sizes, maximum is 3.5” (90 mm) and minimum is 1.5” (38 mm).
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 4.77 kg @ 160 km/h (10.49lbs @ 100 mph)
Environmental:
Outdoor Ingress Protection Rating: IP55
Operating Temperature: -40°C to +55°C (-40°F to 131°F)
Operating Humidity: 5 to 100% condensing
Operating Altitude: 4,420 m (14,500’) max
Shock & Vibration: ETS 300-019-2-4 class 4M5
RoHS Compliance: Yes
Product Includes:(1) N5-45x2 Sector Antenna(1) User Manual(2) Mounting Brackets
Mimosa N5-X25 (100-00091) is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100 Mbps. With the purchase of a PTMP speed feature key, speeds of up to 500 Mbps will be unlocked in PTMP mode. In order to unlock and utilize PTP mode, with speeds of up to 700 Mbps, a PTP feature key must be purchased. 8-Pack
Product Features:
Twist-On, Flexible Antenna
PTP or PTMP Modes (feature key may be required)
Extended Frequency 4.9–6.4 GHz
Best-in-Class Noise Immunity
Ultra Rugged
Low-Power Consumption
Ultra Reliable
Gigabit Ethernet: 10/100/1000-Base-T
Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog monitoring; HTTPS; HTML5-based web UI
Product Specifications:
Product: N5-X25
Gain: 25dBi
Polarization: Dual-Slant: 45°
Beamwidth, Symmetric (3 dB): 8°
Front-to-Back Ratio (min): 40dB
Front-to-Side Ratio (min): >45dB
Weight: 0.98 kg (2.15lbs)
Dimensions: Diameter: 429 mm (16.89”) Depth: 116 mm (4.57”)
Mount: Mimosa N5-X twist-on
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 36.26 kg @ 160 km/h (79.95lbs @ 100 mph)
Operating Temperature: -40°C to +55°C (-40°F to 131°F)
Product Includes:
(8) N5-X25 Dish(1) User Manual

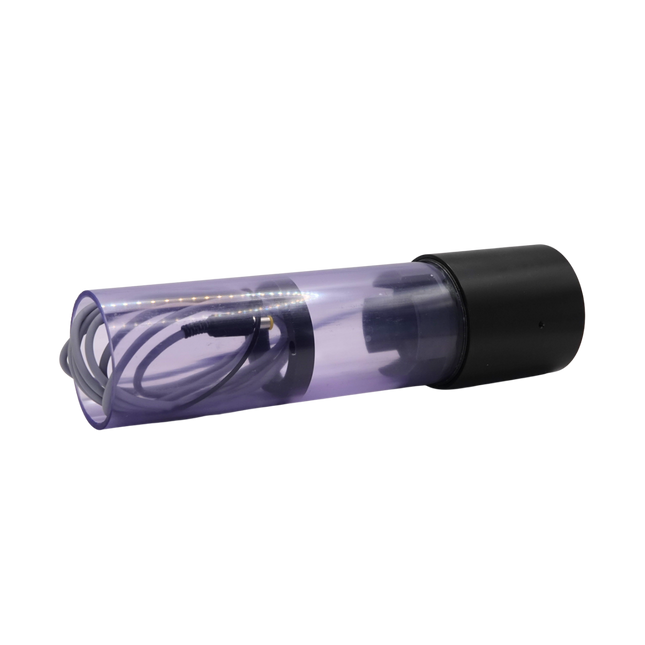

OxyGuards new optical oxygen probe is developed in cooperation with world leading experts. Based on luminescence quenching of a sensor dye immobilized on a support foil it can be used for gas measurements as well as for dissolved oxygen (DO).
The presence of molecular oxygen quenches the luminescence, changing its intensity and lifetime fully reversibly. The measurement principle is very robust. It shows virtually no interference to other gases and has very low drift. Bleaching is not an issue because low energy red light excites the sensor spot and emission is NIR.
Special features
High-accuracy measurements of oxygen in gas or water (DO)
Low drift
Long lifetime
Fast response
Digital output of all major oxygen units
Technical Data Sheet
The OxyGuard Atlantic is an accurate, reliable and easy to use oxygen meter with features ideal for use in aquaculture facilities such as shrimp farms, carp farms and other installations with individual, large ponds.
It measures both dissolved oxygen and temperature, and has 4 relay outputs. The dissolved oxygen measurement is compensated for atmospheric pressure, which permits accurate control of aerators. The user can link setpoints to parameters as desired. Setpoints can then be linked to output relays. It is also possible to link setpoints together. This permits, for example, an aerator to be started both from a DO setpoint and a temperature set point.
Download Brochure
The OxyGuard CO2 probe is a reliable and easy to use probe that measures the free dissolved CO2 directly and is not affected by carbonates or other dissolved substances.
OxyGuard CO2 Probe Brochure
The OxyGuard CO2 probe is a reliable and easy to use probe that measures the free dissolved CO2 directly and is not affected by carbonates or other dissolved substances.
OxyGuard CO2 Probe Brochure
Cobália is an advanced farm management platform that enables you to control and evaluate every part of your production. The farm management system will keep track of daily, monthly and yearly tasks, auto-generate reports for authorities, keep track of inventory and give a complete visual overview of the conditions on your farm.
Optimisation
Management
Price if for a single tag
Commander probes, 4 wire cable, for Commander, Pacific and Atlantic: D0243C: For mg/l and % saturation measurements. Also measures temperature
*Accessories are shipped with every OxyGuard probe. You will thus be able to change the membrane if you manage to damage it during installation. Otherwise the accessories can be enough for up to 5 years’ use.
