Description

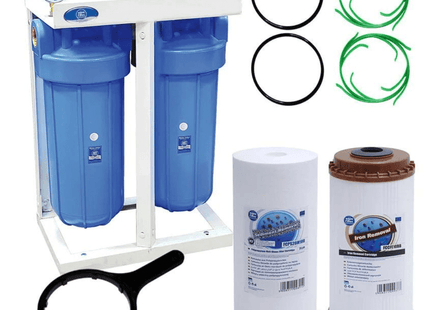

2 Stage 10" Big Blue Water purifier and iron reducing filter kit

Kit contains:

• 2 Stage 10" Big Blue water filter housing with 1” BSP port
• 2 x Bacteriostatic centering disc - BACINIX Technology
• 2 x Pressure gauge
• Metal platform
• Housing wrench
• FCPS5M10B sediment cartridge
• FCCFE10BB iron reducing cartridge

Specifications:
Housing: PP
Cap: PP
Inserts: brass
Pressure relief valve: brass
No. of pressure gauge: 2
O-ring: NBR
Thread: 1" BSP
Operating Pressure: 6 bar
Maximum Flow: 110 lpm
Minimum Temperature: 2ºC
Maximum Temperature: 45°C
Dimensions (H x W x L) : 540 mm x 350 mm x 220 mm

Specifications

• Brand: Aquafilter
• Ports: 1"
• Operating pressure: 6 bar (90 psi)
• Operating temperature range (water): 2 - 45 °C (35 – 113 °F)
• Configuration: 2 Cartridges (10" x 4.5")
• System dimensions (Height x Width x Length): 720 x 380 x 220 mm
