System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Combination temperature and conductivity sensor for the YSI Model 556 Instrument and Professional Plus.
User-replaceable sensor allows for quick sensor replacements, if needed. No tools necessary.
One-year sensor warranty.
Measure temperature and conductivity quickly and easily with the 5560 sensor.
The 005560 Conductivity/Temperature Replaceable Probe can be used with the YSI Professional Plus and 556 Multiparameter Handheld Instruments. Use with Quatro cables.
The Point Four Tracker is one of the most reliable, most respected TGP meters on the market. Gas saturation issues can cause many problems in aquaculture systems that typically go unnoticed. This meter allows you to solve the problems and easily identify issues. The assembly includes the meter, probe, 5 meter cable, charger, USB Cable, and carrying pouch. This meter ships free within the US.

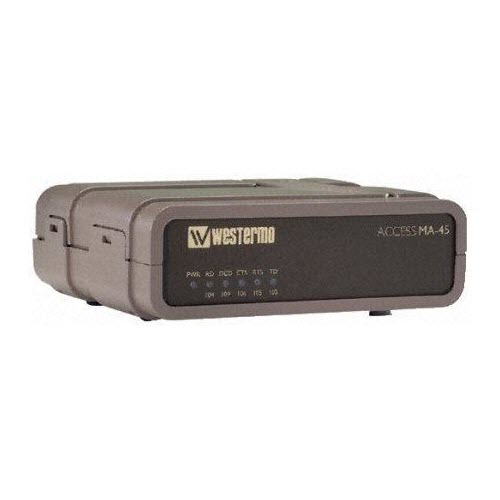

RS 422//485 converter
The MA-45 is used as an interface converter between RS-232 / V.24 and RS-422 / 485 or when point-to-point communication with speeds up to 155.2 kbit / s is required. The unit accepts communication over 2 or 4 wires over distances up to 1200 metres and with 32 loads in bus-oriented applications. For 2-wire communication, the direction of the communication is controlled via the data flow. The converter detects the data and changes the communication direction by reversing it in accordance with the arrival direction of the data. This makes it possible to connect equipment that is unable to process status signals. The MA-45 is a standalone unit. One or more repeaters make it possible to increase the communication distance or connect more units to the bus.
Its strengths:
Conversion between RS-232 / V.24 and RS-422 / 485.Communication direction controlled by the data flow or RTS.Galvanic insulation. Protection against lightning and transients. Independent of code / transparent. Reliable transmission over long distances in exposed environments. Excellent performance, great reliability.AC / DC power supply.
Wedeco quartz sleeves offer optimal protection against fractures caused by internal stresses, external mechanical forces, vibration and lamp-water temperature differentials. Robust and scratch-resistant, they also reduce fouling.
FIAP profiO₂ Flow Meter Pro with integrated fine-adjustment has been the most frequently deployed flow meter in fish farms and at fish transport. Additionally, FIAP profiO₂ Flow Meter Pro is ideally suited for measuring and controlling oxygen supply via oxygenation systems. Accurate adjustment allows for precise oxygen dosing, and respective scale reading. FIAP profiO₂ Flow Meter Pro significantly reduces loss caused by oxygen underfeeding. Its fastening rail and manifold have been made from stainless steel, and chrome-plated brass has been used as production material. Our high production standards enable us to also offer spare parts for each and every wear part. All FIAP profiO₂ Flow Meters Pro will be supplied with 6 mm hose connectors and union nuts.
The Trojan Wiper Seal Kit is a comprehensive solution for maintaining a clean and hygienic environment. The kit is for use with a UV steriliser, designed to eliminate 99.9% of bacteria and germs. The durable wiper seal helps to keep residue and dust at bay while ensuring optimal surface protection.
Our Wedeco - SLR 32143/4P UV Light Bulb For Germicidal Water Treatment is a 187 watts UV bulb that has a lamp length of 38.78 inches. The bulb has a base of four pin and is made using ceramic as its base material. The lamp has an average lifespan of 10,000 hours after which it must be replaced for better performance of your system
UV-C light is not a chemical but a physical process, which means that there is no change in the chemistry, pH and taste of water when UV light passes through it. The fixture is high on quality and has low mercury dosage to meet the demands of the environment. Since the light bulbs are intended to destroy microorganisms it is necessary to schedule replacement of the bulbs annually to ensure efficiency of the system. These high-quality lamps can last for approximately 10,000 working hours after which the UV output reduces though the UV lamp emits bright light.
Compatibility:
Ideal Horizons 38595
UVDRX-1613
11270-C
AF25
W00025
Wedeco 6101277
Wedeco 6102167
EcoRay 32143/4P
TAK33
TAK55
Common Applications:
Well water
Drinking water
Surface water
Municipal water
Wastewater
Food service/processing
Beverage service/processing
Hospitals
Aquaculture
Pools, Spas and Water Features
Chemicals
Oil, Gas and Power
Pulp, paper and wood
Electronics
Cosmetics
Pharmaceuticals
Hotels
Water bottlers
Laboratories
Marine and more
Technical Specification:
Wattage: 187 Watts
Wavelength range: 254NM
Length: 38.78 inches (985mm)
Base: 4 pin
Base Material: Ceramic
Average Lifespan: Up to 10,000 hours

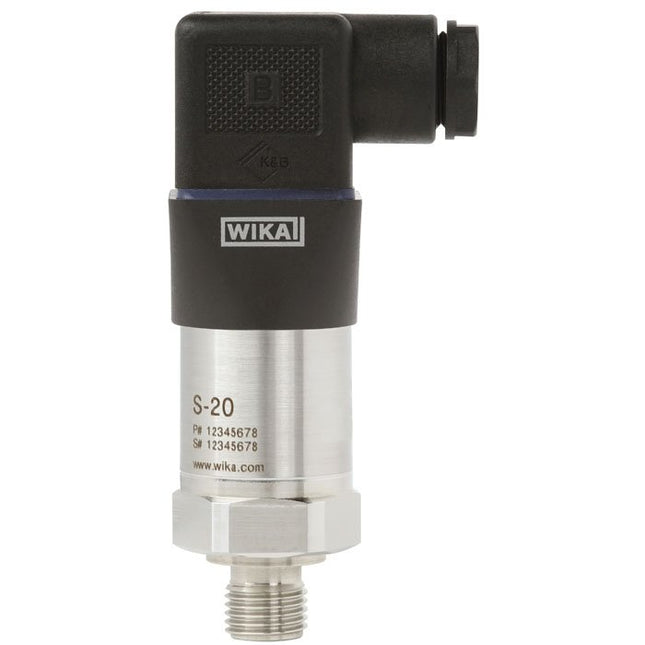

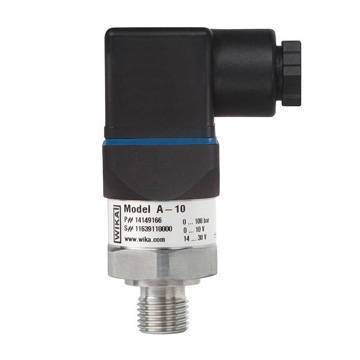

WIKA Pressure Sensor for Dry Measuring Cell , 2.5bar Max Pressure Reading Current (2-Wire)
Technical Data
Attribute
Value
Pressure Reading Type
Gauge
Minimum Pressure Reading
0bar
Maximum Pressure Reading
0.6bar
Accuracy
± 0.25%
Output Type
Current (2-Wire)
Supply Voltage
8 → 35 V
IP Rating
IP65
The Burkert Type 8045 Magmeter is an insertion flowmeter for pipe sizes DN15-DN400. Typical applications are liquids having a conductivity > 20 uS. With sensor bodies in Brass, st/st, PVDF, PVC and PP
Measuring range 0.05 - 10 m/s Repeatability =/-0.25% o.R. Display 8-digit LC-display Fluid conductivity > 20 uS Fluid temperature maximum 0 to 80°C Sensor material Body in PVDF electrodes Stainless Steel
