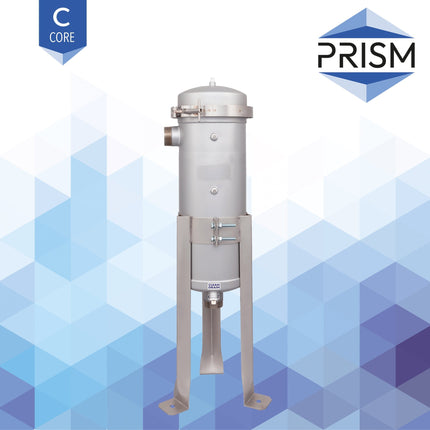

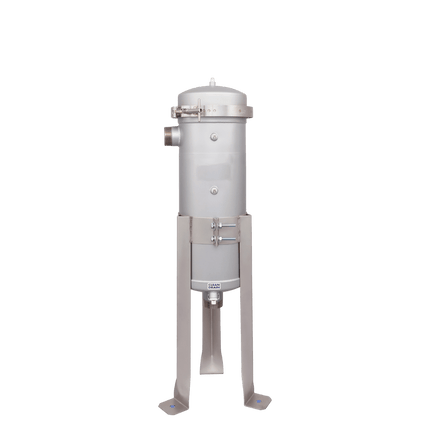

The BH-SS-7x16-2-B-C PRISM CORE RANGE Bag Housing provides a robust and efficient industrial filtration solution, engineered for demanding environments. Its advanced design ensures reliable performance for high-flow and precision filtration applications.

High-Grade Material Construction

• Manufactured from 316L stainless steel, offering exceptional corrosion resistance and durability under extreme conditions.
• Ideal for use in high-temperature, high-pressure, and chemically aggressive environments, ensuring long service life.

Advanced Design Features

• Equipped with Core, V-band clamp closure for secure and consistent housing seal.
• Optional swing-bolt configuration provides added flexibility for varying industrial needs.
• Adjustable mounting legs enhance installation convenience and provide operational stability.

Enhanced Filtration System Components

• Comes standard with inlet and outlet pressure gauge ports, enabling real-time system performance monitoring.
• Vent and drain ports allow for efficient filter bag changes, reducing downtime and process disruption.
• Supplied with pressure gauges, offering accurate pressure-drop information to monitor and optimize filtration efficiency.

Pressure, Temperature, and Flow Specifications

• Rated for a maximum pressure of 10 bar, ensuring safe and effective operation in industrial processes.
• Operates within a temperature range of up to 120°C, making it suitable for high-temperature fluid systems.
• Capable of handling flow rates up to 300 LPM, perfect for medium- to large-scale filtration applications.

Technical Specifications

• Material: 316L Stainless Steel
• Configuration: 1 Bag (Size 1)
• Port Size: 2" BSPT-M
• Seal Type: Buna
• Temperature Rating (°C): 120
• Max Pressure (bar): 10
• Flow Rate (LPM): 300

Versatile Industrial Application

The BH-SS-7x16-2-B-C Bag Housing is ideally suited for a wide range of industries, including water treatment, chemical processing, and food and beverage production. Its ability to handle medium-flow rates and bulk solids removal efficiently makes it a dependable choice for critical filtration tasks.

For industrial applications requiring durable, high-performance filtration, the BH-SS-7x16-2-B-C PRISM CORE RANGE is engineered to deliver unmatched reliability and operational efficiency.
