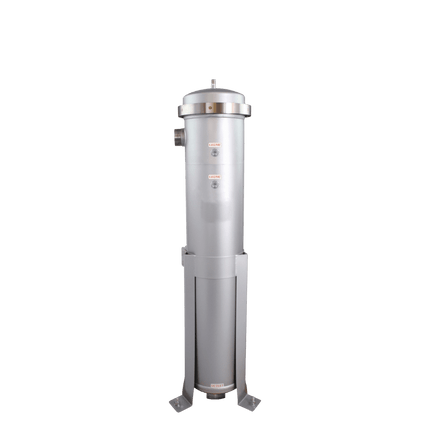

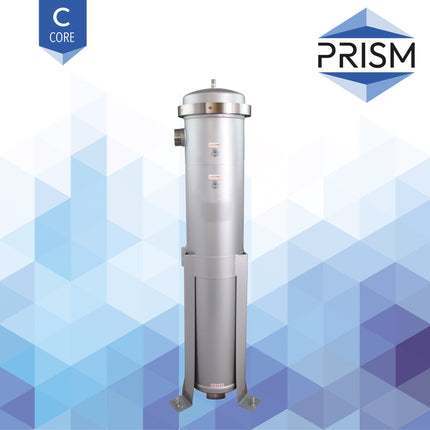

The BH-SS-7x32-2-B-C PRISM CORE RANGE Bag Housing is engineered for superior industrial filtration performance. Built with advanced features and robust materials, it offers reliability in high-flow and bulk solid removal applications.

Superior Material Durability

• Constructed from 316L stainless steel, ensuring exceptional resistance to corrosion, high temperatures, and aggressive chemicals.
• Designed for longevity in challenging industrial environments, including chemical processing and water treatment.

High-Capacity Filtration Performance

• Designed for size 2 bags, making it suitable for high dirt-loading applications.
• Handles a maximum flow rate of 600 LPM, providing efficient filtration for large-scale operations.
• Ideal for systems requiring extended runtime between changeouts, reducing maintenance frequency.

Pressure and Temperature Specifications

• Operating within a pressure rating of up to 10 bar, ensuring safety and reliability under heavy-duty conditions.
• Rated for temperatures up to 120°C, suitable for high-temperature processes.

Integrated System Features for Optimized Performance

• Equipped with inlet and outlet pressure gauge ports to monitor system performance and identify pressure drops.
• Includes vent and drain ports for quick and efficient filter bag replacements, minimizing downtime.
• Adjustable mounting legs ensure stability during operation and make installation flexible for various setups.

Technical Specifications

• Material: 316L Stainless Steel
• Configuration: 1 Bag (Size 2)
• Port Size: 2" BSPT-M
• Seal Type: Buna
• Temperature Rating (°C): 120
• Max Pressure (bar): 10
• Flow Rate (LPM): 600

Industrial Applications

The BH-SS-7x32-2-B-C Bag Housing is designed for applications requiring high flow rates and bulk solid removal, such as petrochemical plants, pharmaceutical manufacturing, and water treatment facilities. Its high dirt-holding capacity and robust construction ensure consistent, reliable operation.

For industries seeking durable and efficient filtration solutions, the BH-SS-7x32-2-B-C is a premier choice, delivering precision performance in the most demanding environments.
