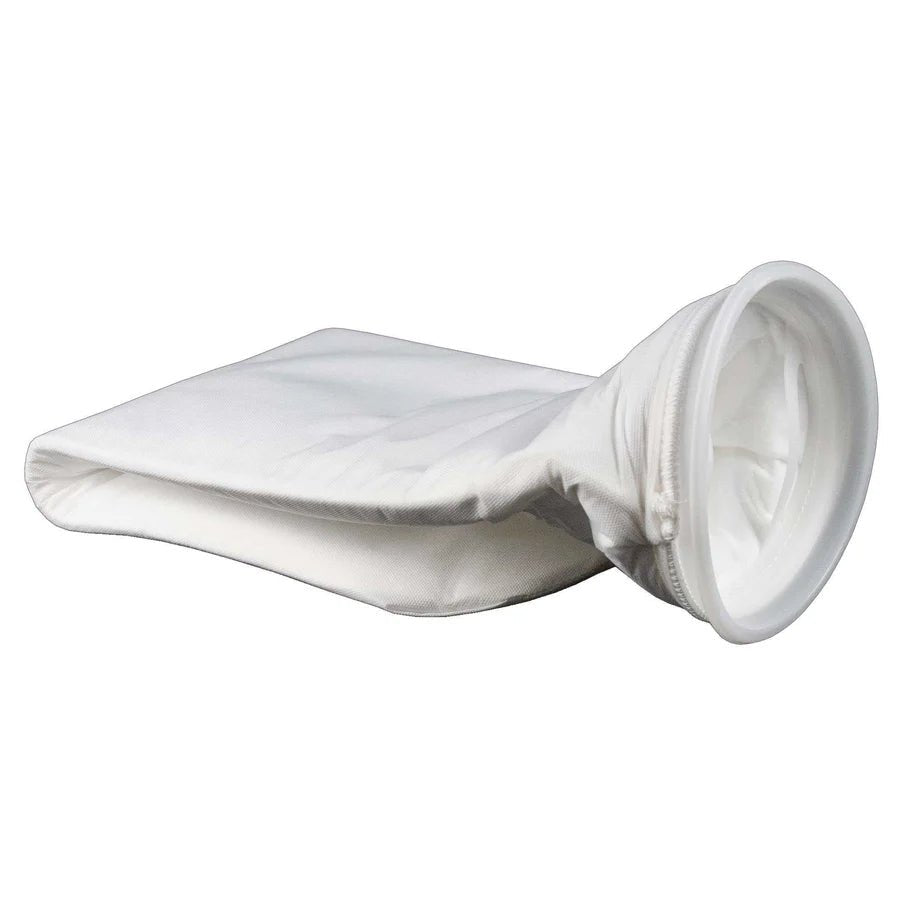

SPECTRUM PBP Premier Size 2 Bag Polypropylene Bag Filter (Multi Layer)
SPECTRUM PBP Premier Size 2 Bag Polypropylene Bag Filter (Multi Layer)
Free pickup in our shop(s)
$87.00 Excl. VAT
Description
Where high efficiency bag filters are required, the SPECTRUM Premier range is the perfect choice for accurate process liquid filtration from 0.5 to 25 micron.
A multi-layer construction ensures high levels of contaminant holding and highly efficient graded-density filtration. The microfibre media coupled with the flanged neck seal lessens the risk of particle bypass. All layers are sewn together to the neck ring, providing a strong, reliable and effective product capable of finer filtration at high process flow rates.
Each bag is manufactured from lot controlled raw media, individually labelled and finished with a total glazing process to inhibit fibre release.
Features & Benefits
Construction notes
A multi-layer construction ensures high levels of contaminant holding and highly efficient graded-density filtration. The microfibre media coupled with the flanged neck seal lessens the risk of particle bypass. All layers are sewn together to the neck ring, providing a strong, reliable and effective product capable of finer filtration at high process flow rates.
Each bag is manufactured from lot controlled raw media, individually labelled and finished with a total glazing process to inhibit fibre release.
Features & Benefits
- Microfibre layers efficiently remove fine particulate and also unwanted trace oils from the liquid
- Multiple layers of pre-filtration ensure high levels of contaminant holding and graded density filtration
- Free from silicone oils to prevent ‘fish-eyes’ occurring in laquers, inks, paints and coatings
- Filter Media: Polypropylene
- Neck Ring: Polypropylene
Construction notes
- Layers of media combined with Microfibre technology create a very high efficiency bag filter
- Support, pre-filtration and Microfibre media are sewn together to the neck ring to produce a reliable structure
- Glazed finishing process is applied to virtually eliminate fibre migration
- WRAS approved product
- BS6920 compliant materials
- FDA compliant to CFR Title 21
Specifications
- Brand: Spectrum
- Efficiency (%): 93
- Neck Style: Polypropylene Flanged Neck
- Size: 2 (32" x 7")
- Material: Polypropylene
- Size: 2 (32" x 7")
- Micron: 0.5, 1, 5, 10, 25
- Flow Rate (lpm): 400
- Size: 2 (32" x 7")
- Dimensions: Type 2 (7" x 32")
- Size: 2 (32" x 7")
