Aquafilter FCPS20-L 20" series cartridges are NSF certified using FDA approved polypropylene for material requirements. The construction of this pure polypropylene, surfactant-free depth filter ensures low pressure drops, with exceptional dirt holding capabilities. FCPS20-L uses no resin binders, lubricants, antistatic or release agents or other chemical additives. The one-step manufacturing process continuously extrudes and thermally bonds pure polypropylene microfibres into a complex filter matrix. Cartridges are characterized by excellent sediment absorption of sand, silt, rust and suspended solids from potable water. Polypropylene fibers are chemical resistant and prevent development of microorganisms. In addition, these filter cartridges effectively protect expensive home appliances and residential pluming systems. FCPS2-L series cartridges are an ideal true depth filters and can be used for filtration of cold potable water. Aquafilter wide range of melt-blown cartridges has multiple fiber zones. These multi-fibre zones provide a graded pore structure throughout the filter’s depth. Our filter cartridges have been designed to capture and retain contaminants throughout the entire cross section of the filter. The multiple fibre zones give our filter cartridges a major competitive advantage over other melt-blown filters with fewer pore size gradients in their structure. Aquafilter melt-blown filters demonstrate true graded depth filtration, the results are long filter service life, therefore lower consumable costs. The new, modern, automatic manufacturing equipment used to produce our wide range of melt-blown cartridge filters delivers consistently efficient filters at low costs.Specifications:Filter media: PPFilter life: up to 6 monthsMin. feedwater temp. 2°CMax. feedwater temp. 80°CNominal micron rating: 20Lengths: 20"Outer diameter: 2 1/2”Inner diameter: 1.1”Avg. Efficiency: 90%
Aquafilter FCCFE20BB 20" Big Blue Iron reducing and pH adjusting cartridge. Aquafilter FCCFE20BB series cartridges are an effective and efficient solution for point-of-use and point-of-entry applications. Their undeniable benefit is ease of installation and changeout. Cartridges include pre- and post-filters preventing media particles from being washed out. Cartridges, are available in various capacities to meet the Customers demands. FCCFE20BB was designed to allow optimal contact between water and the resin therefore ensuring maximum performance (iron and manganese removal). FCCFE20BB utilizes NSF approved media which increase pH and reduce the concentration of iron and manganese in water. Iron in a concentration as low as 0,3 mg/l can become a source of yellow to dark-brown stains often found in sinks, toilets and other plumbing fixtures. If iron is present in detectable amounts it can ruin the taste of tea, coffee and beverages. Iron salts may irritate skin. Manganese is much more annoying than iron. Even low concentrations of this element ( > 0,05 mg/l) create dark-brown or black stains on everything with which it comes in contact. Both manganese and iron form deposits inside piping systems, which (after a while) may severely reduce flow.Specifications:
Media: NSF approved Birm and Corosex
Filter Life: 3-6 months
Size : 20" x 4 1/2"
Operating Pressure: 6 bar
Minimum Temperature: 2ºC
Maximum Temperature: 40°C
Contaminant Removal: iron, manganese
End caps: PP
Gasket: Silicone
Body: HDPE
Post-filter: PP
Aquafilter FCCFE 10" Iron reducing and pH adjusting cartridge. Aquafilter FCCFE series cartridges are an effective and efficient solution for point-of-use and point-of-entry applications. Their undeniable benefit is ease of installation and changeout. Cartridges include pre- and post-filters preventing media particles from being washed out. Cartridges, are available in various capacities to meet the Customers demands. FCCFE was designed to allow optimal contact between water and the resin therefore ensuring maximum performance (iron and manganese removal). FCCFE utilizes NSF approved media which increase pH and reduce the concentration of iron and manganese in water. Iron in a concentration as low as 0,3 mg/l can become a source of yellow to dark-brown stains often found in sinks, toilets and other plumbing fixtures. If iron is present in detectable amounts it can ruin the taste of tea, coffee and beverages. Iron salts may irritate skin. Manganese is much more annoying than iron. Even low concentrations of this element ( > 0,05 mg/l) create dark-brown or black stains on everything with which it comes in contact. Both manganese and iron form deposits inside piping systems, which (after a while) may severely reduce flow.Specifications:
Media: NSF approved Birm and Corosex
Filter Life: 3-6 months
Size : 10" x 2 1/2"
Operating Pressure: 6 bar
Minimum Temperature: 2ºC
Maximum Temperature: 40°C
Contaminant Removal: iron, manganese
End caps: PP
Gasket: Silicone
Body: HDPE
Post-filter: PP
Aquafilter FCCBHD10BB 10" Big Blue ( 10"x 4 1/2") GAC coconut shell series cartridges have been our most popular carbon cartridges for years. GAC-type cartridges are designed such that water flows from bottom to top, ensuring long contact time, allowing for maximum adsorption and treatment. Utilizing a highly efficient longitudinal flow for greater carbon contact time, FCCBHD10BB is ideal where a long contact time allows for high chlorine as well as other organic reductions. Using a clean, water-washed NSF approved coconut shell activated carbon with a large mesh size, this granular range is primarily a chlorine, taste and odour reduction cartridge with the advantage of a post-filter pad to prevent carbon from being washed out and to avoid blockage if high particulate is present. According to internal laboratory studies cartridge removes 99% of free chlorine, 85% of certain pesticides, solvents, aromatic hydrocarbons, fenol, benzen and other organic compounds.Specifications
Media: FDA and NSF
approved Coconut Shell GAC
Filter Life : 6 -12 months
Size : 10” x 4 1/2”
Operating Pressure: 6 bar
Min. feedwater temp. 2°C
Max. feedwater temp. 55°C
Contaminant Removal: Chlorine, VOC's
End caps: PP
Gasket: Silicone
Body: HDPE
Post-filter: PP
Aquafilter FHPR12-B-AQ 1/2" BSP filter housing is dedicated for cold water on residential and commercial applications.FHPR12-B-AQ housings are compatible with a broad range of 2 1/2" x 10" type cartridges widely available on the market. FHPR12-B-AQ filter housing consist of a transparent sump and head with 1/2” inlet/outlet brass inserts and two O-rings (one placed around sump thread and the other inside filter head).A transparent sump allows for the evaluation of cartridge contamination.Heads are equipped with a pressure relief valve (providing ability to release air pressure collected during cartridge replacement procedure). Utilization of two O-rings ensures maximum leak-proof performance.The FHPR12-B-AQ housings can be mounted individually or connected in a seriesSpecifications:Clear sump: PETCap: PPInserts: brassPressure relief valve: brassO-ring: NBRNumber of orings: 2Thread: 1/2" BSPMaximum Pressure: 6 bar (90 psi)Minimum temperature: 2ºCMaximum temperature: 43°CFeatures:- High quality- NSF certified for structural integrity and material requirements- FDA CFR Title 21 Compliance- Factory Tested- Two O-rings for maximum leak proof protection- Domestic and commercial use- Ideal for POE or POU use- Full flow 1/2” BSP ports- Made in EU with High Performance Components
AQUAFILTER FCCEL20 cartridges are manufactured from durable polyester non-woven fabric. They contain no binders or cellulose and have been developed specifically for drinking and bottled water applications. In order to provide increased surface area and longer life, FCCEL20 series cartridges are pleated around a polypropylene core. The core gives the cartridges additional strength. The end caps are immersed in a vinyl plastisol which fuses these components together acting as both an endcap and a gasket. FCCEL20 series cartridges provide great sediment removal and dirt holding capacity to extend the time between cartridge changeouts. Cartridges are characterized by excellent sediment absorption of sand, silt, rust and suspended solids from potable water. In addition, these filter cartridges effectively protect boilers and pluming systems. Utilizing 100% synthetic media makes FCCEL20 series cartridges washable and reusable. If the cartridge becomes clogged you can easilly clean it by direct spray into pleats to dislodge sediment or let dry and brush off filter cake from surface of the media. FCCEL20 series cartridges are bacteria and chemical resistant. They are characterized with very low pressure drop.FCCEL20 series cartridges are typically used as a first stage of potable water filtration.Specifications:
Micron rating: 20
Lengths: 10"
Outer diameter: 2 1/2"
Inner diameter: 1,1"
Min. feedwater temp. 2°C
Max. feedwater temp. 60°C
Avg. Efficiency: 87%
Set contains
FCPS5 sediment cartridge
Premium FCCBL-S Silver Series activated carbon block cartridge with cation exchange based resin
FCCST Water softening cartridge
Stage 1Sediment filter removes sand, rust, silt and other sediments up to 5 micron
Stage 2Activated carbon block cartridge removes levels of Chlorine, Organic Compounds, Pesticides, Herbicides, Trihalomethanes and Volatile Organic Compounds (VOCs). Additionally, the cation exchange based resin water softening process is performed by the decrease of calcium and magnesium content, enhancing the obtaining of fresh and clean water.
Stage 3FCCST Water softening cartridge. Through its accurate media consisted of ion exchange-based resin, FCCST reduces calcium, magnesium and iron concentration. In case your feed water contains a high concentration of suspended matter. The softening effect takes place within the filter without adding any salt or chemicals into the water. The filter removes harmful substances and reduce limescale, prolonging life-span of your home appliances such as washing machine or dishwasher and saving you money.
Specifications
Maximum Operating Pressure: 6 bar (90 psi)
Minimum Temperature: 2ºC
Maximum Temperature: 40°C
Aquafilter FHPRN34-B1-AQ 3/4" BSP filter housing is dedicated for cold water on residencial and commercial applications.
FHPRN34-B1-AQ housings are compatible with a broad range of 2 1/2" x 10" type cartridges widely available on the market. FHPRN34-B1-AQ filter housing consist of a blue sump and head with 3/4” inlet/outlet brass inserts and two O-rings (one placed around sump thread and the other inside filter head).
Heads are equipped with a pressure relief valve (providing ability to release air pressure collected during cartridge replacement procedure). Utilization of two O-rings ensures maximum leak-proof performance.
Filter housing set includes: mounting bracket with screws, sediment cartridge (FCPS5 - 5 micron), wrench and bacteriostatic filter centralizing ring.
The FHPRN34-B1-AQ housings can be mounted individually or connected in a series
Specifications:Blue sump: PPCap: PPInserts: brassPressure relief valve: brassO-ring: NBRNumber of orings: 2Thread: 3/4" BSPMaximum Pressure: 6 bar (90 psi)Minimum temperature: 2ºCMaximum temperature: 43°C
Features:- High quality- NSF certified for structural integrity and material requirements- FDA CFR Title 21 Compliance- Factory Tested- Two O-rings for maximum leak proof protection- Domestic and commercial use- Equipped with filter bracket, wrench and cartridge- Ideal for POE or POU use- Full flow 3/4” BSP ports- Made in EU with High Performance Components
10” in-line set Big Blue type: Big Blue type filter housing, with blue sump and pressure relief valve, mounting bracket with screws, wrench, bacteriostatic filter centralizing ring, instruction and colour box. Available with: 1", 1 1/4", 1 1/2" BSP connection. Head is equipped with pressure relief valve which enables release of air accumulated after cartridge replacement.

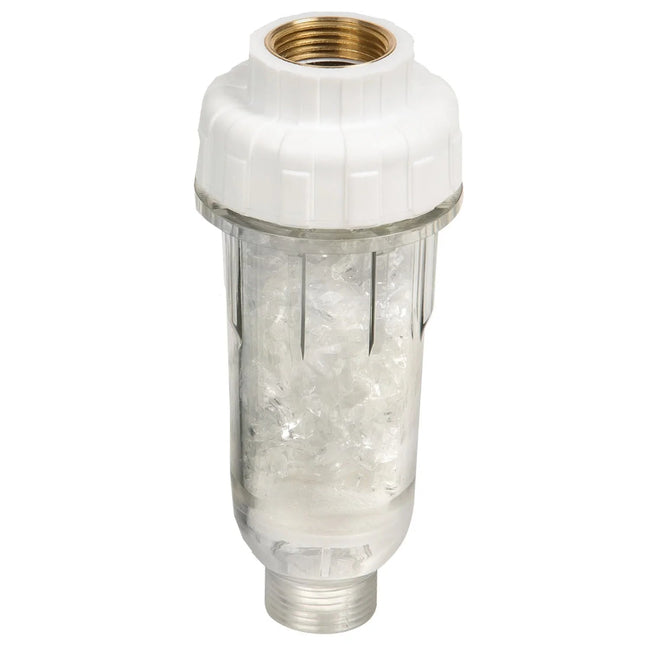

Aquafilter FHPRA series - washing machine filter. Are filled with polyphosphate, antiscale and anti-lime media. Polyphosphate prevents scale by reacting with dissolved hardness minerals (e.g. calcium carbonate and calcium bicarbonate) and transforming them into harmless, microscopic crystals of calcium orthophosphate.
These crystals stay suspended in water and will not create scale build-up in heating elements, pipes, water heaters, boilers, etc. Moreover polyphosphate helps to deal with iron and all the problems which it causes. Polyphosphates do not remove iron from water. Rather they stabilize and disperse the iron so that the water remains clear and does not produce iron stains. The FHPRA series filter cartridges require very little maintenance, no backwashing and no salt.
Cartridges include pre- and post-filters preventing media particles from being washed out. FHPRA is designed for use with cold tap water. This filter should be installed between water supply valve and washing machine using connection adapter 3/4"male x 3/4" FIP.
