Filtration applications are typically defined by the performance characteristics of the filter cartridge being used, however selecting the right filter housing can optimize and enhance the results achieved from different cartridges. Several factors are important to consider when selecting housings such as system operating pressure, flow rate and pipework requirements, application temperature, chemical compatibility and the housing location/environment.

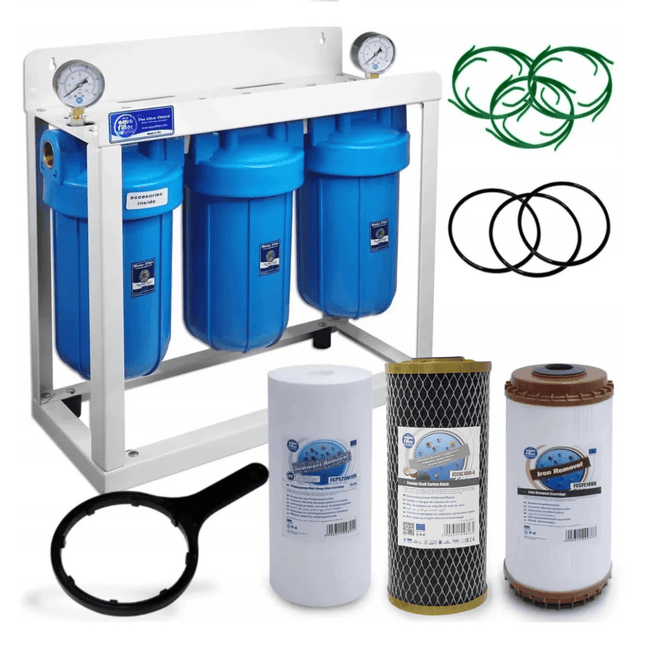

3 Stage Big Blue 10" Water purifier cechlorinator and iron reducing filter kitKit contains:
3 Stage 10" Big Blue water filter housing with 1” BSP port
3 x Bacteriostatic centering disc - BACINIX Technology
2 x Pressure gauge
Metal platform
Housing wrench
FCPS5M10B sediment cartridge
FCCBL10BB-G gold series carbon block
FCCFE10BB iron reducing cartridge
Specifications:Housing: PPCap: PPInserts: brassPressure relief valve: brassNo. of pressure gauge: 2O-ring: NBRThread: 1" BSPOperating Pressure: 6 barMaximum Flow: 110 lpmMinimum Temperature: 2ºCMaximum Temperature: 45°CDimensions (H x W x L): 540 mm x 540 mm x 220 mm

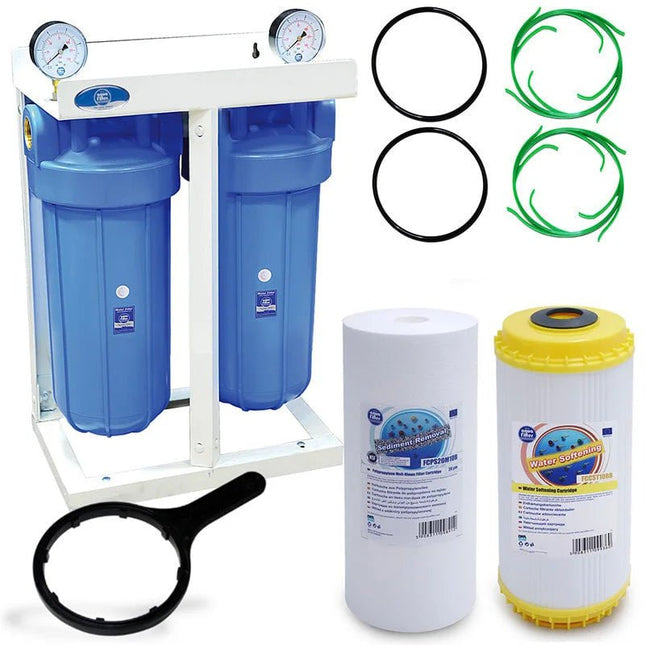

2 Stage 10" Big Blue Water purifier and softener filter kitKit contains:
2 Stage 10" Big Blue water filter housing with 1” BSP port
2 x Bacteriostatic centering disc - BACINIX Technology
2 x Pressure gauge
Metal platform
Housing wrench
FCPS5M10B sediment cartridge
FCCST10BB Water softening and iron reducing cartridge
Specifications:Housing: PPCap: PPInserts: brassPressure relief valve: brassNo. of pressure gauge: 2O-ring: NBRThread: 1" BSPOperating Pressure: 6 barMaximum Flow: 110 lpmMinimum Temperature: 2ºCMaximum Temperature: 45°CDimensions (H x W x L) : 540 mm x 350 mm x 220 mm

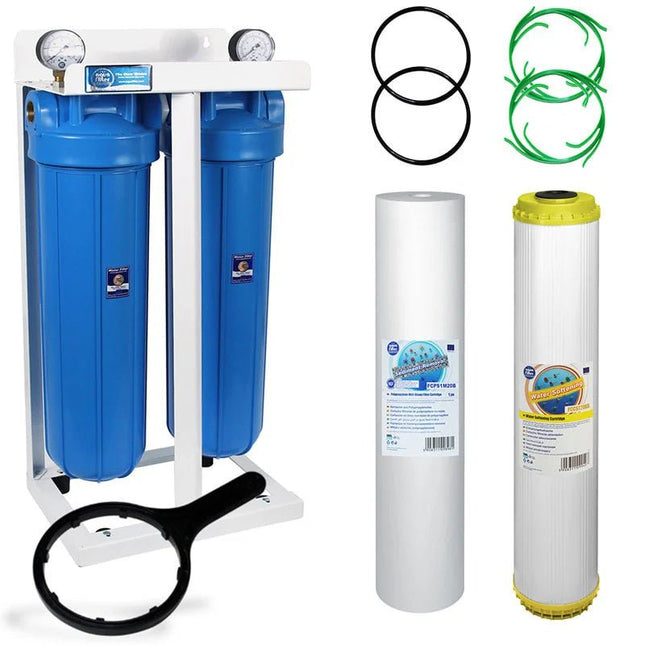

2 Stage 20" Big Blue Water purifier and softener filter kitKit contains:
2 Stage 20" Big Blue water filter housing with 1” BSP port
2 x Bacteriostatic centering disc - BACINIX Technology
2 x Pressure gauge
Metal platform
Housing wrench
FCPS5M20B sediment cartridge
FCCST20BB Water softening and iron reducing cartridge
Specifications:Housing: PPCap: PPInserts: brassPressure relief valve: brassNo. of pressure gauge: 2O-ring: NBRThread: 1" BSPOperating Pressure: 6 barMaximum Flow: 210 lpmMinimum Temperature: 2ºCMaximum Temperature: 45°CDimensions (H x W x L): 785 mm x 350 mm x 220 mm

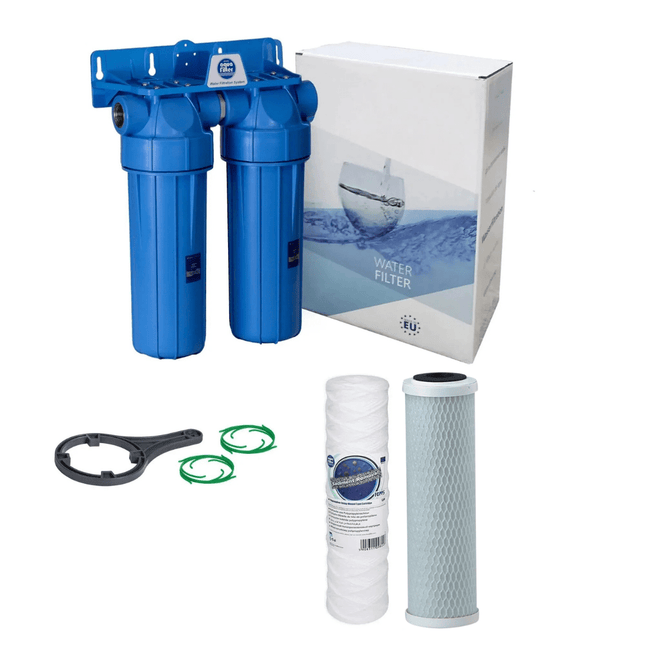

Optimal Water Filtration
Upgrade your water purification system with the 2 Stage 10 Water Purifier and Dechlorinator Filter Kit. This top-of-the-line kit includes a 1/2" filter for efficient removal of impurities, ensuring clean and healthy drinking water for you and your family. Experience superior taste and odor reduction with this advanced filtration system.
Advanced Dechlorination Technology
Say goodbye to chlorine and other harmful chemicals in your water with our innovative dechlorinator filter. This 2-stage filtration process effectively removes chlorine and other contaminants, providing you with crystal-clear water that is free from any unpleasant taste or odor. Enjoy peace of mind knowing that your water is safe and clean with this premium filter kit.
Easy Installation and Maintenance
Designed for easy installation and minimal maintenance, the 2 Stage 10 Water Purifier and Dechlorinator Filter Kit is the perfect solution for busy households. Simply replace the filter cartridge as needed to maintain optimal performance. With this convenient kit, you can enjoy fresh, clean water with minimal hassle.
Aquafilter filter housing FHPRN34-B-TRIPLE 3/4" BSP three stage system with three blue filter heads with 3/4" BSP brass inserts, and three blue filter housing sumps, wrench and color box.Set includes:FHPRN34-B-TRIPLE 3/4" BSP system, wrench, 3 bacteriostatic centering rings, instruction and color box.Specifications:Thread Diameter: 3/4” BSPWorking Temp.: 2°C - 43°CWorking pressure: 6 bar (90 PSI)Clear Filter Housing (Sump) - Material: PETFilter Housing Cap - Material: PPNumber of O-rings inside filter housing head: 2Pressure Relief Valve: Yes
Accepting 20" length in large diameter (BB) cartridges, these extra-large housings allow for greater capacity, reducing both the number of vessels required for high flow rate applications and cartridge changeout frequency. Big Blue housings are compatible with a broad range of chemicals due to their all-polypropylene construction.
Pentair Big Clear Filter Housings offer the versatility to meet all of your large capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are available in both 10" and 20" lengths.Big Clear Filter Housings offer on-site examination of flow, performance, and cartridge life and are ideal for a variety of applications. The 1" polypropylene caps are available with a pressure-relief button on the inlet side to relieve pressure inside the housing and are available in 10" and 20" lengths.Caps are constructed of reinforced polypropylene. The 10" sumps are made of Lexan® and the 20" sumps are SAN (Styrene acrylonitrile)Features, Options, & Benefits
Large capacity housing suitable for high flow applications
Available in 10" and 20" lengths
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
•Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar

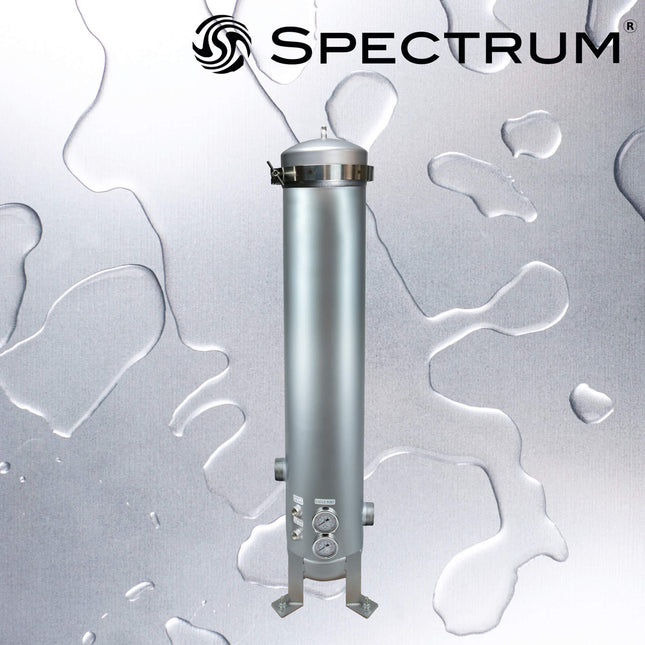

Manufactured from polycoated 316L stainless steel, the Standard range of multi-round filter housings uses an industry standard V-band clamp to secure the head. The housings have threaded ports and they come supplied complete with a universal cartridge plate.
The Standard range is capable of operating up to 700lpm, with flow rates beyond this capacity requiring the Premier range. From the 7 x 40″ housing down to the 3 x 10″, these smaller vessels do not require the additional heavy duty features of the Premier range, such as Davit assemblies and swing-bolt lids. With gauge ports, drain ports and a universal cartridge adaptor to accept AA, DOE and 222 end capped cartridges, this range offers a competitive solution for smaller flow rate applications.
Key Product Features
V-Clamp closure for a secure seal
Universal cartridge adaptors securely hold 222, DOE or AA cartridges
Drain ports allow for quick and easy cartridge changeout
Gauges ports come fitted with 316L plugs when gauges are not required
Technical Data
SPECTRUM Inox 3/5/7 Standard Filter Housings Technical Data Sheet
Drawings
SPECTRUM Inox Standard Filter Housing 3 Round DrawingSPECTRUM Inox Standard Filter Housing 5 Round DrawingSPECTRUM Inox Standard Filter Housing 7 Round Drawing
Enhanced Water Filtration
Upgrade your water purification system with the 2 Stage 10" Water Purifier and Anti-Scale Filter Kit. This kit includes a dual-stage filtration system that effectively removes impurities and contaminants from your water supply, ensuring clean and pure drinking water for you and your family. Say goodbye to unpleasant tastes and odors in your water with this advanced filtration technology.
Anti-Scale Technology
Prevent limescale buildup in your household appliances and plumbing with the anti-scale filter included in this kit. The innovative design of the filter inhibits scale formation by trapping minerals and preventing them from adhering to surfaces. Enjoy longer-lasting appliances and improved water flow with this essential addition to your water purifier system.
Easy Installation
Designed for quick and easy installation, the 3/4" kit is compatible with most standard water supply systems. Simply follow the included instructions for hassle-free setup and start enjoying the benefits of cleaner, scale-free water in no time. Invest in the health and longevity of your home by upgrading to the 2 Stage 10" Water Purifier and Anti-Scale Filter Kit today.
Advanced Water Filtration
The 2 Stage 10" Water purifier and anti-scale filter kit offers cutting-edge water filtration technology for your home. With a two-stage filtration process, this kit effectively removes contaminants, sediments, and impurities from your water, ensuring that you have access to clean and purified water for drinking, cooking, and everyday use.
Efficient Anti-Scale Function
Not only does this kit purify your water, but it also features an anti-scale filter to prevent limescale build-up in your plumbing and appliances. The anti-scale filter effectively reduces the mineral content in your water, helping to extend the lifespan of your pipes, faucets, and water-using appliances. Say goodbye to costly repairs and maintenance due to scale build-up.
Easy Installation and Maintenance
Designed for easy installation, the 2 Stage 10" Water purifier and anti-scale filter kit can be quickly set up without the need for professional help. Additionally, the filters are easy to replace, ensuring that your water filtration system remains at its optimal performance. Keep your family safe and healthy with this convenient and reliable water purification solution.
