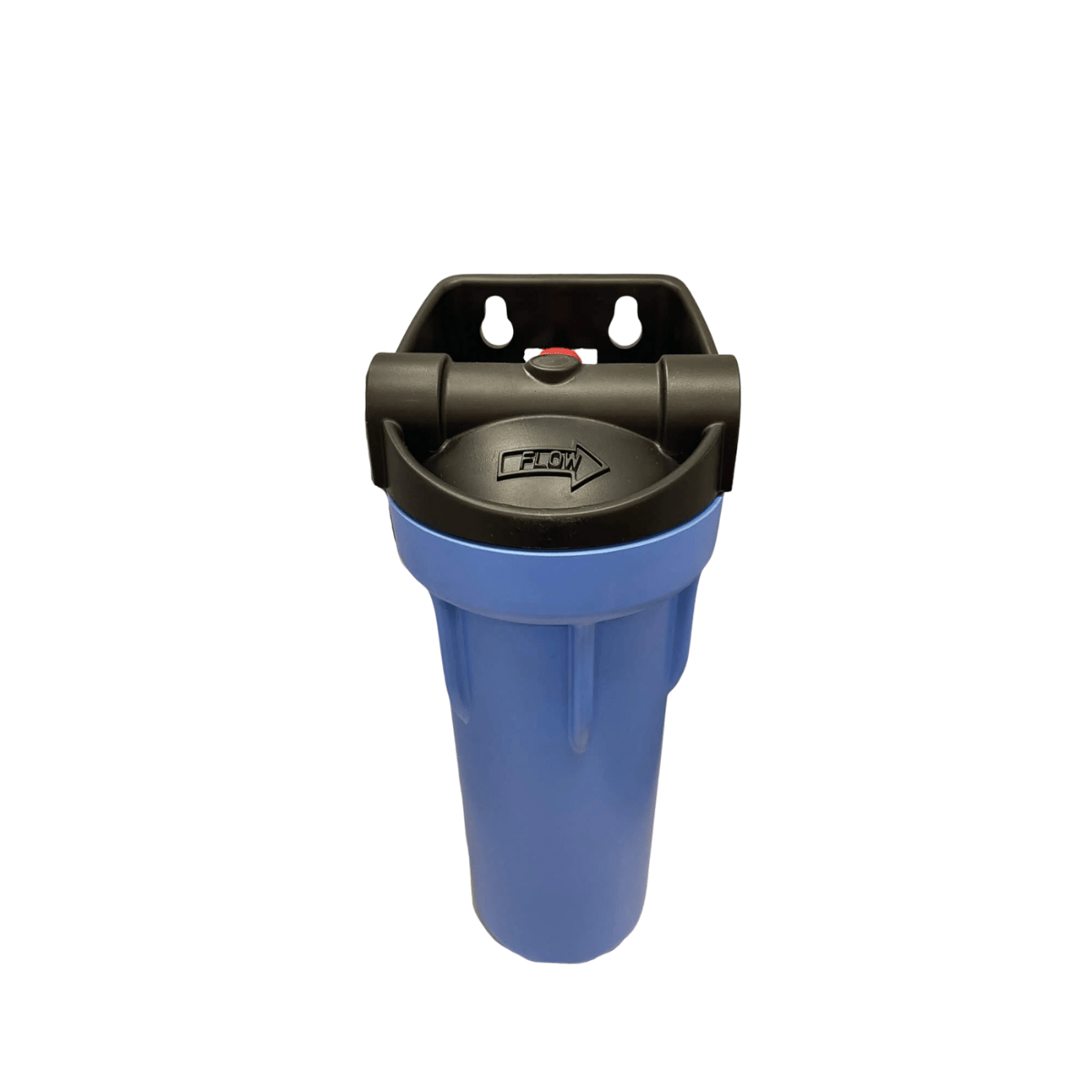

Pentair Pentek 3G Standard Series Housings feature integral brackets, 20" clear housings, and caps for differential pressure gauges. They accept standard double open end (DOE) and our O-ring sealing cartridges. The O-ring design offers enhanced cartridge sealing for critical cartridge applications.

3G Standard Filter Housings are manufactured from durable polypropylene or clear Styrene-Acrylonitrile (SAN). Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications. Clear sumps are manufactured from Styrene-Acrylonitrile (SAN). They offer on-site examination of the cartridge and have excellent chemical compatibility.

All are equipped with 3/4" BSP inlet and outlet ports. 3G Standard Filter Housings are available in 10" and 20" lengths and will accommodate a wide range of 2-1/4" to 3-1/8" diameter cartridges.

Features, Options, & Benefits

• Integral bracket and mounting boss cap version available
• Available in 10" and 20" sumps in clear and opaque
• Buttress threads and uniform walls for easier cartridge change and improved strength
• Accepts CG o-ring sealing cartridges as well as standard DOE cartridges
• Optional pressure-relief/bleed button and differential pressure gauge
• Leak-proof sealing with top-seated floating Buna-N O-ring

Specifications

• Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
• Cap - Reinforced polypropylene
• Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
• Temperature Rating - 4.4-51.7°C
• Maximum Pressure - 125 psi (8.6 bar)
