• Balance technology enriches water with magnesium and calcium for a refreshing, healthy taste
• Consistent mineral content of 60-80 ppm ensures optimal water quality
• AquaGreen technology reduces water waste with a 50% recovery rate
• Reverse osmosis ensures safe, contaminant-free water, suitable for all ages
• Optimized for performance in low-pressure water supply systems
• Durable metal frame for stability and easy maintenance
• NSF/ANSI 58 certified components guarantee the safety of the materials used in the filters (plastic components are BPA-free)

How it Works

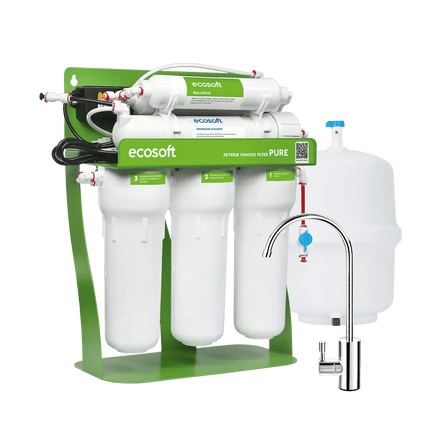

Ecosoft  PURE Balance reverse osmosis system with a pump is a comprehensive water purification solution designed to provide clean, safe, and great-tasting water for your home. By employing multiple advanced filtration stages and leveraging pump technology for enhanced performance, this system ensures optimal water quality even under challenging conditions, such as low water pressure. Here's a detailed look at how it works:

1. Mechanical prefiltration (sediment cartridge)

The first stage traps large particles like sand, silt, and rust, protecting the system from potential blockages and damage.

2. Carbon filtration (activated carbon cartridge)

This stage removes chlorine and its compounds, improving water taste and odour while protecting downstream filtration elements from chemical degradation.

3. AquaGreen cartridge

A specialized filtration step designed to shield the reverse osmosis membrane by reducing the build-up of scaling substances, thus extending the system’s lifespan and ensuring efficient operation.

4. Ecosoft reverse osmosis membrane

The heart of the system, this membrane removes up to 99.8% of dissolved contaminants, including heavy metals, nitrates, pesticides, bacteria, and viruses, providing water of the highest purity.

5. Balance cartridge (mineralization)

This vital stage enriches the purified water with essential minerals like calcium and magnesium, creating a balanced, pleasant taste while supporting healthy hydration.

6. Carbon postfilter (taste enhancement)

The final stage polishes the purified water, further improving its taste and smell for an enjoyable drinking experience.

Through these carefully engineered filtration stages, the PURE Balance reverse osmosis filter delivers safe, clean, and mineral-rich water directly to your tap, ensuring the best hydration experience for your family.

Specification

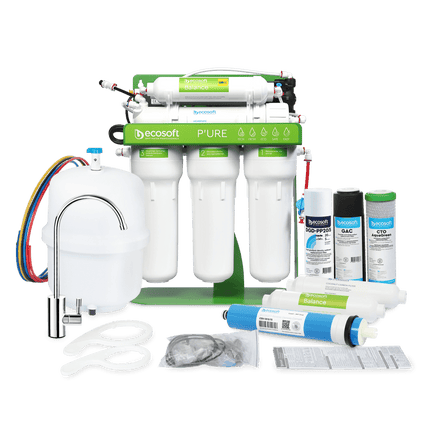

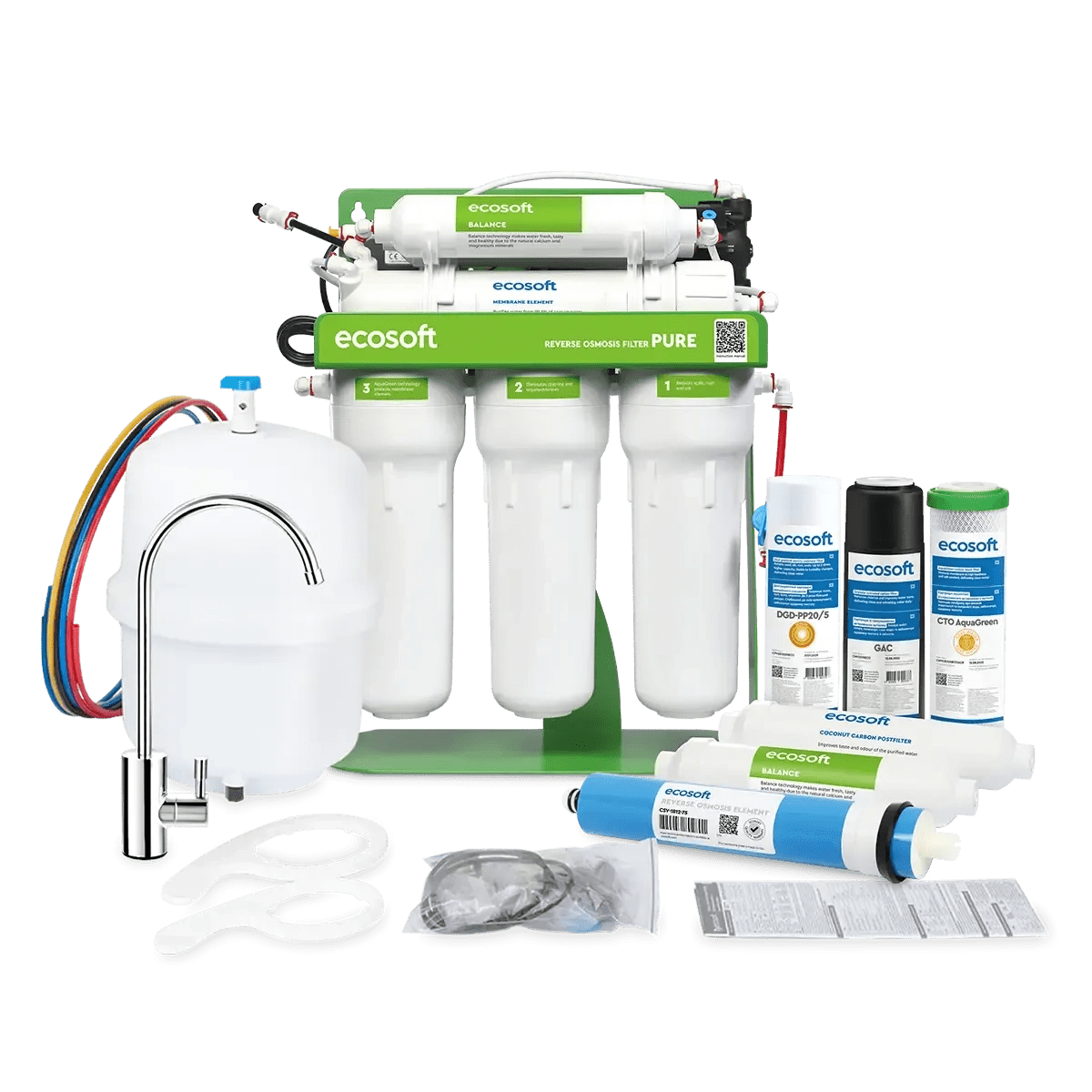

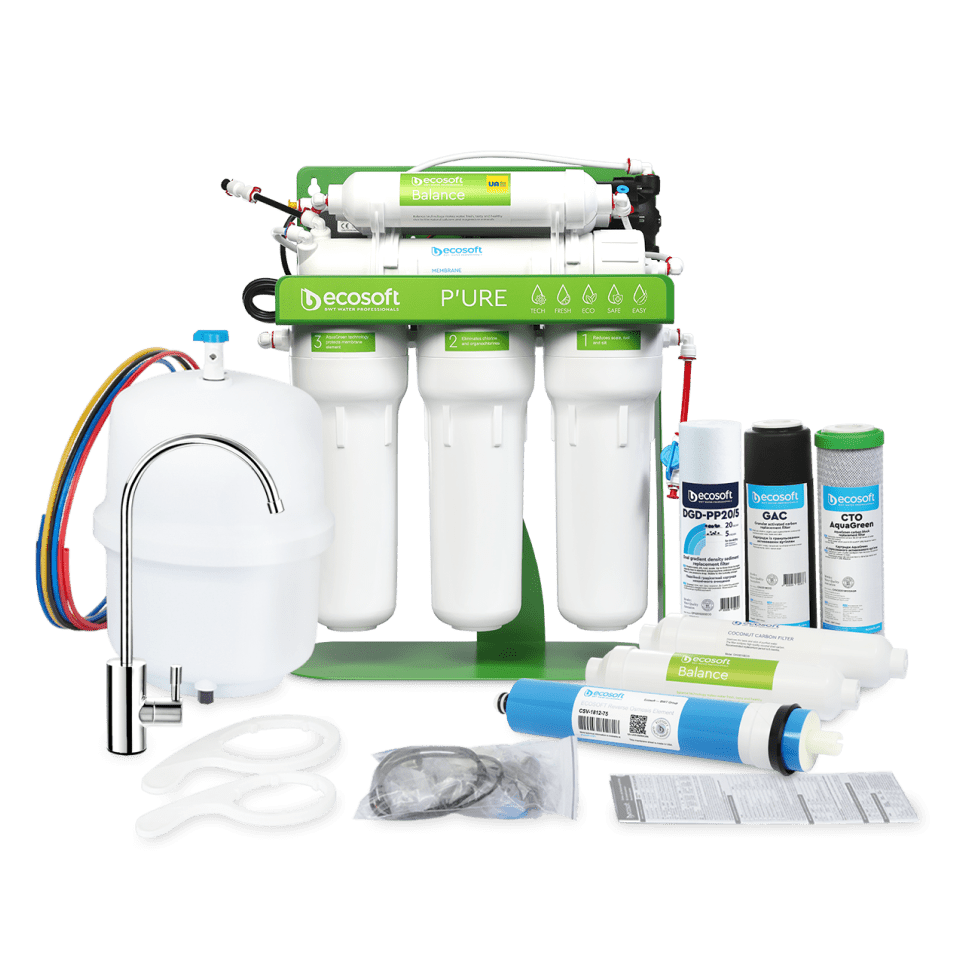

System components

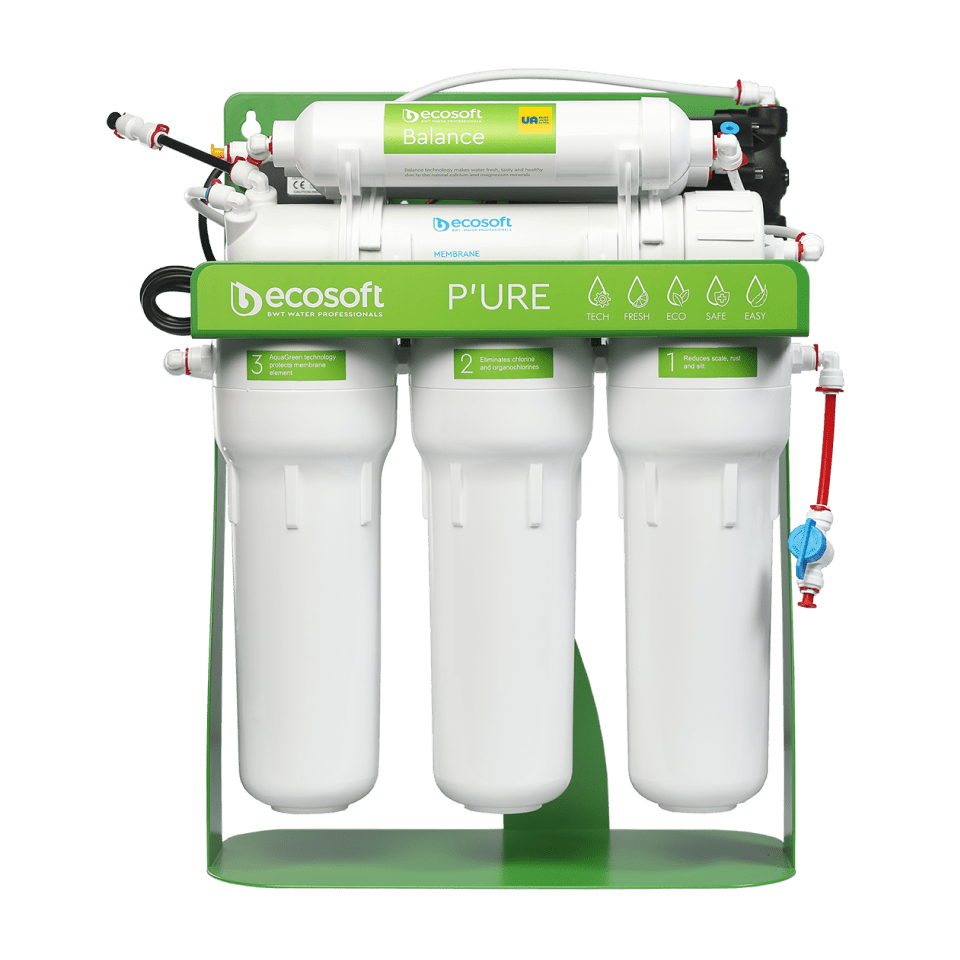

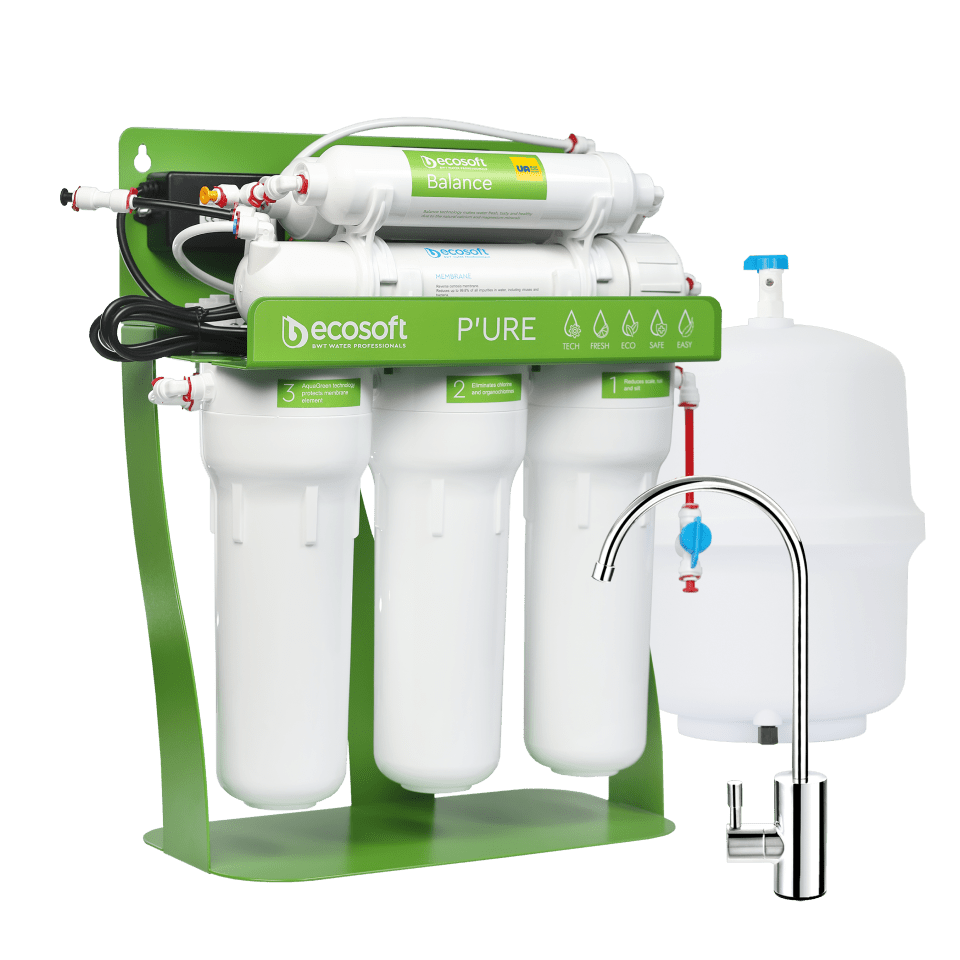

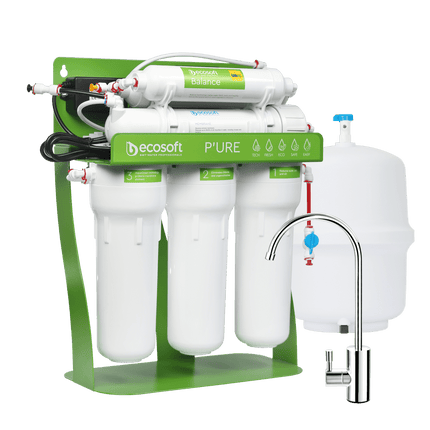

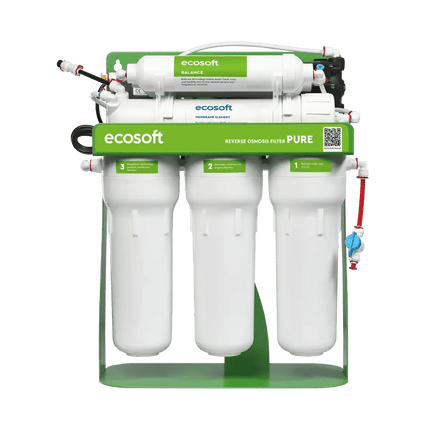

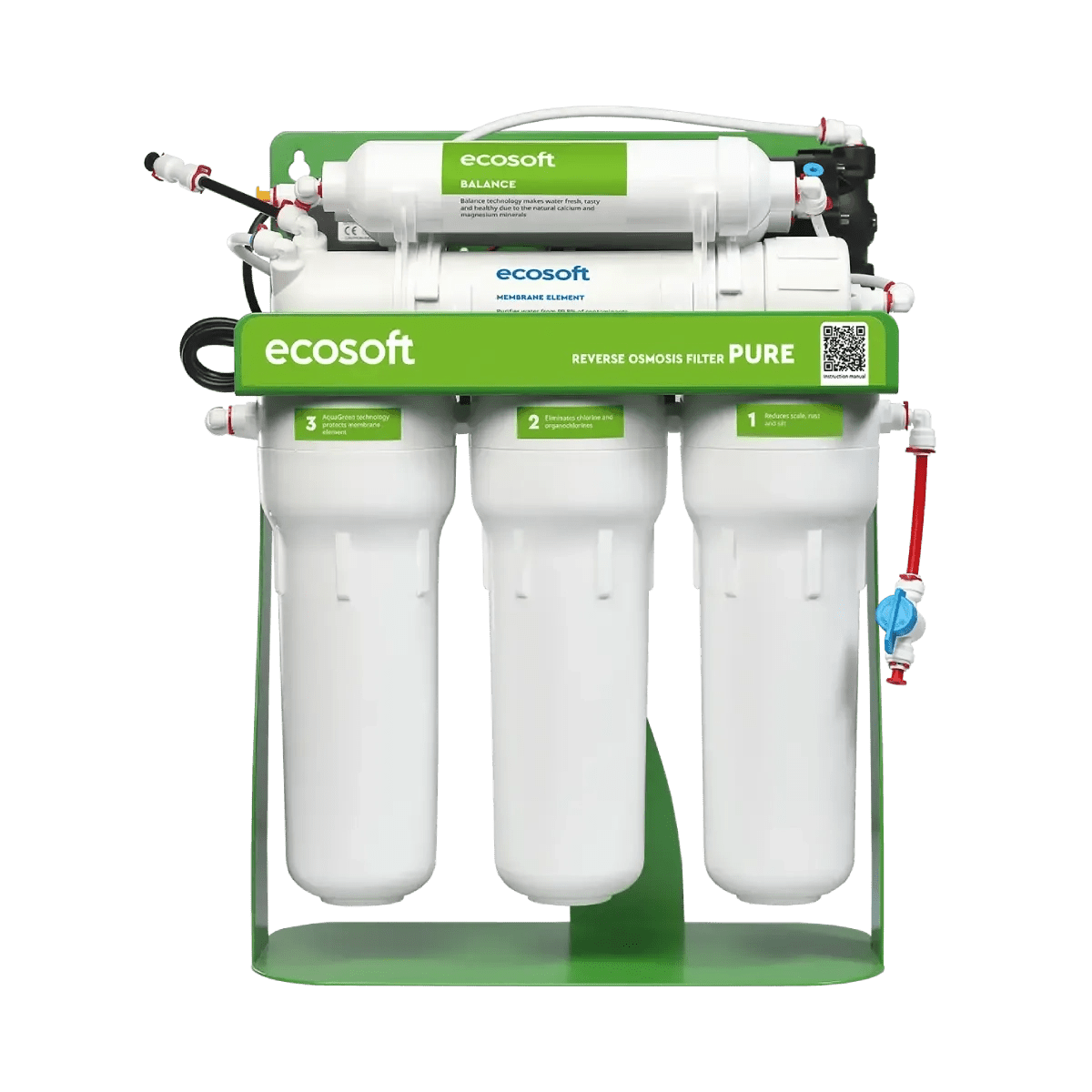

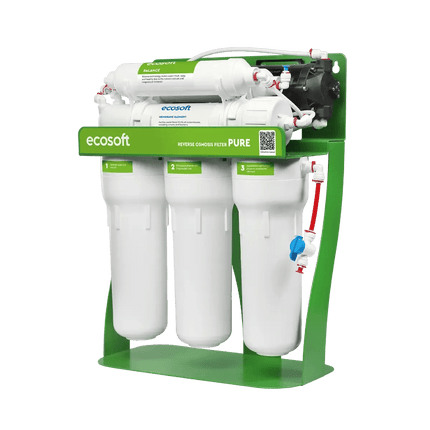

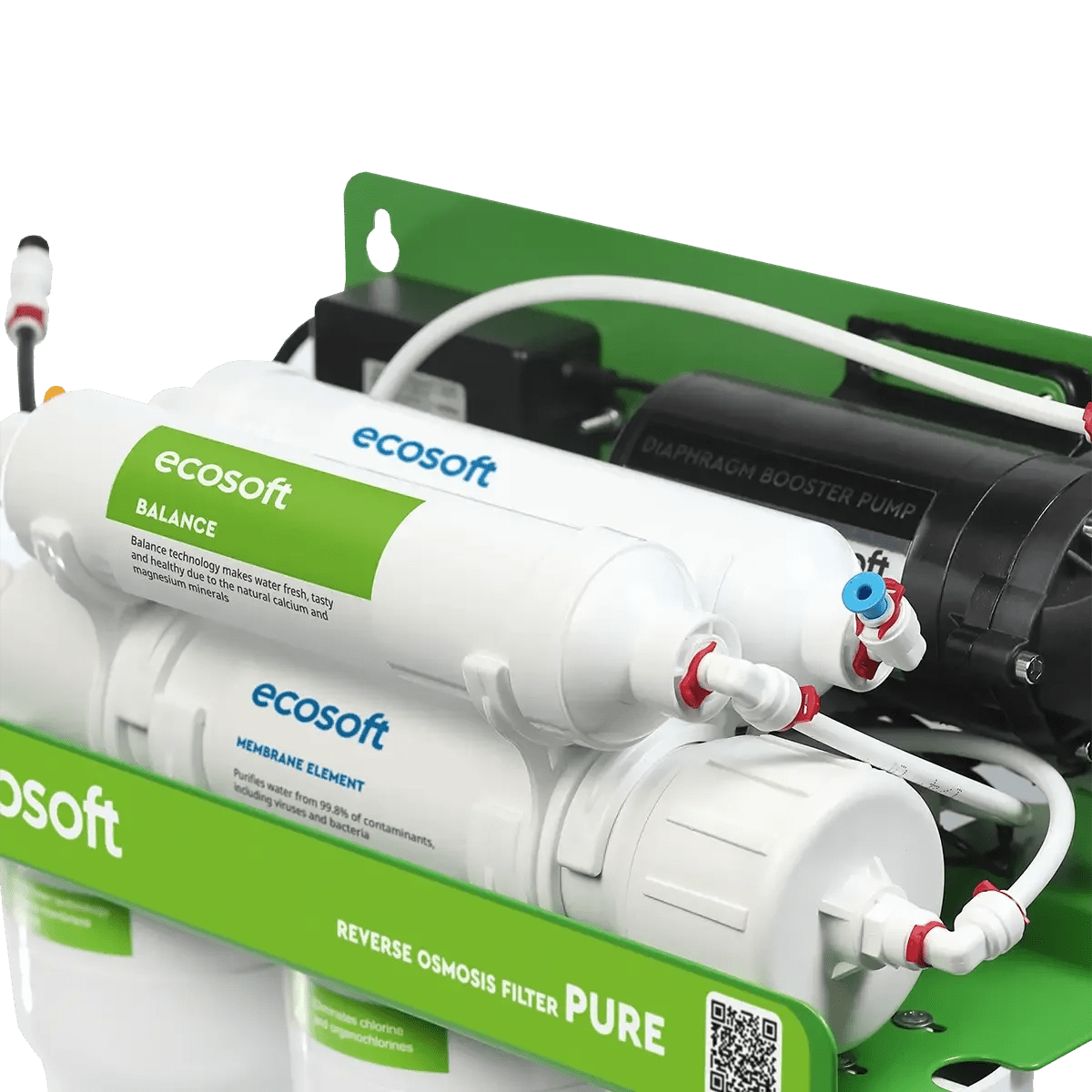

• Filter housing with pump on metal rack
• Pre-filters for PURE Balance reverse osmosis filter
• Membrane element 75 GPD (280 LPD)
• Ecosoft carbon post-filter for reverse osmosis filter
• Balance mineralization filter
• ‘Modern’ ball valve faucet for purified water
• Plastic pressure tank (total vol. 12 L, usable vol. up to 7 L, BPA-free) and tank valve

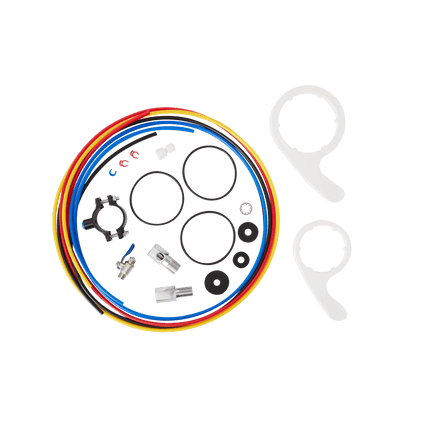

• Feed water adapter, feed valve, drain saddle
• Pack of color tubes (4 pcs) for convenient filter installation
• Service wrenches
• User manual

Filtration technology

• Dual gradient density sediment replacement filter.
• Granular Activated Carbon (GAC) coconut shell filter.
• AquaGreen filter for efficient water recovery and reduced waste.
• 75 GPD RO membrane element.
• Balance mineralization filter for consistent calcium and magnesium levels.
• Coconut shell carbon post-filter for enhanced taste and odor removal.

Quality of mineralized water*

• pH: 7-8,5
• Total mineral content: 60-80** ppm
• Calcium: 10-15 ppm
• Magnesium: 4-6 ppm
• Sodium + potassium: <5 ppm
• Hydrocarbonates: 30-60 ppm
• Chlorides: <5 ppm

* The indicators are determined under the following conditions: inlet water temperature is 20 °С, outlet water composition and filter operation parameters correspond to the recommended by the manufacturer, water consumption intensity is appropriate for a family of three. When the inlet water temperature decreases in winter, the mineral content in the treated water may be lower, and when the temperature increases in summer, it may be higher.

** After one hour’s or more standing time, the mineral concentration in the first glass of water may exceed the stated value.

Source water requirements

• pH: 6.5–8.5
• Total dissolved solids: ≤ 1500 ppm
• Hardness: <500 ppm CaCO₃
• Chlorine: ≤ 0.5 ppm
• Total iron: ≤ 0.3 ppm
• Manganese: ≤ 0.1 ppm
• Chemical oxygen demand: ≤ 5 ppm O₂
• Total microbial count (TMC): ≤ 50 CFU/100 ml
• Coliform index: ≤ 3

Service

To ensure the Ecosoft PURE Balance filter operates at its peak efficiency, regular replacement of filtration elements is essential. Proper maintenance guarantees high-quality purified water and extends the service life of your filter system. Below is a detailed schedule and recommendations for cartridge replacement:

Cartridge replacement schedule:

• PURE Balance set of 5 replacement filters — designed for 6 months.
• PURE Balance set of 6 replacement filters — designed for 12 months.
• Ecosoft 75 GPD membrane element — Replace every  12 months, or earlier depending on water quality.
  This element is crucial for removing dissolved salts, heavy metals, and other impurities from water.

 If you plan not to use your filter for an extended period, it’s recommended to shut off the water supply to prevent damage and maintain filter efficiency.

By following this maintenance schedule and using authentic Ecosoft replacement parts, you ensure continuous access to safe, great-tasting water without worries.
