Filtration applications are typically defined by the performance characteristics of the filter cartridge being used, however selecting the right filter housing can optimize and enhance the results achieved from different cartridges. Several factors are important to consider when selecting housings such as system operating pressure, flow rate and pipework requirements, application temperature, chemical compatibility and the housing location/environment.

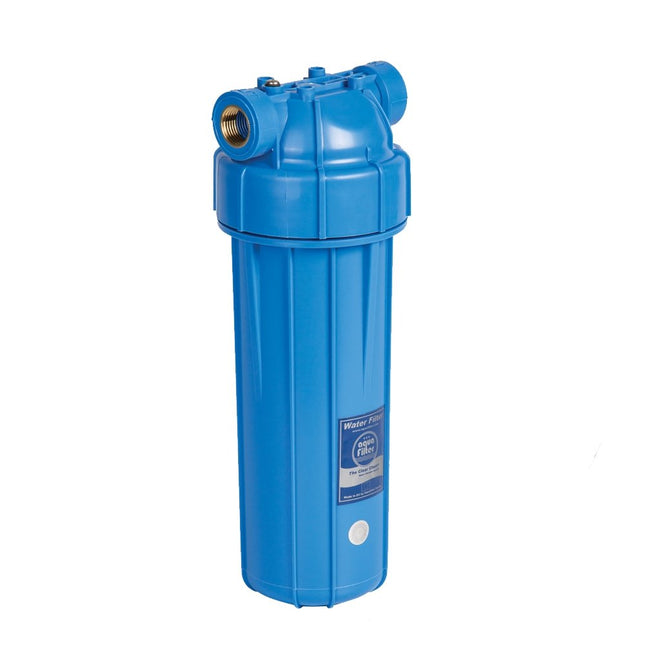

Three-pieces line (head-nut-bowl) are designed for water purification for residential and commercial applications. The bowl is made of PET material, which guarantees reliability and durability. They are equipped with a plastic breather valve.
Technical specifications
Materials: bowl: polyethylene (PET); head - polypropalene (PP) with brass connection units
Clamping: threaded
O-ring: EPDM
Max. working pressure: 8 bar
Max. working temperature: from 5°C (41°F) to 50°C (122°F)
Bracketing: horizontal
Connection: screw thread in inch
Package: empty housing without filter cartridge
Pentair Big Clear Filter Housings offer the versatility to meet all of your large capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are available in both 10" and 20" lengths.Big Clear Filter Housings offer on-site examination of flow, performance, and cartridge life and are ideal for a variety of applications. The 1" polypropylene caps are available with a pressure-relief button on the inlet side to relieve pressure inside the housing and are available in 10" and 20" lengths.Caps are constructed of reinforced polypropylene. The 10" sumps are made of Lexan® and the 20" sumps are SAN (Styrene acrylonitrile)Features, Options, & Benefits
Large capacity housing suitable for high flow applications
Available in 10" and 20" lengths
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
•Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar
Standard Filter Housings are manufactured of a durable polypropylene or clear Styrene-Acrylonitrile (SAN). All are equipped with 3/4" NPT inlet and outlet ports. Standard Filter Housings are available in both 10" and 20" lengths and will accommodate a wide range of 2-1/2" to 2-7/8" diameter cartridges. The reinforced polypropylene cap offers an optional pressure relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges.Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications. Clear sumps offer on-site examination of the cartridge.Opaque Standard Filter Housings are moulded from rugged reinforced polypropylene. They offer outstanding chemical compatibility and are ideal for use in a variety of low-flow applications.Clear Standard Filter Housings offer on-site examination of flow, performance, and cartridge life. They are ideal for a variety of applications.Features, Options, & Benefits
Ideal for a wide range of applications, including residential, commercial and industrial
Available in 10" and 20" lengths
Optional pressure relief/bleed button on inlet side of cap
Thick walls for increased strength
Leak-proof sealing with top-seated Buna-N O-ring
Available with clear or opaque sumps
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainlesssteel, EPDM, and polypropylene
Temperature Rating - 4.4-51.7°C
Maximum Pressure - 125 psi (8.6 bar)
NSF CertificationsThe 150001, 150002, 150067, 150068, 150071, 150072, 150435 and 150436 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.Part numbers: 150071, 150072, 150435, 150436, 150106, 150096
Pentair Pentek 3G Standard Series Housings feature integral brackets, 20" clear housings, and caps for differential pressure gauges. They accept standard double open end (DOE) and our O-ring sealing cartridges. The O-ring design offers enhanced cartridge sealing for critical cartridge applications.3G Standard Filter Housings are manufactured from durable polypropylene or clear Styrene-Acrylonitrile (SAN). Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications. Clear sumps are manufactured from Styrene-Acrylonitrile (SAN). They offer on-site examination of the cartridge and have excellent chemical compatibility.All are equipped with 3/4" BSP inlet and outlet ports. 3G Standard Filter Housings are available in 10" and 20" lengths and will accommodate a wide range of 2-1/4" to 3-1/8" diameter cartridges.Features, Options, & Benefits
Integral bracket and mounting boss cap version available
Available in 10" and 20" sumps in clear and opaque
Buttress threads and uniform walls for easier cartridge change and improved strength
Accepts CG o-ring sealing cartridges as well as standard DOE cartridges
Optional pressure-relief/bleed button and differential pressure gauge
Leak-proof sealing with top-seated floating Buna-N O-ring
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Temperature Rating - 4.4-51.7°C
Maximum Pressure - 125 psi (8.6 bar)
Manufactured from polycoated 316L stainless steel, the Standard range of multi-round filter housings uses an industry standard V-band clamp to secure the head. The housings have threaded ports and they come supplied complete with a universal cartridge plate.
The Standard range is capable of operating up to 700lpm, with flow rates beyond this capacity requiring the Premier range. From the 7 x 40″ housing down to the 3 x 10″, these smaller vessels do not require the additional heavy duty features of the Premier range, such as Davit assemblies and swing-bolt lids. With gauge ports, drain ports and a universal cartridge adaptor to accept AA, DOE and 222 end capped cartridges, this range offers a competitive solution for smaller flow rate applications.
Key Product Features
V-Clamp closure for a secure seal
Universal cartridge adaptors securely hold 222, DOE or AA cartridges
Drain ports allow for quick and easy cartridge changeout
Gauges ports come fitted with 316L plugs when gauges are not required
Technical Data
SPECTRUM Inox 3/5/7 Standard Filter Housings Technical Data Sheet
Drawings
SPECTRUM Inox Standard Filter Housing 3 Round DrawingSPECTRUM Inox Standard Filter Housing 5 Round DrawingSPECTRUM Inox Standard Filter Housing 7 Round Drawing
Ecosoft Standard 3-Stage Filter is a compact, efficient under-sink water purification system designed for households that want better everyday tap water. Its three-stage process effectively reduces chlorine, sediment, iron, manganese, and other common impurities, improving both taste and safety. The second stage features Ecomix softening media, which protects kettles and appliances from scale buildup – a key advantage for homes with hard water.
Delivering 1 L of purified water per minute, it ensures a steady supply for drinking, cooking, and hot beverages. The system installs easily in just 15 minutes, requires no electricity, and operates continuously. Long-life cartridges help lower maintenance frequency, while minimal plastic waste supports eco-friendly use. Affordable and reliable, the Standard 3-Stage Filter is a practical choice for families seeking fresher, better-tasting water every day.
Please note that cartridges are not included
Service and Maintenance
The Ecosoft Standard 3-Stage water filter is designed for treating only cold tap water.
Cartridge replacement
To ensure high-quality drinking water, replace the cartridges as a set every 6 months, regardless of the volume of water filtered.
For an easy cartridge replacement, check our video guide.
Compatible replacement sets:
Ecosoft set of replacement filters for 3-stage water filters
Ecosoft advanced set of replacement filters for 3-stage water filters
Replacement process
Use the service wrench, included with the filter, to unscrew the filter housings.
Note: The service wrench is for unscrewing only. Screw the housings back manually without using the wrench.
Extended downtime
If you do not plan to use the filter for a long period, turn off the water supply to the system.
For interruptions longer than two weeks, disinfect the filter before resuming use (detailed instructions are provided in the manual).
The SPECTRUM INOX Standard SFH Housing is engineered to meet the rigorous demands of high-pressure and high-temperature applications. This housing offers a superior alternative to conventional plastic models, ensuring optimal performance with greater fluid compatibility and industrial-grade durability.
Key Features
Versatile Cartridge Compatibility: Supports both radial and longitudinal flow cartridges, with a spring-loaded seal plate accommodating cartridge lengths from 9¾” to 30”.
Durable Construction: Crafted from 316L stainless steel, providing enhanced corrosion resistance and longevity in industrial settings.
Efficient Design: Equipped with a threaded ring-nut closure for secure connections, and a ¼” drain for easy drainage without requiring significant ground clearance.
Benefits
Durability: Built to withstand the extreme conditions of industrial environments, ensuring long-lasting and reliable performance.
Ease of Installation: Comes with mounting bosses, a bracket kit, and a locking ring closure tool for straightforward setup.
Application Flexibility: Compatible with Double Open-Ended AA and 213 internal O-ring cartridges, allowing for a wide range of applications.
Technical Details
Material: 316L stainless steel ensures high corrosion resistance.
Seal Types: Features a head accommodating a 213 O-ring seal, with a spring-loaded knife-edge seal for various cartridge lengths.
Cartridge Compatibility: Supports cartridge lengths from 9¾” to 30”.
Applications
Ideal for commercial filtration, high-temperature installations, and high-pressure applications, the SPECTRUM INOX Standard SFH Housing is designed for use in demanding industrial environments. Its robust construction and versatile design make it the perfect choice for applications requiring reliable and efficient filtration solutions. Whether in commercial or industrial settings, this housing delivers exceptional performance and durability.
The SPECTRUM INOX Standard SFH Housing is engineered to meet the rigorous demands of high-pressure and high-temperature applications. This housing offers a superior alternative to conventional plastic models, ensuring optimal performance with greater fluid compatibility and industrial-grade durability.
Key Features
Versatile Cartridge Compatibility: Supports both radial and longitudinal flow cartridges, with a spring-loaded seal plate accommodating cartridge lengths from 9¾” to 30”.
Durable Construction: Crafted from 316L stainless steel, providing enhanced corrosion resistance and longevity in industrial settings.
Efficient Design: Equipped with a threaded ring-nut closure for secure connections, and a ¼” drain for easy drainage without requiring significant ground clearance.
Benefits
Durability: Built to withstand the extreme conditions of industrial environments, ensuring long-lasting and reliable performance.
Ease of Installation: Comes with mounting bosses, a bracket kit, and a locking ring closure tool for straightforward setup.
Application Flexibility: Compatible with Double Open-Ended AA and 213 internal O-ring cartridges, allowing for a wide range of applications.
Technical Details
Material: 316L stainless steel ensures high corrosion resistance.
Seal Types: Features a head accommodating a 213 O-ring seal, with a spring-loaded knife-edge seal for various cartridge lengths.
Cartridge Compatibility: Supports cartridge lengths from 9¾” to 30”.
Applications
Ideal for commercial filtration, high-temperature installations, and high-pressure applications, the SPECTRUM INOX Standard SFH Housing is designed for use in demanding industrial environments. Its robust construction and versatile design make it the perfect choice for applications requiring reliable and efficient filtration solutions. Whether in commercial or industrial settings, this housing delivers exceptional performance and durability.
The SPECTRUM INOX Standard SFH Housing is engineered to meet the rigorous demands of high-pressure and high-temperature applications. This housing offers a superior alternative to conventional plastic models, ensuring optimal performance with greater fluid compatibility and industrial-grade durability.
Key Features
Versatile Cartridge Compatibility: Supports both radial and longitudinal flow cartridges, with a spring-loaded seal plate accommodating cartridge lengths from 9¾” to 30”.
Durable Construction: Crafted from 316L stainless steel, providing enhanced corrosion resistance and longevity in industrial settings.
Efficient Design: Equipped with a threaded ring-nut closure for secure connections, and a ¼” drain for easy drainage without requiring significant ground clearance.
Benefits
Durability: Built to withstand the extreme conditions of industrial environments, ensuring long-lasting and reliable performance.
Ease of Installation: Comes with mounting bosses, a bracket kit, and a locking ring closure tool for straightforward setup.
Application Flexibility: Compatible with Double Open-Ended AA and 213 internal O-ring cartridges, allowing for a wide range of applications.
Technical Details
Material: 316L stainless steel ensures high corrosion resistance.
Seal Types: Features a head accommodating a 213 O-ring seal, with a spring-loaded knife-edge seal for various cartridge lengths.
Cartridge Compatibility: Supports cartridge lengths from 9¾” to 30”.
Applications
Ideal for commercial filtration, high-temperature installations, and high-pressure applications, the SPECTRUM INOX Standard SFH Housing is designed for use in demanding industrial environments. Its robust construction and versatile design make it the perfect choice for applications requiring reliable and efficient filtration solutions. Whether in commercial or industrial settings, this housing delivers exceptional performance and durability.
Simplify the upkeep of your water filtration system with the PRBUTTON: PENTAIR Pressure Release Button Kit, an essential spare part designed for seamless compatibility with Pentair 2G housings. This pressure release button plays a crucial role in maintaining system performance and ensuring safe, hassle-free filter maintenance.
Key Features & Benefits
Perfect Compatibility: Specifically designed as a spare part for Pentair 2G housings, ensuring an exact fit for reliable performance.
Pressure Management: The pressure release button allows you to safely release pressure within the housing, making filter changes quick and stress-free.
Ease of Use: Simple to install and operate, it’s a practical addition for both routine maintenance and unexpected repairs.
System Protection: Helps maintain the integrity of your filtration system, extending its lifespan by promoting safe maintenance practices.
The PRBUTTON: PENTAIR Pressure Release Button Kit is a small yet vital component that supports the efficiency and longevity of your water filter housing.
Pressure gauges are an essential addition to any housing system by eliminating any guesswork for filter changeouts, maximising filter cartridge life and optimising system performance. Available in various thread sizes and orientations plus further technical options with differing maximum pressure ratings and features to suit more challenging applications.
High-Quality Construction
PENTAIR 2 Colour Gauge for 3G Housing is constructed with premium materials for durability and longevity. The gauge features a sturdy design that can withstand harsh conditions, making it a reliable option for various applications. Its precision engineering ensures accurate readings, providing you with the information you need to monitor your system effectively.
Dual Colour Indicators
This gauge is equipped with dual colour indicators that offer clear visual cues for easy monitoring. The user-friendly design allows you to quickly assess the status of your system at a glance. With this feature, you can easily identify any issues or potential concerns, allowing you to address them promptly and prevent downtime.
Easy Installation
Installing the PENTAIR 2 Colour Gauge for 3G Housing is quick and hassle-free, saving you time and effort. The gauge is designed for simple installation, making it suitable for both professionals and DIY enthusiasts. Whether you're replacing an existing gauge or upgrading your system, this product is a convenient and practical solution for your needs.
The PRISM Multi Round Filter Housing CORE Range 2" BSPM with Gauge Ports delivers exceptional performance for industrial filtration needs. Engineered from high-quality materials, it combines durability with efficiency for high-flow applications.
Built to Last
Made from premium 316L stainless steel for unrivaled resistance to corrosion.
Designed to handle high temperatures (up to 120°C) and pressures (up to 10 bar).
Equipped with a brushed finish for enhanced durability and a professional appearance.
High Flow Rate Capability
Operates effectively with flow rates of up to 700 LPM, depending on the configuration.
Flow rate performance based on 20 micron value pleated filter
Versatile Cartridge Compatibility
Features a universal cartridge adaptor compatible with code 1, 3, and 8 end-capped cartridges (DOE / 222 FIN / 222 SOE).
Offers flexible filtration options for varied industrial requirements.
Convenient Design Features
Integrated gauge ports for easy filter monitoring.
Includes drain ports to simplify housing emptying, reducing downtime and product wastage.
Ensures quick and efficient filter changeouts to improve operational efficiency.
Multiple Configuration Options
Ideal for diverse applications, the housing comes in several configurations to suit varying flow rates and needs:
5 x 20" – 250 LPM
5 x 30" – 375 LPM
5 x 40" – 500 LPM
7 x 20" – 350 LPM
7 x 30" – 525 LPM
7 x 40" – 700 LPM
Perfect for Industrial Applications
This multi-round filter housing is an excellent choice for industries requiring reliable and high-capacity filtration solutions. From handling challenging liquids to maintaining a continuous high flow rate, its robust construction and thoughtful features make it a dependable choice.
The PRISM Multi Round Filter Housing CORE Range 2" BSPM with Gauge Ports delivers exceptional performance for industrial filtration needs. Engineered from high-quality materials, it combines durability with efficiency for high-flow applications.
Built to Last
Made from premium 316L stainless steel for unrivaled resistance to corrosion.
Designed to handle high temperatures (up to 120°C) and pressures (up to 10 bar).
Equipped with a brushed finish for enhanced durability and a professional appearance.
High Flow Rate Capability
Operates effectively with flow rates of up to 700 LPM, depending on the configuration.
Flow rate performance based on 20 micron value pleated filter
Versatile Cartridge Compatibility
Features a universal cartridge adaptor compatible with code 1, 3, and 8 end-capped cartridges (DOE / 222 FIN / 222 SOE).
Offers flexible filtration options for varied industrial requirements.
Convenient Design Features
Integrated gauge ports for easy filter monitoring.
Includes drain ports to simplify housing emptying, reducing downtime and product wastage.
Ensures quick and efficient filter changeouts to improve operational efficiency.
Multiple Configuration Options
Ideal for diverse applications, the housing comes in several configurations to suit varying flow rates and needs:
5 x 20" – 250 LPM
5 x 30" – 375 LPM
5 x 40" – 500 LPM
7 x 20" – 350 LPM
7 x 30" – 525 LPM
7 x 40" – 700 LPM
Perfect for Industrial Applications
This multi-round filter housing is an excellent choice for industries requiring reliable and high-capacity filtration solutions. From handling challenging liquids to maintaining a continuous high flow rate, its robust construction and thoughtful features make it a dependable choice.
The PRISM Multi Round Filter Housing CORE Range 2" BSPM with Gauge Ports delivers exceptional performance for industrial filtration needs. Engineered from high-quality materials, it combines durability with efficiency for high-flow applications.
Built to Last
Made from premium 316L stainless steel for unrivaled resistance to corrosion.
Designed to handle high temperatures (up to 120°C) and pressures (up to 10 bar).
Equipped with a brushed finish for enhanced durability and a professional appearance.
High Flow Rate Capability
Operates effectively with flow rates of up to 700 LPM, depending on the configuration.
Flow rate performance based on 20 micron value pleated filter
Versatile Cartridge Compatibility
Features a universal cartridge adaptor compatible with code 1, 3, and 8 end-capped cartridges (DOE / 222 FIN / 222 SOE).
Offers flexible filtration options for varied industrial requirements.
Convenient Design Features
Integrated gauge ports for easy filter monitoring.
Includes drain ports to simplify housing emptying, reducing downtime and product wastage.
Ensures quick and efficient filter changeouts to improve operational efficiency.
Multiple Configuration Options
Ideal for diverse applications, the housing comes in several configurations to suit varying flow rates and needs:
5 x 20" – 250 LPM
5 x 30" – 375 LPM
5 x 40" – 500 LPM
7 x 20" – 350 LPM
7 x 30" – 525 LPM
7 x 40" – 700 LPM
Perfect for Industrial Applications
This multi-round filter housing is an excellent choice for industries requiring reliable and high-capacity filtration solutions. From handling challenging liquids to maintaining a continuous high flow rate, its robust construction and thoughtful features make it a dependable choice.
The PRISM Stainless Steel Filter Housing CORE Range is built to handle the toughest industrial filtration needs. Designed with durability, functionality, and efficiency in mind, this high-performance filter housing is ideal for demanding environments.
Heavy-Duty Construction for Tough Applications
Crafted from premium 316L stainless steel for resistance to corrosion and wear.
Withstands high temperatures and high pressures, exceeding the capabilities of plastic housings.
Durable brushed finish adds a professional look while enhancing durability.
Versatile and Industrial-Grade Performance
Perfect for environments with challenging liquids or particulate filtration requirements.
Compatible with filters for both nominal particulate removal and critical absolute filtration.
Built for industrial applications, ensuring reliable operation under extreme conditions.
Convenient Features
Includes bracket and spanner for easy installation and maintenance.
Designed for compatibility with a wide range of end-capped cartridges for flexible use.
Key Benefits
Delivers superior durability in harsh environments.
Ideal for high-pressure filtration, making it perfect for industrial use.
Reduces downtime and maintenance costs with its robust build quality.
Upgrade to the PRISM Stainless Steel Filter Housing CORE Range FH-SS-1-R for reliable, long-lasting performance in the most demanding filtration applications.
The PRISM Stainless Steel Filter Housing CORE Range is built to handle the toughest industrial filtration needs. Designed with durability, functionality, and efficiency in mind, this high-performance filter housing is ideal for demanding environments.
Heavy-Duty Construction for Tough Applications
Crafted from premium 316L stainless steel for resistance to corrosion and wear.
Withstands high temperatures and high pressures, exceeding the capabilities of plastic housings.
Durable brushed finish adds a professional look while enhancing durability.
Versatile and Industrial-Grade Performance
Perfect for environments with challenging liquids or particulate filtration requirements.
Compatible with filters for both nominal particulate removal and critical absolute filtration.
Built for industrial applications, ensuring reliable operation under extreme conditions.
Convenient Features
Includes bracket and spanner for easy installation and maintenance.
Designed for compatibility with a wide range of end-capped cartridges for flexible use.
Key Benefits
Delivers superior durability in harsh environments.
Ideal for high-pressure filtration, making it perfect for industrial use.
Reduces downtime and maintenance costs with its robust build quality.
Upgrade to the PRISM Stainless Steel Filter Housing CORE Range FH-SS-1-R for reliable, long-lasting performance in the most demanding filtration applications.
Filter housing brackets allow for housings to be attached in a fixed location which facilitates easy installation, maintenance and on-going filter change. Double and Triple brackets offer the solution for multiple housing connections. Bracket kits include appropriate screws for quick installation.
Streamline your water filtration setup with the Pentair SL1 Slimline Housing Bracket Kit, designed to provide reliable support and stability for your Pentair Slimline housings. This durable bracket kit is an essential addition for anyone looking to keep their filtration system well-organized and efficiently mounted.
Key Features & Benefits
Tailored Compatibility: Engineered specifically for Pentair Slimline housings, ensuring a secure and perfect fit every time.
Robust Construction: Built from high-quality, durable materials, this bracket kit offers long-lasting stability, even under heavy use.
Effortless Installation: The kit includes all the necessary components for quick and hassle-free setup, saving you time and effort.
Space-Saving Design: Keeps your water filter system neatly mounted, making maintenance easy while optimizing space in your setup.
With the Pentair SL1 Slimline Housing Bracket Kit, you can confidently mount your filtration system, knowing it’s supported by a sturdy and dependable solution.
Simplify Your Water Filter Maintenance
Upgrade your water filtration system with the Pentair SL1 Slimline Housing Bracket Kit today. Enjoy peace of mind with a mounting solution designed for strength, convenience, and lasting performance.
Filter housing brackets allow for housings to be attached in a fixed location which facilitates easy installation, maintenance and on-going filter change. Double and Triple brackets offer the solution for multiple housing connections. Bracket kits include appropriate screws for quick installation.
Make water filter maintenance effortless with the Pentair SW1 Slimline Housing Spanner, the ideal tool for ensuring smooth installation and removal of your Pentair Slimline 2G and 3G housings. Designed with durability and ease of use in mind, this spanner is a must-have for homeowners looking to keep their filtration systems in top condition.
Key Features & Benefits
Perfect Compatibility: Specially crafted for Pentair Slimline 2G and 3G housings, ensuring a precise fit every time.
Built to Last: Made with high-quality materials, this durable spanner can handle repeated use without bending or breaking.
Effortless Operation: The ergonomic design offers a secure grip, making it easy to tighten or loosen filter housings without the hassle.
Time-Saving Tool: Simplifies maintenance tasks, allowing you to focus on enjoying cleaner, healthier water without delays.
Whether you're performing routine filter changes or tackling unexpected maintenance, the Pentair SW1 Slimline Housing Spanner is the ultimate water filter maintenance tool. Its sturdy construction and user-friendly design make it a reliable partner for ensuring your filtration system runs smoothly.
Food and Beverage production requires crevice-free pipework and equipment to reduce the possibility of microbiological growth within the system. SPECTRUM Inox Sanitary housings meet these requirements, as well as Good Manufacturing Practice (GMP) design guidelines, with an industry leading internal surface finish of 0.3µm roughness average (Ra). Satisfying the specification needs of the Life Sciences industry, housings are supplied with tri-clamp inlet and outlet ports, with sanitary style drain ports for complete emptying of the vessel during clean down procedures.
Engineered to the highest standard, these housings have gone through an extensive design process to control microbiological adhesion and promote continued high-quality final product. The range is manufactured from 316L stainless steel and machine polished to produce a crevice-free finish, suitable for full sanitisation and clean down. Tri-clamp connections and a swing bolts provide efficient cartridge changeout, eliminating the need for additional tools and reducing system downtime.
Key Product Features
0.3μm Ra internal surface finish
Tri-clamp ports for industry compatibility
Diaphragmed pressure gauge included to filter monitoring
Vent / test port for pressure release and integrity testing
Accepts 226 end-cap for added security and reduced bypass
FDA Compliant Materials
PED Compliant Article 4, Paragraph 3 Group 2 Liquids
Three-pieces line (head-nut-bowl) are designed for water purification for residential and commercial applications. The bowl is made of PET material, which guarantees reliability and durability. They are equipped with a plastic breather valve.
Technical specifications
Materials: bowl: polyethylene (PET); head - polypropalene (PP) with brass connection units
Clamping: threaded
O-ring: EPDM
Max. working pressure: 8 bar
Max. working temperature: from 5°C (41°F) to 50°C (122°F)
Bracketing: horizontal
Connection: screw thread in inch
Package: empty housing without filter cartridge
The three-piece design (head-nut-bowl) is engineered for water purification in both residential and commercial applications. The bowl is made of durable PET material, ensuring long-lasting reliability. Each unit is equipped with a plastic breather valve for easy pressure release.
Technical specifications
Materials: Bowl - polyethylene (PET); Head - polypropylene (PP) with brass connection units
Clamping: Threaded
O-ring: EPDM
Max. Working Pressure: 8 bar
Max. Working Temperature: 5°C (41°F) to 50°C (122°F)
Bracketing: Horizontal
Connection: ¾"
Package: Empty housing without filter cartridge
Ecosoft 10″ filter housing, 3/4″ connection is a practical and reliable choice for domestic water filtration. It is designed to hold sediment or carbon filter cartridges that reduce visible impurities and improve the taste, smell, and overall quality of tap water. Most commonly used in apartments, private homes, and other personal filtration setups, this housing fits seamlessly into standard systems. The 10″ size and 3/4″ threaded connection ensure easy installation and wide compatibility.
The housing supports popular cartridge formats like DOE, BIG, and COD3 offering flexibility for different water treatment needs. With durable construction and a user-friendly design, it helps extend the life of home appliances and plumbing by providing clean, filtered water for daily use.
Enlarged inlet for stable water flow and minimal pressure drop
Durable tip (2 mm) for precise alignment and tight sealing
Star-shaped head design improves internal water circulation
Compatible with DOE, BIG, and COD3 cartridges
Long-lasting and easy to install
Ecosoft 10″ filter housing, 3/4″ connection is a practical and reliable choice for domestic water filtration. It is designed to hold sediment or carbon filter cartridges that reduce visible impurities and improve the taste, smell, and overall quality of tap water. Most commonly used in apartments, private homes, and other personal filtration setups, this housing fits seamlessly into standard systems. The 10″ size and 3/4″ threaded connection ensure easy installation and wide compatibility.
The housing supports popular cartridge formats like DOE, BIG, and COD3 offering flexibility for different water treatment needs. With durable construction and a user-friendly design, it helps extend the life of home appliances and plumbing by providing clean, filtered water for daily use.
Enlarged inlet for stable water flow and minimal pressure drop
Durable tip (2 mm) for precise alignment and tight sealing
Star-shaped head design improves internal water circulation
Compatible with DOE, BIG, and COD3 cartridges
Long-lasting and easy to install
The Ecosoft Big Blue 4.5"x20" in-line filter housing offers extended filtration performance. Perfect for large households or industrial pre-treatment setups using standard 20" cartridges.
High-volume filter housing
Compatible with 4.5"x20" cartridges
Designed for high flow applications
1" threaded ports with mounting bracket
Optimize your water filtration system with the PRISM Large Diameter Filter Housing 10". Designed for high-flow applications, this filter housing offers outstanding performance for both residential and industrial uses. Its durable construction and user-friendly design ensure effective filtration while accommodating larger capacity needs. Constructed from FDA-compliant materials, it delivers safe and reliable operation, making it an excellent choice for robust water filtration systems.
Key Features
Enhanced Flow with 1” BSP Port SizeBuilt for systems requiring higher flow, the large diameter housing comes with a 1" BSP port size to handle demanding applications.
Durable yet Lightweight DesignPrecision-engineered with advanced injection moulding, it balances strength and reduced weight for easy installation and lasting performance.
Compatible with a Wide Range of CartridgesSupports 9¾”, 10”, and 20” cartridges, accommodating various end-cap styles like DOE, AA, and CG, for flexible integration into your filtration setup.
Constructed for Long-Term UseCrafted from premium FDA-compliant polypropylene (PP) and Styrene Acrylonitrile (SAN), ensuring dependable filtration and prolonged durability under tough conditions.
Materials of Construction
Every component is designed for tough and reliable operation, using premium materials to ensure safety and longevity.
Discover reliable water filtration with the PRISM Filter Housing 10". Engineered for versatility and durability, this housing is expertly designed to ensure efficient performance across diverse applications. Its compact yet robust structure is ideal for under-sink installations, OEM systems, and high-flow setups in both residential and industrial environments. Constructed with FDA-compliant materials, it offers a safe and dependable solution for your water purification needs.
Key Features
Flexible Port OptionsChoose the right fit for your system with port sizes available in ¼”, ⅜”, ½”, and ¾”.
Lightweight yet SturdyThe housing is crafted using advanced injection moulding, making it easy to handle without compromising longevity.
Broad CompatibilityDesigned for seamless integration with 9¾” x 2½”, 9⅞”x 2½”, and 10”x 2½” cartridges, it supports a variety of end-cap styles, including DOE, AA, and CG.
Superior Build QualityManufactured with FDA-compliant polypropylene (PP) or Styrene Acrylonitrile (SAN) for a long-lasting, high-performance experience.
Materials of Construction
For lasting durability and dependable operation, the PRISM Filter Housing 10" features premium materials such as polypropylene for the head and sump (coloured variants), Styrene Acrylonitrile for transparent options, and a stainless steel spring for the pressure release valve.
Discover reliable water filtration with the PRISM Filter Housing 10". Engineered for versatility and durability, this housing is expertly designed to ensure efficient performance across diverse applications. Its compact yet robust structure is ideal for under-sink installations, OEM systems, and high-flow setups in both residential and industrial environments. Constructed with FDA-compliant materials, it offers a safe and dependable solution for your water purification needs.
Key Features
Flexible Port OptionsChoose the right fit for your system with port sizes available in ¼”, ⅜”, ½”, and ¾”.
Lightweight yet SturdyThe housing is crafted using advanced injection moulding, making it easy to handle without compromising longevity.
Broad CompatibilityDesigned for seamless integration with 9¾” x 2½”, 9⅞”x 2½”, and 10”x 2½” cartridges, it supports a variety of end-cap styles, including DOE, AA, and CG.
Superior Build QualityManufactured with FDA-compliant polypropylene (PP) or Styrene Acrylonitrile (SAN) for a long-lasting, high-performance experience.
Materials of Construction
For lasting durability and dependable operation, the PRISM Filter Housing 10" features premium materials such as polypropylene for the head and sump (coloured variants), Styrene Acrylonitrile for transparent options, and a stainless steel spring for the pressure release valve.
Optimize your water filtration system with the PRISM Large Diameter Filter Housing 10". Designed for high-flow applications, this filter housing offers outstanding performance for both residential and industrial uses. Its durable construction and user-friendly design ensure effective filtration while accommodating larger capacity needs. Constructed from FDA-compliant materials, it delivers safe and reliable operation, making it an excellent choice for robust water filtration systems.
Key Features
Enhanced Flow with 1” BSP Port SizeBuilt for systems requiring higher flow, the large diameter housing comes with a 1" BSP port size to handle demanding applications.
Durable yet Lightweight DesignPrecision-engineered with advanced injection moulding, it balances strength and reduced weight for easy installation and lasting performance.
Compatible with a Wide Range of CartridgesSupports 9¾”, 10”, and 20” cartridges, accommodating various end-cap styles like DOE, AA, and CG, for flexible integration into your filtration setup.
Constructed for Long-Term UseCrafted from premium FDA-compliant polypropylene (PP) and Styrene Acrylonitrile (SAN), ensuring dependable filtration and prolonged durability under tough conditions.
Materials of Construction
Every component is designed for tough and reliable operation, using premium materials to ensure safety and longevity.
Discover reliable water filtration with the PRISM Filter Housing 10". Engineered for versatility and durability, this housing is expertly designed to ensure efficient performance across diverse applications. Its compact yet robust structure is ideal for under-sink installations, OEM systems, and high-flow setups in both residential and industrial environments. Constructed with FDA-compliant materials, it offers a safe and dependable solution for your water purification needs.
Key Features
Flexible Port OptionsChoose the right fit for your system with port sizes available in ¼”, ⅜”, ½”, and ¾”.
Lightweight yet SturdyThe housing is crafted using advanced injection moulding, making it easy to handle without compromising longevity.
Broad CompatibilityDesigned for seamless integration with 9¾” x 2½”, 9⅞”x 2½”, and 10”x 2½” cartridges, it supports a variety of end-cap styles, including DOE, AA, and CG.
Superior Build QualityManufactured with FDA-compliant polypropylene (PP) or Styrene Acrylonitrile (SAN) for a long-lasting, high-performance experience.
Materials of Construction
For lasting durability and dependable operation, the PRISM Filter Housing 10" features premium materials such as polypropylene for the head and sump (coloured variants), Styrene Acrylonitrile for transparent options, and a stainless steel spring for the pressure release valve.
Discover reliable water filtration with the PRISM Filter Housing 10". Engineered for versatility and durability, this housing is expertly designed to ensure efficient performance across diverse applications. Its compact yet robust structure is ideal for under-sink installations, OEM systems, and high-flow setups in both residential and industrial environments. Constructed with FDA-compliant materials, it offers a safe and dependable solution for your water purification needs.
Key Features
Flexible Port OptionsChoose the right fit for your system with port sizes available in ¼”, ⅜”, ½”, and ¾”.
Lightweight yet SturdyThe housing is crafted using advanced injection moulding, making it easy to handle without compromising longevity.
Broad CompatibilityDesigned for seamless integration with 9¾” x 2½”, 9⅞”x 2½”, and 10”x 2½” cartridges, it supports a variety of end-cap styles, including DOE, AA, and CG.
Superior Build QualityManufactured with FDA-compliant polypropylene (PP) or Styrene Acrylonitrile (SAN) for a long-lasting, high-performance experience.
Materials of Construction
For lasting durability and dependable operation, the PRISM Filter Housing 10" features premium materials such as polypropylene for the head and sump (coloured variants), Styrene Acrylonitrile for transparent options, and a stainless steel spring for the pressure release valve.
Discover reliable water filtration with the PRISM Filter Housing 10". Engineered for versatility and durability, this housing is expertly designed to ensure efficient performance across diverse applications. Its compact yet robust structure is ideal for under-sink installations, OEM systems, and high-flow setups in both residential and industrial environments. Constructed with FDA-compliant materials, it offers a safe and dependable solution for your water purification needs.
Key Features
Flexible Port OptionsChoose the right fit for your system with port sizes available in ¼”, ⅜”, ½”, and ¾”.
Lightweight yet SturdyThe housing is crafted using advanced injection moulding, making it easy to handle without compromising longevity.
Broad CompatibilityDesigned for seamless integration with 9¾” x 2½”, 9⅞”x 2½”, and 10”x 2½” cartridges, it supports a variety of end-cap styles, including DOE, AA, and CG.
Superior Build QualityManufactured with FDA-compliant polypropylene (PP) or Styrene Acrylonitrile (SAN) for a long-lasting, high-performance experience.
Materials of Construction
For lasting durability and dependable operation, the PRISM Filter Housing 10" features premium materials such as polypropylene for the head and sump (coloured variants), Styrene Acrylonitrile for transparent options, and a stainless steel spring for the pressure release valve.
Designed with the user in mind, the swing bolt and hinged lid or Davit arm assembly enables cartridge changeout to be achieved with no loose parts, heavy lifting or tools required. Manufactured with lids weighing up to 60 kg, these heavy-duty housings ensure all health and safety angles are covered by this Premier housing feature, whilst also providing reduced labour operation for engineers carrying out cartridge changeouts. Extensive stock holding, along with complete technical back up, ensures confidence in finding the correct housing for each application. All housings come complete with a universal plate which is capable of accepting both DOE and 222 fittings. The Premier range benefits operators with a swing bolts and hinged lid configuration which keep the head secured to the vessel during cartridge changeout. Additional drain ports also assist cartridge changeout allowing for complete emptying of the housing, while the supplied pressure gauges provide accurate differential pressure readings for filter monitoring. The 7 round housings accept seven cartridges in 30"" or 40"" with 2"" BSPM inlet and outlet connections with the 40"" being the first in the range to be available with 3"" flanged connection.Key product features
PED compliant and DWI approved
PFH large multi-round housings with 4" or 6" flanges achieve flow capacities over 4100 lpm with minimal pressure loss
Manufactured with heavy duty mounting legs which bolt to the floor for added security
Swing bolt and davit arm head configuration for quick, easy and safe cartridge change-out
Feature a top plate with tie rod threads to evenly spread compression over the spring seals making change-out easy.
An optional universal housing adaptor will securely hold 222 and DOE cartridges
Drains are 1/2" on 22 round and 3/4" on 36 and 52 round housings.
The 22,36 and 52 round accept cartridges with an outer diameter of up to 2 5/8". For 2 3/4" diameter cartridges, change coding to 21,32 and 50 respectively.
Features & Information
High Temperature installations
High Pressure applications
Industrial applications
High flow capacity applications
