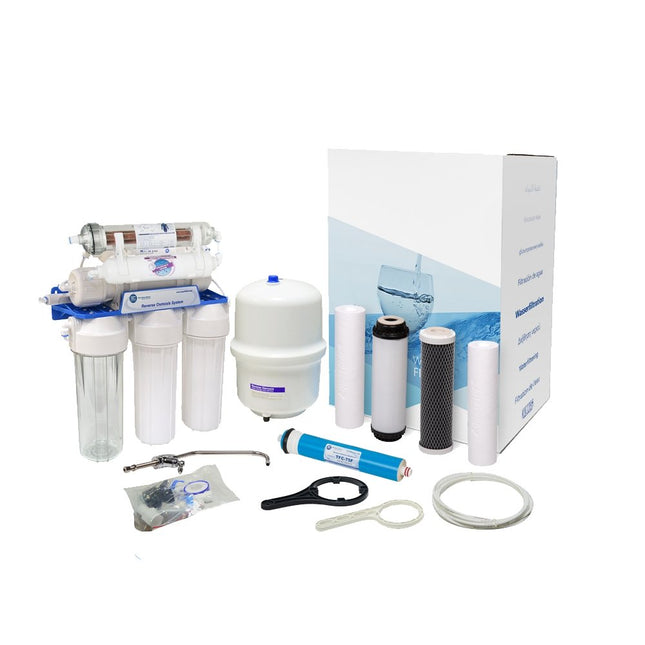

This complete 7 stage reverse osmosis system is ready to install made by Aquafilter. Made of NSF and WRAS certified components. Due to the high membrane quality it is possible to purify up to 280 litres of water per day. Small micron rating 0,0001 µm, allows to remove most contaminants from water including bacteria and viruses. System is equipped with post filtration carbon cartridge (AICRO), which improves the taste and aroma of water and AIMRO mineralising cartridge, which enriches water with elements such as calcium and magnesium.Set includes: RX-RO6-NN system, FCCA, FCCBL, FCPS20 sediment filter,(one extra sediment filter 5 micron), AICRO, AIMRO cartridges and TFC-75F-AQM RO membrane, FXFCH5 faucet, feed water connector 1/2″, tubing, tank, instruction, and accessories.If your water pressure is less than 2.8bar, we recommend you choose the pumped system.
Please find a link to the Instructions here. A QR Code linking to instructions is included in the box.
We recommend using a plumber or other suitable tradesperson for the installation of these systems.
UsesDrinking water for home and office Aquarium waterwindow cleaning
What we offer7 stage complete Ro filter system 75 GPD.(Stage 1) 20 Micron Sediment Filter: FCPS20 or FCPS5(Stage 2) Activated Carbon Block Filter: FCCBL(Stage 3) Carbon Block Filter: FCCA(Stage 4) Reverse Osmosis Membrane 75 GPD per day: TFC-75F-AQM(Stage 5) Post Carbon filter: AICRO(Stage 6) Mineral cartridge: AIMRO(Stage 7) Ionizing Cartr0dge: AIFIR2000.
FeaturesConnectors type: Quick connect fittings3.2 Gallons NSF Standards Water Storage Tank: PRO3200PNSF Approved 3 Filter Housings (double o’ring): 3 whiteMounting bracket: Plastic type Automatic Shut-off Valve:AJ-S-3000WFlow Restrictor: 420cc AQ-FR-420Attractive design faucet: FXFCH5Feed water connector and deliver valve: FT06P, AQ-SEWBV1414-PPDrain Saddle Valve:AJ-SC500B14White Colour Coded 1/4 inch Tubing for System ConnectionAssembled &100% Factory leak tested ready for Installation
Technical FeaturesMembrane: 75 GPD / 283 LPDOperation pressure: 2.75 – 5.5 bar (40 -80 psi)Tank Pressure: 8 psiDimensions: (cm) 37 (L) x 45(H) x 20 (W) – system (cm) 28 (L) x 28(W) x 35 (H)- tank

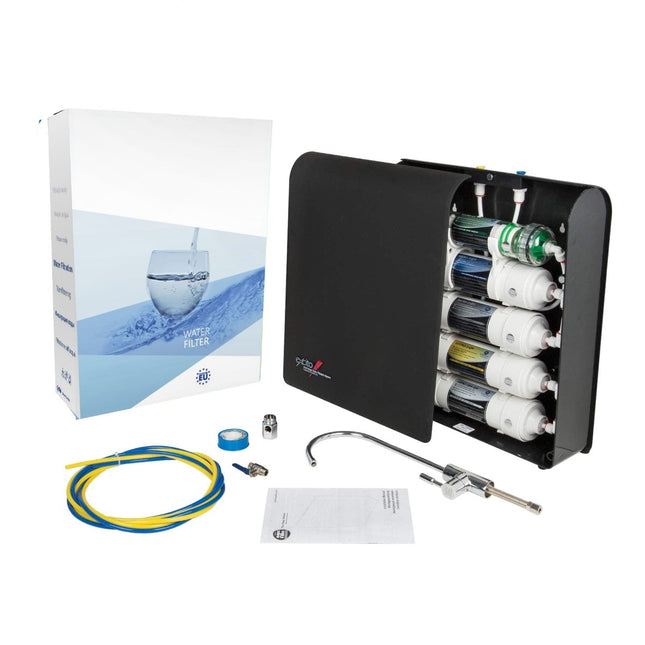

Aquafilter offers EXCITO-B 5-Stage Under-Counter Water Filtration system in an aesthetic casing with UF membrane. System is equipped with modern QM type in-line cartridges which allow quick and easy replacement. Through an accurate combination of prefiltration, water softening, Granular Activated Carbons with special KDF® Media and Ultrafiltration treatments it ensures a continuous supply of clean and fresh drinking water.Main features:
Sediment removal (AIPRO-20M-QM)
Water softening and iron removal (AISTRO-2-QM)
Chlorine and organic matter removal (AICRO-3-QM)
Reduces heavy metals concentration (AICRO-4-QM)
Bacteria and viruses elimination and small particles removal (TLCHF-2T)
Sets include: AIPRO-20-QM, AISTRO-2-QM, AICRO-3-QM, AICRO-4-QM cartridges, TLCHF-2T UF membrane, FXFCH17-C faucet, feed water connector 1/2", tubing, instruction and colour box.

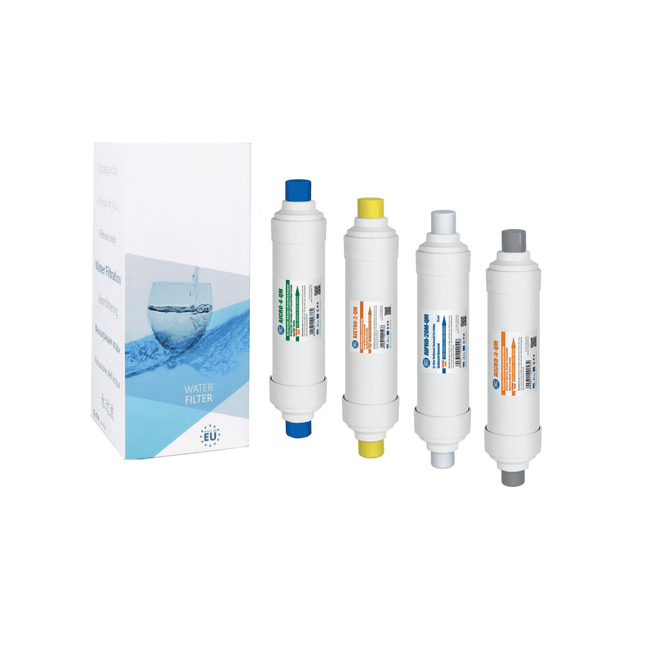

A set of 4 replaceable in-line cartridges for EXCITO-B system. Set includes: AIPRO-20M-QM, AISTRO-2-QM, AICRO-3-QM, AIPRO-4-QM. Cartridges remove sediments such as sand, silt, rust and suspended solids, chlorine, organic substances, certain pesticides, iron, heavy metals. Using the set it is possible to reduce water hardness and improve the taste and aroma of filtered water. KDF® exhibits bacteriostatic properties inhibiting bacterial growth and therefore protecting the cartridge. Available with 1/4" QM connection.
Available sizes: 2,5" x 12"Available micron rating: 20
Set contains:
FCPS5 sediment cartridge
Premium FCCBL-S Silver Series activated carbon block cartridge with cation exchange based resin
FCCA coconut shell granulated activated carbon (GAC) cartridge
Stage 1Sediment filter removes sand, rust, silt and other sediments up to 5 micron
Stage 2Activated carbon block cartridge removes levels of Chlorine, Organic Compounds, Pesticides, Herbicides, Trihalomethanes and Volatile Organic Compounds (VOCs). Additionally, the cation exchange based resin water softening process is performed by the decrease of calcium and magnesium content, enhancing the obtaining of fresh and clean water.
Specifications:
● Maximum Operating Pressure: 6 bar (90 psi)● Minimum Temperature: 2ºC● Maximum Temperature: 40°C
Carbon GAC filter reduces levels of Chlorine, Organic Compounds, Pesticides, Herbicides, and also reduces levels of heavy metals in the water and balances pH

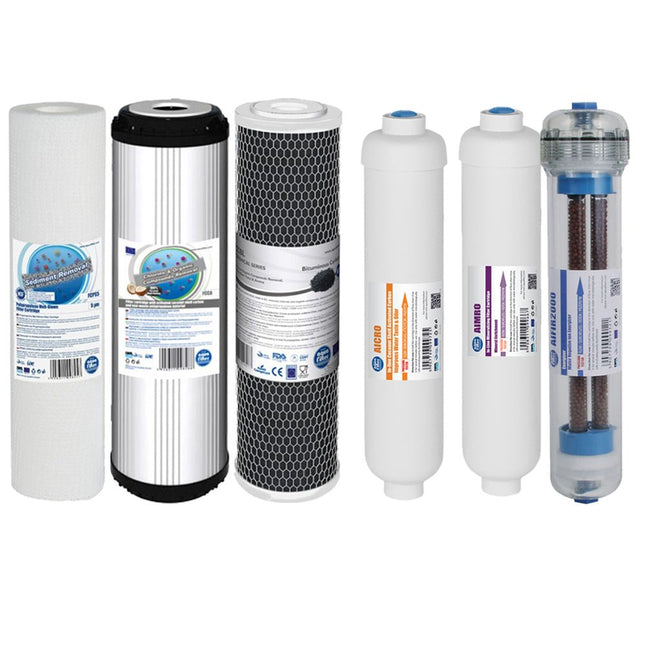

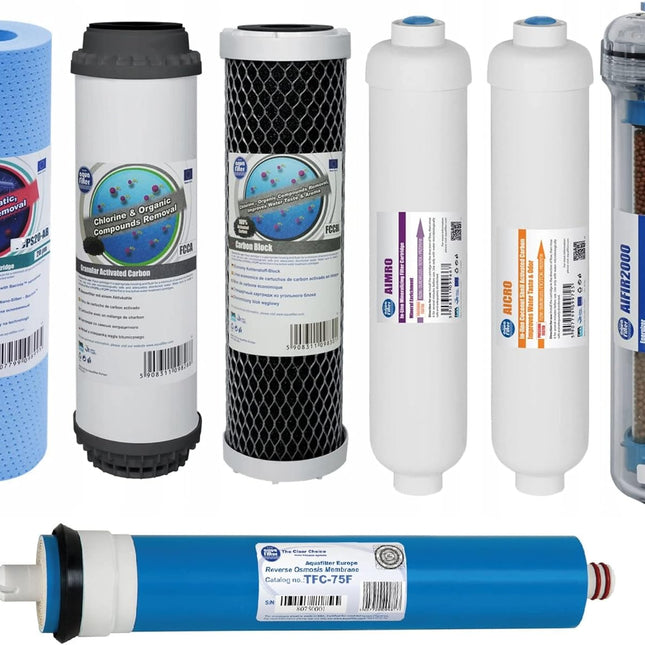

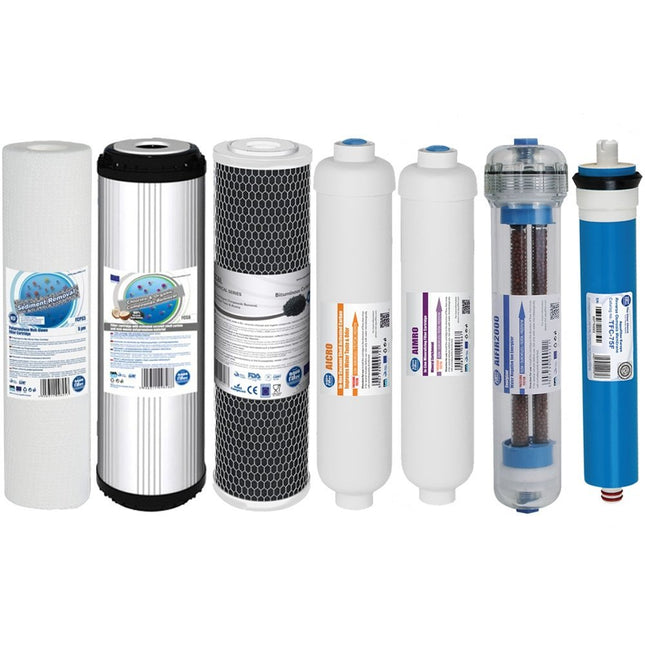

Complete set of replacement replacement filter cartridges for 7 Stage Reverse Osmosis System
(Stage 1) 5 Micron Sediment Filter
(Stage 2) Activated Carbon Block Filter
(Stage 3) Activated Carbon Block
(Stage 4) Reverse Osmosis Membrane
(Stage 5) Post Carbon filter
(Stage 6) Mineral cartridge: AIMRO
(Stage 7) Negative Ionizer (AIFIR-2000)
This replacement Reverse Osmosis Filter set is suitable for all leading brands of RO System.
Aquafilter FP3-2 Stage water filtration system . Aquafilter FP3-2- tri-stage undercounter water filtration system is made of the following filter cartridges: FCPS5 and FCPS20, which remove sediment impurities such as sand, rust, and suspensions of not less than 5 μm, and carbon based FCCBL filter cartridge, which removes chlorine, some pesticides and organic substances. The system is sold with a standard set of cartridges, connection adapters, filter faucet and housing wrench. Depending on the quality of the water, system can be freely configured with the use of sediment, specialty and carbon filter cartridges.
Specifications:
Dimensions (H x W x L): 390 x 140 x 360 (mm)
Connection adapter: 1/2"
Working Temp.: 2°C - 45°C
Working Pressure: 6 bar

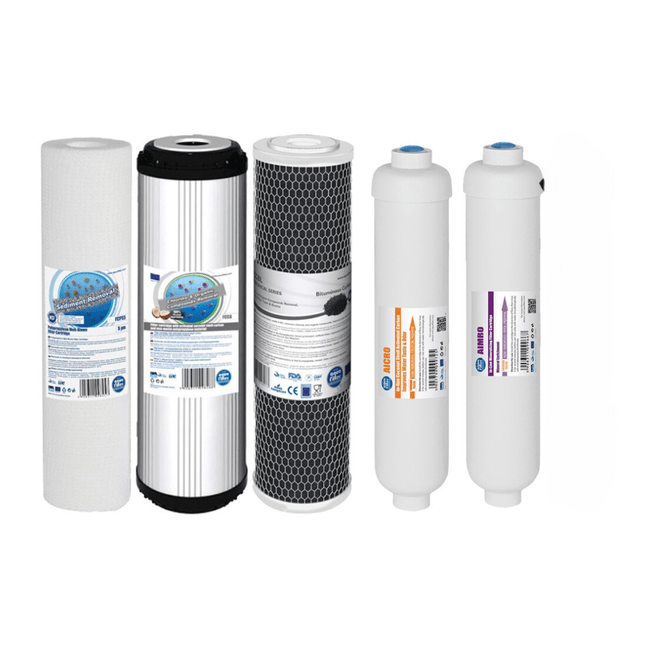

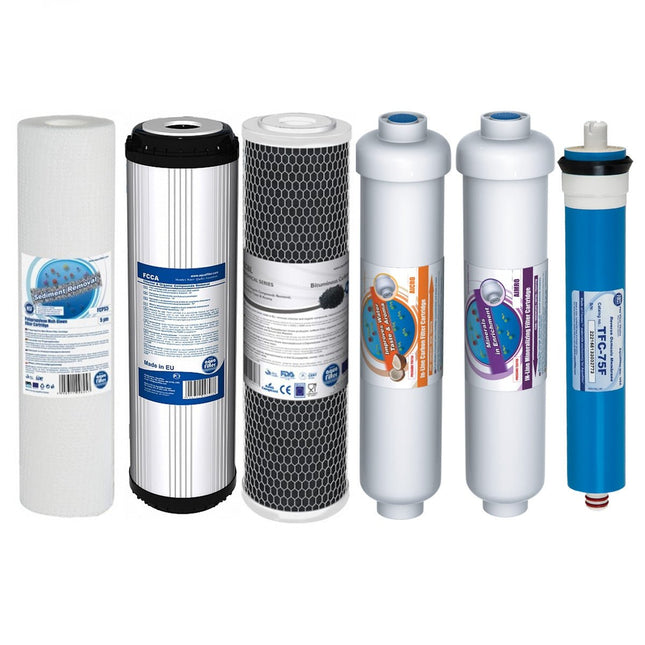

Complete set of replacement replacement filter cartridges for 6 Stage Reverse Osmosis System
(Stage 1) 5 Micron Sediment Filter
(Stage 2) Activated Carbon Block Filter
(Stage 3) Activated Carbon Block
(Stage 4) Reverse Osmosis Membrane
(Stage 5) Post Carbon filter
(Stage 6) Mineral cartridge: AIMRO
This replacement Reverse Osmosis Filter set is suitable for all leading brands of RO System
Set contains
FCPS5 sediment cartridge
Premium FCCBL Silver Series activated carbon block cartridge with cation exchange based resin
FCCST2 Water softening and iron reducing cartridge
Stage 1Sediment filter removes sand, rust, silt and other sediments up to 5 micron
Stage 2Activated carbon block cartridge removes levels of Chlorine, Organic Compounds, Pesticides, Herbicides, Trihalomethanes and Volatile Organic Compounds (VOCs). Additionally, the cation exchange based resin water softening process is performed by the decrease of calcium and magnesium content, enhancing the obtaining of fresh and clean water.
Stage 3FCCST2 Water softening and iron reducing cartridge. Through its accurate media consisted of ion exchange-based resin, FCCST2 reduces calcium, magnesium and iron concentration. In case your feed water contains a high concentration of suspended matter. The softening effect takes place within the filter without adding any salt or chemicals into the water. The filter removes harmful substances and reduce limescale, prolonging life-span of your home appliances such as washing machine or dishwasher and saving you money.
Specifications:
Maximum Operating Pressure: 6 bar (90 psi)
Minimum Temperature: 2ºC
Maximum Temperature: 40°C
Complete set of replacement replacement filter cartridges for 6 Stage Reverse Osmosis System
(Stage 1) 5 Micron Sediment Filter
(Stage 2) Activated Carbon Block Filter
(Stage 3) Activated Carbon Block
(Stage 4) Reverse Osmosis Membrane (not included)
(Stage 5) Post Carbon filter
(Stage 6) Mineral cartridge: AIMRO
This replacement Reverse Osmosis Filter set is suitable for all leading brands of RO System.
