Filtration applications are typically defined by the performance characteristics of the filter cartridge being used, however selecting the right filter housing can optimize and enhance the results achieved from different cartridges. Several factors are important to consider when selecting housings such as system operating pressure, flow rate and pipework requirements, application temperature, chemical compatibility and the housing location/environment.
10” in line filter housing with pressure relief valve and two o-rings, blue sump. Available with brass inserts: 1/2", 3/4" or 1" BSP. The design in combination with two O-rings (one inside filter head and second on the edge of filter sump), ensures maximum leak proof performance.FHPRN12 - 1/2"FHPRN34 - 3/4"FHPRN1 - 1"
3 Stage Big Blue 20" Water purifier and dechlorinator filter kitKit contains:
3 Stage 20" Big Blue water filter housing with 1” BSP port
3 x Bacteriostatic centring disc - BACINIX Technology
2 x Pressure gauge
Metal platform
Housing wrench
FCPS5M20B sediment cartridge
FCCBL20BB-S silver series carbon block
FCCBKDF20BB coconut shell with KDF-55 Media cartridge
Specifications:Housing: PPCap: PPInserts: brassPressure relief valve: brassNo. of pressure gauge: 2O-ring: NBRThread: 1" BSPOperating Pressure: 6 barMaximum Flow: 210 lpmMinimum Temperature: 2ºCMaximum Temperature: 45°CDimensions (H x W x L): 785 mm x 540 mm x 220 mm
Aquafilter FHPRN12-B1-AQ 1/2" BSP filter housing is dedicated for cold water on residencial and commercial applications.
FHPRN12-B1-AQ housings are compatible with a broad range of 2 1/2" x 10" type cartridges widely available on the market. FHPRN12-B1-AQ filter housing consist of a blue sump and head with 1/2” inlet/outlet brass inserts and two O-rings (one placed around sump thread and the other inside filter head).
Heads are equipped with a pressure relief valve (providing ability to release air pressure collected during cartridge replacement procedure). Utilization of two O-rings ensures maximum leak-proof performance.
Filter housing set includes: mounting bracket with screws, sediment cartridge (FCPS5 - 5 micron), wrench and bacteriostatic filter centralizing ring.
The FHPRN12-B1-AQ housings can be mounted individually or connected in a series
Specifications:Blue sump: PPCap: PPInserts: brassPressure relief valve: brassO-ring: NBRNumber of orings: 2Thread: 1/2" BSPMaximum Pressure: 6 bar (90 psi)Minimum temperature: 2ºCMaximum temperature: 43°C
Features:- High quality- NSF certified for structural integrity and material requirements- FDA CFR Title 21 Compliance- Factory Tested- Two O-rings for maximum leak proof protection- Domestic and commercial use- Equipped with filter bracket, wrench and cartridge- Ideal for POE or POU use- Full flow 1/2” BSP ports- Made in EU with High Performance Components
3 Stage 10" Water purifier dechlorinator and iron reducing filter kitKit contains:
3 Stage 10" water filter housing
3 x Bacteriostatic centring disc - BACINIX Technology
Housing wrench
FCPS5 sediment cartridge
FCCBL-P carbon block
FCCFE iron reducing
Dimensions (H x W x L): 390 x 140 x 360 (mm)Minimum Temp.: 2°CMaximum Temp.: 45°CMaximum Flow: 33 lpmWorking Pressure: 6 bar
3 Stage Big Blue 10" Water purifier and dechlorinator filter kitKit contains:
3 Stage 10" Big Blue water filter housing with 1” BSP port
3 x Bacteriostatic centring disc - BACINIX Technology
2 x Pressure gauge
Metal platform
Housing wrench
FCPS5M10B sediment cartridge
FCCBL10BB-S silver series carbon block
FCCST10BB Water softening and iron reducing cartridge
Specifications:Housing: PPCap: PPInserts: brassPressure relief valve: brassNo. of pressure gauge: 2O-ring: NBRThread: 1" BSPOperating Pressure: 6 barMaximum Flow: 110 lpmMinimum Temperature: 2ºCMaximum Temperature: 45°CDimensions (H x W x L) : 540 mm x 540 mm x 220 mm
3 Stage 10" Water purifier and softening filter kitKit contains:
3 Stage 10" water filter housing
3 x Bacteriostatic centering disc - BACINIX Technology
Housing wrench
1 x FCPS5 sediment cartridge
2 x FCCST water softening cartridge
Dimensions (H x W x L): 390 x 140 x 360 (mm)Minimum Temp.: 2°CMaximum Temp.: 45°CMaximum Flow: 33 lpmWorking Pressure: 6 bar
3 Stage 10" Water purifier and iron reducing filter kitKit contains:
3 Stage 10" water filter housing
3 x Bacteriostatic centring disc - BACINIX Technology
Housing wrench
1 x FCPS5 sediment cartridge
2 x FCCFE iron reducing
Dimensions (H x W x L): 390 x 140 x 360 (mm)Minimum Temp.: 2°CMaximum Temp.: 45°CMaximum Flow: 33 lpmWorking Pressure: 6 bar
Aquafilter filter housing FHPRN12-B-TWIN 1/2" BSP two stage system with two blue filter heads with 1/2" BSP brass inserts, and two blue filter housing sumps, wrench and colour box.
Set includes: FHPRN12-B-TWIN system, wrench, 2 bacteriostatic centring rings, instruction and colour box.Features
High quality
Hand Built & Factory Tested
Ideal for family use as POE
Heavy-duty filter housing
Systems ready to install
Manufactured from FDA CFR-21 compliant materials
Made in EU with High Performance Components
Specifications:
Thread Diameter: 1/2" BSP
Minimum Temp.: 2°C
Maximum Temp.:43°C
Maximum pressure: 6 bar (90 PSI)
Blue Sump: PP
Filter Cap: PP
Number of O-rings inside filter housing head: 2
Pressure Relief Valve: Yes

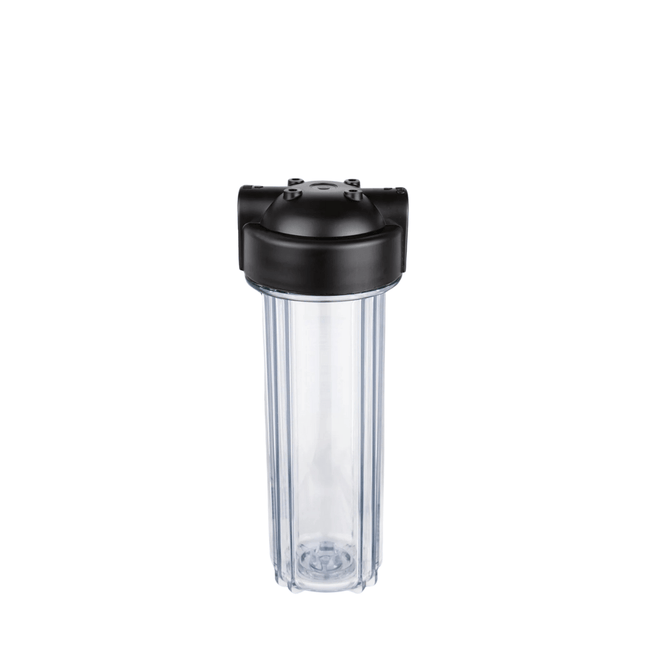

Standard Filter Housings are manufactured of a durable polypropylene or clear Styrene-Acrylonitrile (SAN). All are equipped with 3/4" NPT inlet and outlet ports. Standard Filter Housings are available in both 10" and 20" lengths and will accommodate a wide range of 2-1/2" to 2-7/8" diameter cartridges. The reinforced polypropylene cap offers an optional pressure relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges.Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications. Clear sumps offer on-site examination of the cartridge.Opaque Standard Filter Housings are moulded from rugged reinforced polypropylene. They offer outstanding chemical compatibility and are ideal for use in a variety of low-flow applications.Clear Standard Filter Housings offer on-site examination of flow, performance, and cartridge life. They are ideal for a variety of applications.Features, Options, & Benefits
Ideal for a wide range of applications, including residential, commercial and industrial
Available in 10" and 20" lengths
Optional pressure relief/bleed button on inlet side of cap
Thick walls for increased strength
Leak-proof sealing with top-seated Buna-N O-ring
Available with clear or opaque sumps
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainlesssteel, EPDM, and polypropylene
Temperature Rating - 4.4-51.7°C
Maximum Pressure - 125 psi (8.6 bar)
NSF CertificationsThe 150001, 150002, 150067, 150068, 150071, 150072, 150435 and 150436 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
