Filtration applications are typically defined by the performance characteristics of the filter cartridge being used, however selecting the right filter housing can optimize and enhance the results achieved from different cartridges. Several factors are important to consider when selecting housings such as system operating pressure, flow rate and pipework requirements, application temperature, chemical compatibility and the housing location/environment.
Aquafilter filter housing FHPRN12-B-TWIN 1/2" BSP two stage system with two blue filter heads with 1/2" BSP brass inserts, and two blue filter housing sumps, wrench and colour box.
Set includes: FHPRN12-B-TWIN system, wrench, 2 bacteriostatic centring rings, instruction and colour box.Features
High quality
Hand Built & Factory Tested
Ideal for family use as POE
Heavy-duty filter housing
Systems ready to install
Manufactured from FDA CFR-21 compliant materials
Made in EU with High Performance Components
Specifications:
Thread Diameter: 1/2" BSP
Minimum Temp.: 2°C
Maximum Temp.:43°C
Maximum pressure: 6 bar (90 PSI)
Blue Sump: PP
Filter Cap: PP
Number of O-rings inside filter housing head: 2
Pressure Relief Valve: Yes
Standard Filter Housings are manufactured of a durable polypropylene or clear Styrene-Acrylonitrile (SAN). All are equipped with 3/4" NPT inlet and outlet ports. Standard Filter Housings are available in both 10" and 20" lengths and will accommodate a wide range of 2-1/2" to 2-7/8" diameter cartridges. The reinforced polypropylene cap offers an optional pressure relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges.Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications. Clear sumps offer on-site examination of the cartridge.Opaque Standard Filter Housings are moulded from rugged reinforced polypropylene. They offer outstanding chemical compatibility and are ideal for use in a variety of low-flow applications.Clear Standard Filter Housings offer on-site examination of flow, performance, and cartridge life. They are ideal for a variety of applications.Features, Options, & Benefits
Ideal for a wide range of applications, including residential, commercial and industrial
Available in 10" and 20" lengths
Optional pressure relief/bleed button on inlet side of cap
Thick walls for increased strength
Leak-proof sealing with top-seated Buna-N O-ring
Available with clear or opaque sumps
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainlesssteel, EPDM, and polypropylene
Temperature Rating - 4.4-51.7°C
Maximum Pressure - 125 psi (8.6 bar)
NSF CertificationsThe 150001, 150002, 150067, 150068, 150071, 150072, 150435 and 150436 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
3 Stage Big Blue 10" Water purifier and dechlorinator filter kitKit contains:
3 Stage 10" Big Blue water filter housing with 1” BSP port
3 x Bacteriostatic centering disc - BACINIX Technology
2 x Pressure gauge
Metal platform
Housing wrench
FCPS5M10B sediment cartridge
FCCBHD10BB coconut shell GAC carbon cartridge
FCCBKDF10BB coconut shell with KDF-55 Media cartridge
Specifications:Housing: PPCap: PPInserts: brassPressure relief valve: brassNo. of pressure gauge: 2O-ring: NBRThread: 1" BSPOperating Pressure: 6 barMaximum Flow: 110 lpmMinimum Temperature: 2ºCMaximum Temperature: 45°CDimensions (H x W x L): 540 mm x 540 mm x 220 mm
Aquafilter filter housing FHPRN34-B-TWIN 3/4" BSP two stage system with two blue filter heads with 3/4" BSP brass inserts, and two blue filter housing sumps, wrench and colour box.
Set includes: FHPRN34-B-TWIN system, wrench, 2 bacteriostatic centring rings, instruction and colour box.Features
High quality
Hand Built & Factory Tested
Ideal for family use as POE
Heavy-duty filter housing
Systems ready to install
Manufactured from FDA CFR-21 compliant materials
Made in EU with High Performance Components
Specifications:
Thread Diameter: 3/4" BSP
Minimum Temp.: 2°C
Maximum Temp.:43°C
Maximum pressure: 6 bar (90 PSI)
Blue Sump: PP
Filter Cap: PP
Number of O-rings inside filter housing head: 2
Pressure Relief Valve: Yes
3 Stage Big Blue 20" Water purifier and softener filter kitKit contains:
3 Stage 20" Big Blue water filter housing with 1” BSP port
3 x Bacteriostatic centering disc - BACINIX Technology
2 x Pressure gauge
Metal platform
Housing wrench
FCPS5M20B sediment cartridge
FCCST20BB Water softening and iron reducing cartridge
Specifications:
Housing: PP
Cap: PP
Inserts: brass
Pressure relief valve: brass
No. of pressure gauge: 2
O-ring: NBR
Thread: 1" BSP
Operating Pressure: 6 bar
Maximum Flow: 210 lpm
Minimum Temperature: 2ºC
Maximum Temperature: 45°C
Dimensions (H x W x L): 785 mm x 540 mm x 220 mm

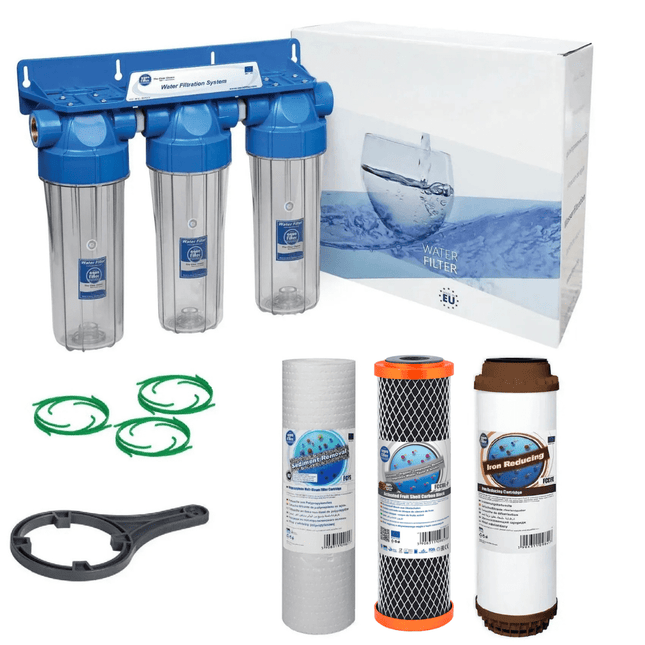

3 Stage 10" Water purifier softening and iron reducing filter kitKit contains:
3 Stage 10" water filter housing
3 x Bacteriostatic centring disc - BACINIX Technology
Housing wrench
1 x FCPP5 polypropylene yarn cartridges
2 x FCCST2 water softening and iron reducing cartridge
Dimensions (H x W x L): 390 x 140 x 360 (mm)Minimum Temp.: 2°CMaximum Temp.: 45°CMaximum Flow: 33 lpmWorking Pressure: 6 bar
Big Blue® Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high flow and heavy sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10" and 20" lengths.Big Blue and Big Black Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.Features, Options, & Benefits
Large capacity housing suitable for high flow applications
10" and 20" lengths available in opaque and clear
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar
NSF CertificationsThe 150233, 150234, 150235, 150236, 150237, 150238, 150239, 150240, 150467, 150468, 150469, and 150470 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
Big Blue® Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high flow and heavy sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10" and 20" lengths.Big Blue and Big Black Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.Features, Options, & Benefits
Large capacity housing suitable for high flow applications
10" and 20" lengths available in opaque and clear
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar
NSF CertificationsThe 150233, 150234, 150235, 150236, 150237, 150238, 150239, 150240, 150467, 150468, 150469, and 150470 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
Big Blue® Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high flow and heavy sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10" and 20" lengths.Big Blue and Big Black Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.Features, Options, & Benefits
Large capacity housing suitable for high flow applications
10" and 20" lengths available in opaque and clear
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar
NSF CertificationsThe 150233, 150234, 150235, 150236, 150237, 150238, 150239, 150240, 150467, 150468, 150469, and 150470 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
