Description

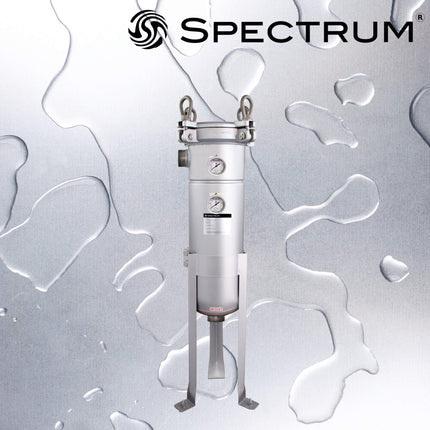

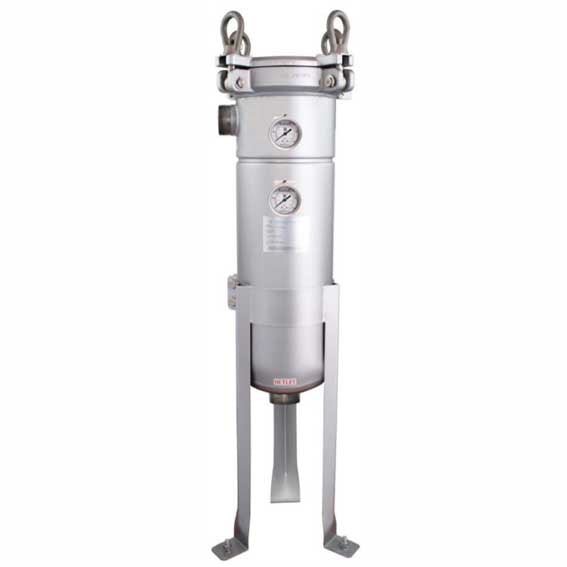

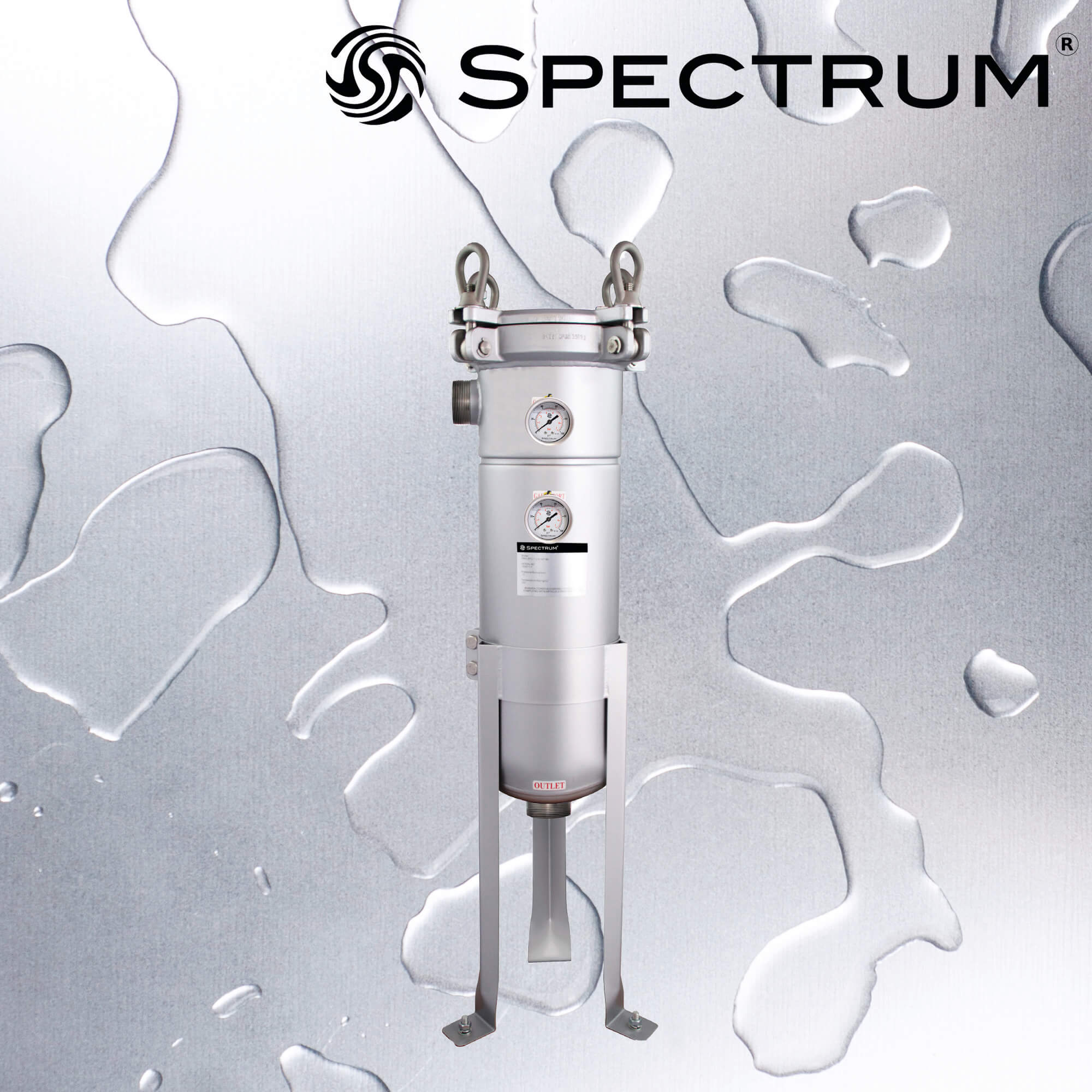

The SPECTRUM range of Inox single round bag housings in industry standard sizes 1, 2, 3 and 4 are designed where long-life and high flow rates are required. All housings now include gauge ports to help monitor system performance.The heavy duty 316L stainless steel construction of the Inox bag housings offer durability and resistance to high temperatures, pressures and aggressive chemicals. The range is suited to high flow applications, capable of handling flow rates from 3,000 to 36,000 lph.
All Inox housings include 2 x ¼ " BSPM gauge ports, 1 x ½ " BSPM drain port and adjustable stainless steel legs as standard.

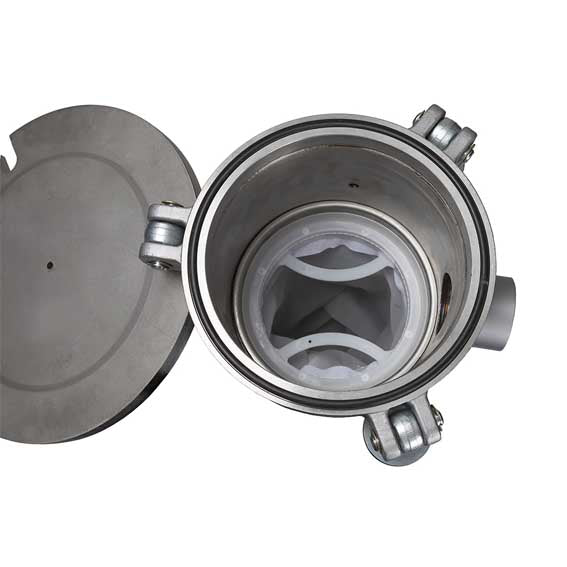

Premier housings benefit from a superior swing-bolt locking mechanism, designed to make bag changes cleaner, faster and easier for the operator.
All systems include a large Buna-N seal as standard to provide a strong, secure seal
Each system includes a stainless steel device to ensure bags are held securely in place
Standard size 1 and 2 housings come with a domed v-band clamp head

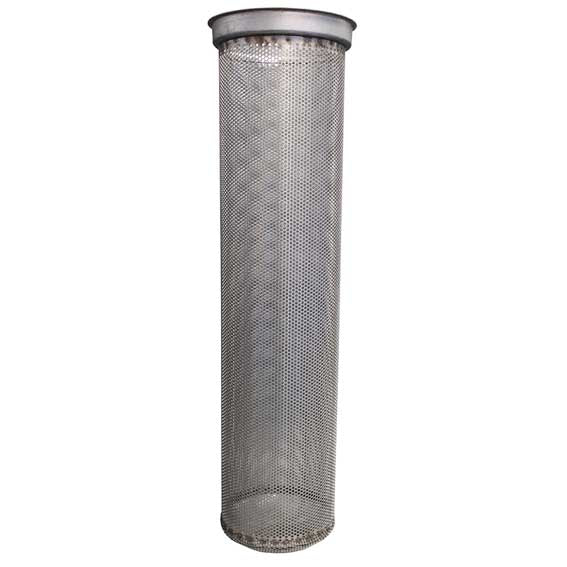

1/8" perforated stainless steel basket supports and protects the bag filter
Key Product Features
- All 316 stainless steel construction
- Swing-bolt locking mechanism
- Inlet and Outlet guages included.
- BSPT-M inlet and outlet
- Side inlet and bottom outlet
- Standard with Buna-N V-seal for head
- Stainless steel compression spring
- ¼" NPT vent port in lid
- ¼" NPT clean/dirty gauge ports
- 1/8" perforated stainless steel basket
- Protective polycoat finish
- Adjustable legs
Maximum Pressure: 10 bar
Maximum Temperature: 120°C
DWI Reg 31
PED 97/23/EC
Specifications
- Brand: Spectrum
- Port Size: 2"
- Max Pressure (bar): 10
- Temp. Rating (°C): 120
- Material: 316L Stainless Steel
- Configuration: 1 Bag (Size 1)
- Flow Rate (lpm): 300
