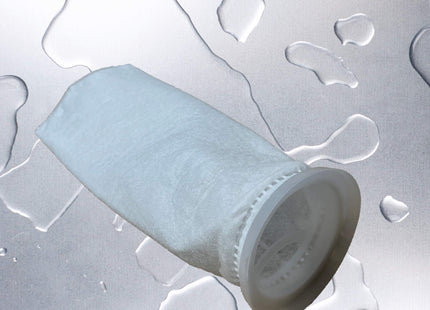

Description

Bag filters are used to remove sediment, debris and gelatinous particles from liquids in higher flow or viscosity applications.

Utilising a traditional single layer manufacturing method, the SPECTRUM Economic range offers the greatest option in terms of filtration media and neck seal type, providing a suitable solution for most bulk solid removal applications.

Due to an all welded seam construction, Economic bags are capable of holding several kg’s in weight whilst maintaining filter integrity and their heavy duty handles make changeouts simple, avoiding operator contact with the unwanted filtrate.

Each bag is manufactured from lot controlled raw media, individually labelled and finished with a total glazing process to inhibit fibre release.

Features & Benefits

• All sizes, micron ratings and neck ring options are available
• Each bag includes a handle for fast, easy and cleaner removal
• Seams on Polypropylene and Polyester felt bags are welded to prevent bypass

Materials of construction

• Filter Media: Polypropylene, Polyester, Nylon
• Neck Ring: Polypropylene
• Construction: Thermal Bond (Nylon is sewn)

Construction notes

• Economic felt bags are of welded construction, where the bag fabric is fused together to create a strong seal, reducing the possibility of loose, fibrous edges migrating downstream
• Economic nylon mesh bags are heavy-duty double stitched

Certification

• WRAS approved product
• BS6920 compliant materials

Specifications

• Brand: Spectrum
• Material: Polypropylene
• Size: 4 (14" x 4")
• Flow Rate (lpm): 150
