The construction of this pure polypropylene, surfactant-free depth filter ensures low pressure drops, with exceptional dirt holding capabilities. ACS-1 series uses no resin binders, lubricants, antistatic or release agents or other chemical additives. The one-step manufacturing process continuously extrudes and thermally bonds pure polypropylene microfibres into a complex filter matrix. Cartridges are characterized by excellent sediment absorption of sand, silt, rust and suspended solids from potable water.
Aquafilter offers FCPS cartridges suitable for POU (Point of Use) and POE (Points of Entry) installations. Through its polypropylene filter media, FCPS series removes solids in suspension in a wide range of micron rating, protecting your water stream and enhancing a continuous supply of fresh and clean drinking water.
Aquafilter ACS-2 series cartridges are made of FDA approved polypropylene string wound yarn on a polypropylene core which strengthens the cartridge. It has a broad chemical compatibility, good temperature resistance and low cost. ACS-2 series cartridges are primarily used as the first stage of filtration. Cartridges are characterized by excellent sediment absorption of sand, silt, rust and suspended solids from potable water.
Cartridges made of polypropylene yarn (FDA compliant). They remove sediments such as sand, silt, rust and suspended solids. Products dedicated to cold water filtration.Available sizes: 10", 20", 10"BB, 20"BBAvailable micron rating: 1, 5, 10, 20, 50, 100

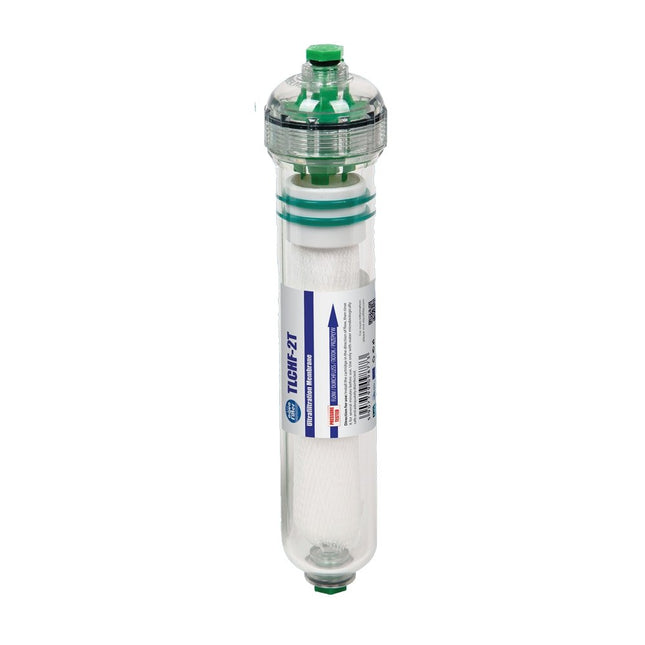

Aquafilter TLCHF-2T In-line ultrafiltration membrane 0.01 micron cartridge 1/4" NPT. Compatible with most under-counter systems available on the market. Due to the small pore size (0,02 micron) in combination with its unique structure, which decreases from the outside to the inside, the membrane is capable of removing various contaminants such as: sand, silt, rust and other suspended impurities, most bacteria, and some viruses. Large sediment particles are blocked near the capillary surface (surface filtration) and smaller ones flow inside until they are captured by smaller pores (depth filtration). Unlike RO membranes, UF membranes are characterized by zero rejection ratio which in turn leads to quicker and more efficient delivery of clean water. Moreover hollow fiber UF membranes leave beneficial minerals intact. TLCHF-2TF is designed for cold potable water filtration. Aquafilter TLCHF-2TF Ultra filtration membrane. Fits most 1/4” water lines and requires no additional tools for installation.Specifications:
Size: 10" x 2"
Micron rating: 0.02 microns
Filter Life: 6-12 months
Max pressure: 3,5 bar
Min temp.: 2'C
Max temp.: 45'C
The PENTEK quick-change filter system offers several cartridge options to meet the demands of varying water conditions. The granular activated carbon cartridge offers extended chlorine taste and odour performance with low pressure drop.* The EP carbon block filter offers superior chlorine taste and odour performance with 5 micron sediment reduction.* The CBR carbon block cartridge has enhanced performance capabilities for chlorine taste & odour, cyst, lead, atrazine and lindane reduction.PENTEK's quick-change filter system applications include:
under-sink drinking water
refrigerator/icemaker
pre/post RO membrane
vending machine
ice machine
coffee machine
other OEM applications
Easy to install, easy filter change
Filter life 500 gallons (1890 L) Chloramine
Filter life 10000 gallons (37850 L) Chlorine
Flow rate 0.6 gpm (2.3 L/min)
ACC-3 cartridges are designed such that where water flows from bottom to top ensures a long contact time, allowing for maximum adsorption and treatment. KDF utilizing redox reactions, kills or inhibits bacteria growth, converts chlorine to chlorides and removes iron, hydrogen sulphide and heavy metals (lead, arsenic, etc.). Used in combination with activated carbon, KDF can significantly extend the life of filter cartridges. Non-woven polypropylene creates a barrier that prevents filtration media from being washed out.
Aquafilter offers FCCBKDF cartridges (FCCBKDF5, FCCBKDF-STO, FCCBKDF, FCCBKDF-L, FCCBKDF10BB and FCBKDF20BB) suitable for POU (Point of Use) and POE (Points of Entry) installations. Through an accurate combination of granular activated carbon (GAC) with KDF® media, FCCBKDF series improves the bad taste and odour of your drinking water by reducing the concentration of chlorine, organic compounds (VOC’s) and heavy metals (e.g. lead, arsenic, cadmium, mercury). KDF® media also inhibits bacterial growth, lengthening the service life of the cartridge, enhancing the continuous supply of fresh and clean drinking water.
Aquafilter AICRO 10" In-line cartridge with coconut shell granulated activated carbon (GAC). It is mostly used for RO systems in order to improve the taste and aroma of filtered water. It can also be installed in "SIDE-BY-SIDE" type refrigerators to reduce chlorine, organic substances and certain pesticides. Available with 1/4" NPT connection.
Multi-use washable sediment filter cartridge, manufactured from durable polyester fabric. In order to provide increased surface area and longer life, ACS-3 series cartridges are pleated around a polypropylene core. The core gives the cartridges additional strength. The end caps are immersed in a vinyl plastisol which fuses these components together acting as both an endcap and a gasket. Cartridges are characterized by excellent sediment absorption of sand, silt, rust and suspended solids from potable water.
Sediment filter cartridge Aquafilter offers FCCEL cartridges suitable for POU (Point of Use) and POE (Points of Entry) installations. Through its polyester filter media, FCCEL series removes solids in suspension, protecting your water stream and enhancing a continuous supply of fresh and clean drinking water.
Aquafilter ACS-2 series cartridges are made of FDA approved polypropylene string wound yarn on a polypropylene core which strengthens the cartridge. It has a broad chemical compatibility, good temperature resistance and low cost. ACS-2 series cartridges are primarily used as the first stage of filtration. Cartridges are characterized by excellent sediment absorption of sand, silt, rust and suspended solids from potable water.
Cartridges made of polypropylene yarn (FDA compliant). They remove sediments such as sand, silt, rust and suspended solids. Products dedicated to cold water filtration.Available sizes: 10", 20", 10"BB, 20"BBAvailable micron rating: 1, 5, 10, 20, 50, 100
Aquafilter FCPS5-AB / FCPS20-AB Melt-blown antimicrobial/antibacterial polypropylene filter cartridge. These durable melt-blown water filter cartridges are the only cartridges available treated with Antimicrobial/Antibacterial nanosilver BACINIX technology. This technology is new to the water filter industry and Aquafilter is the only firm offering this advanced technology within a wide range of product lines. Antimicrobial/Antibacterial technology has been used in the medical industry and is branching out into water treatment industries. This technology helps destroy bacteria as well as inhibit the growth of mold. The blue color of the filter indicates that it has been treated for additional safety. The Aquafilter range of melt-blown cartridges have multiple fibre zones. These multi-fiber zones provide a graded pore structure throughout the filter’s depth. Our filter cartridges have been designed to capture and retain contaminants throughout the entire cross section of the filter. The multiple fiber zones give our filter cartridges a major competitive advantage over other melt-blown filters with fewer pore size gradients in their structure. The new, modern, automatic manufacturing equipment used to produce our wide range of melt-blown cartridge filters delivers consistently efficient filters at low costs.
The construction of this pure polypropylene, surfactant-free depth filter ensures low pressure drops, with exceptional dirt holding capabilities. ACS-1 series uses no resin binders, lubricants, antistatic or release agents or other chemical additives. The one-step manufacturing process continuously extrudes and thermally bonds pure polypropylene microfibres into a complex filter matrix. Cartridges are characterized by excellent sediment absorption of sand, silt, rust and suspended solids from potable water.
Aquafilter offers FCPS cartridges suitable for POU (Point of Use) and POE (Points of Entry) installations. Through its polypropylene filter media, FCPS series removes solids in suspension in a wide range of micron rating, protecting your water stream and enhancing a continuous supply of fresh and clean drinking water.
Aquafilter FCCA10BB 10" Big Blue combination of NSF approved coconut shell activated carbon and speciality media provides efficient removal of contaminants from potable water. GAC-type cartridges are designed such that where water flows from bottom to top, ensuring long contact time and allowing for maximum adsorption and treatment. Due to the unique formula developed by our R&D Department, the GAC cartridges made by Aquafilter are capable of water softening and scale prevention and reduction in addition to traditional product competencies. They also remove chlorine and organic contaminants, heavy metals from water (i.e. lead, copper, mercury) as well as radioactive particles (cesium, strontium). The cartridges are excellent for taste and odour improvement.Specifications:
Media: NSF approved Coconut Shell GAC, zeolite
Filter Life: 6 -12 months
Size : 10” x 4 1/2
Operating Pressure: 6 bar
Min. feedwater temp. 2°C
Max. feedwater temp. 55°C
Contaminant Removal: Chlorine, VOC's, heavy metals, reduces water hardness
End caps: PP
Gasket: Silicone
Body: HDPE
Post-filter: PP
The construction of this pure polypropylene, surfactant-free depth filter ensures low pressure drops, with exceptional dirt holding capabilities. ACS-1 series uses no resin binders, lubricants, antistatic or release agents or other chemical additives. The one-step manufacturing process continuously extrudes and thermally bonds pure polypropylene microfibres into a complex filter matrix. Cartridges are characterized by excellent sediment absorption of sand, silt, rust and suspended solids from potable water.
Aquafilter offers FCPS cartridges suitable for POU (Point of Use) and POE (Points of Entry) installations. Through its polypropylene filter media, FCPS series removes solids in suspension in a wide range of micron rating, protecting your water stream and enhancing a continuous supply of fresh and clean drinking water.
