Description

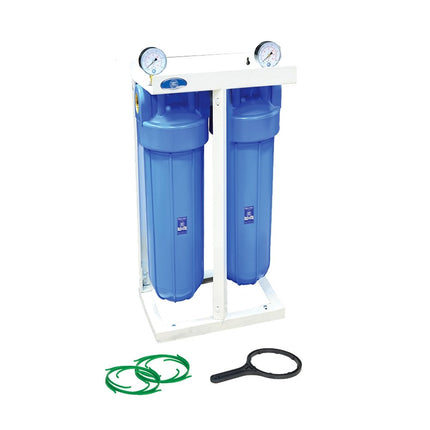

Aquafilter offers HHBB20A 2-Stage Whole House Big Blue® filtration System suitable for POE (Point of use) installations. HHBB20A housings are compatible with a broad range of cartridge types available on the market. Additionally, pressure drop can be monitored through the two pressure gauges located in the inlet and outlet positions of the system besides the microbial protection conferred by blue colored-housings in sunny locations. Equipped with pressure relief valves and a rounded bottom which increases stress resistance, HHBB20A ensures a continuous supply of fresh and clean drinking water.
SYSTEM CONTENT & SPECIFICATIONS
- Housing sumps and filter heads: FH20Bx_L
- Pressure gauge and brass extension: KCGA-1 and KCGA-1-E2
- Centralizing and o-rings: NI-412-CENT-GR-AB and OR-N-1524X57
- Feed water connectors: FXCG1-B
- Wrench for filter: FXWR1BB-BL
- Installation instructions (English language)
- System dimensions (Height x Width x Length): 720 x 380 x 220 mm
- Cartridge dimensions (Height x Outer Diameter): 20 x 4 1/2 inches
- Operating temperature range (water): 2 - 45 °C (35 – 113 °F)
- Operating pressure: 6 bar (90 psi)
- 100% factory-assembled, leak tested and ready for installation
Specifications
- Brand: Aquafilter
- Ideal For: Whole House
- Configuration: 2 Cartridges (20" x 4.5")
