Description

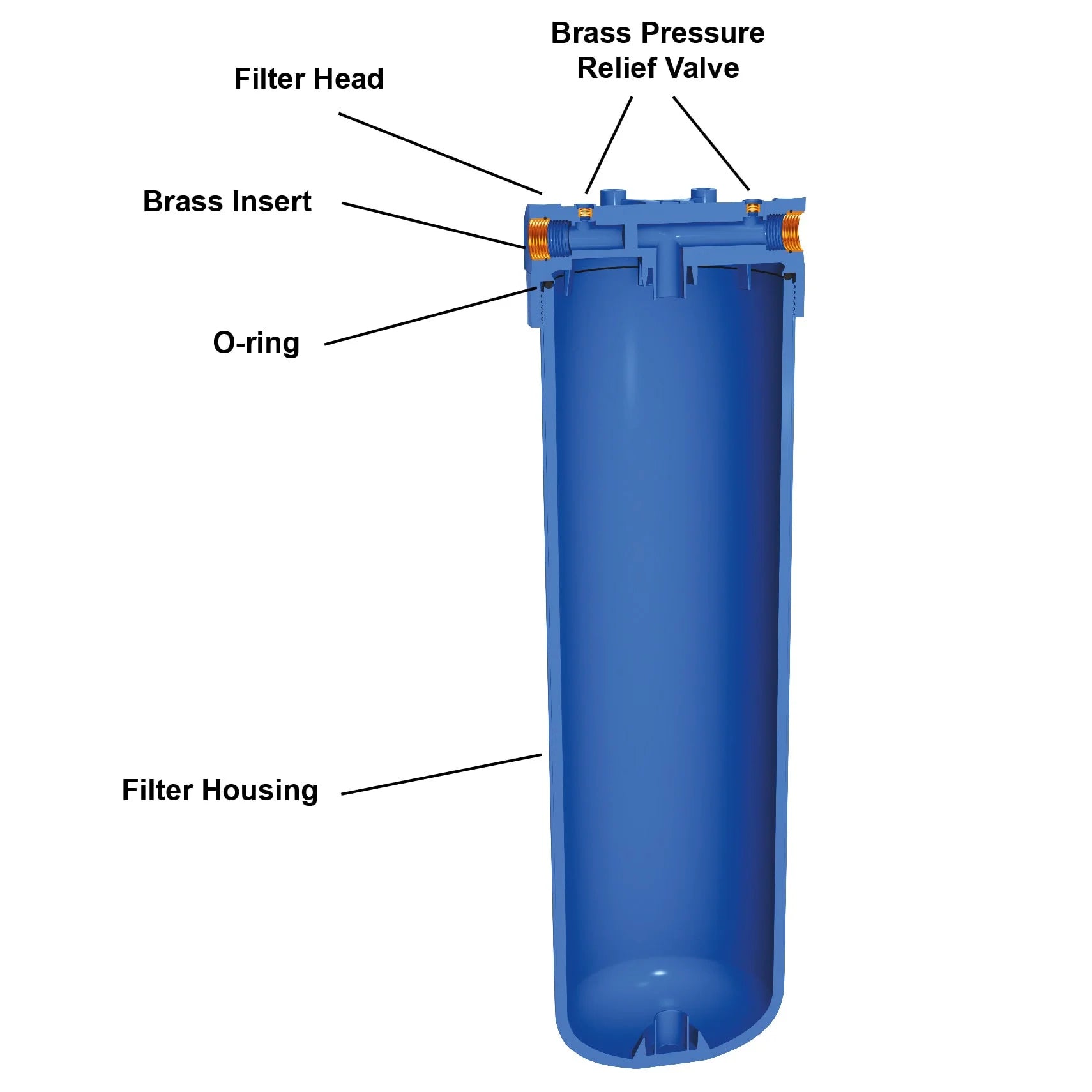

Systems consist of Big Blue ® filter housings to meet all customer large-capacity filtration needs. The systems are dedicated for high flow, cold water on commercial and industrial applications. The housings are compatible with a 4 1/2” x 20" type cartridges widely available on the market. Filter housings consist of housing sump and filter head with 1" brass inlet/outlet inserts. Heads are equipped with a pressure relief valve (providing ability to release air bubbles collected during cartridge replacement procedure) and two pressure gauges (providing pressure drop monitoring). This configuration enables the measurement of the pressure drop at the inlet and outlet connections. In addition, brass inlet/outlet inserts enable damage-free installation of pressure relief valve and pressure gauges.

System is equipped with either 20" Big Blue ® filter housings in blue colour, which protect filter cartridges against the phenomenon of algae growth in case the system is installed in a sunny location. The new innovative design of filter housing sumps has a more rounded bottom, which significantly increases resistance to stress (based on burst tests). The housings are equipped with pressure relief valves which allow the release of residual air trapped in the filter after replacing the cartridge. Depending on level of water contamination, system can be configured with sediment and carbon or specialty Big Blue® type cartridge

 Product features:

•  High quality
• Hand Built & Factory Tested
• Equipped with antibacterial and antimicrobial filter centralizing ring
• Ideal for family use as POE
• Easy to connect to cold water inlet
• Easy to install, No Electricity, No Drain Required
• Heavy-duty filter housings
• Full flow 1"ports
• Large capacity housing suitable for high flow applications
• Pressure relief/bleed on inlet side of cap
• Compatible with most 4 1/2" x 20" type cartridges available on the market
• Housings are NSF approved for structural integrity and material requirements
• Easy to install with System Specifications
• Manufactured from FDA CFR-21 compliant materials
• Made in EU with High Performance Components

Specifications:

• Housing: PP
• Cap: PP
• Inserts: brass
• Pressure relief valve: brass
• No. of pressure gauge: 2
• O-ring: NBR
• Operating Pressure: 6 bar (90 psi)
• Minimum Temperature: 2ºC (35ºF)
• Maximum Temperature: 45°C (113°F)

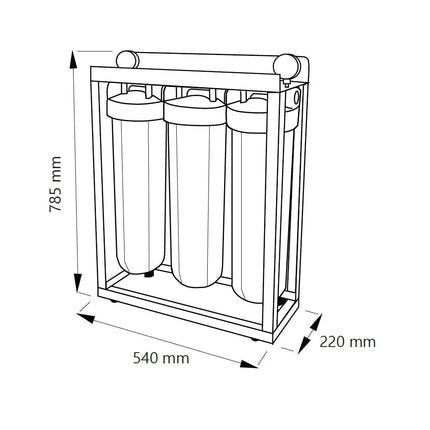

• Dimensions (H x W x L) HHBB10B: 720mm x 540mm x 220mm
• Cartridge dimensions HHBB10B: 20" x 4 1/2" (508 mm x 115 mm)

 System includes:

• 1 x metal platform
• 3 x big blue type filter housings (20")
• 2 x pressure gauges (inlet & outlet) with nickel extension to the pressure gauges

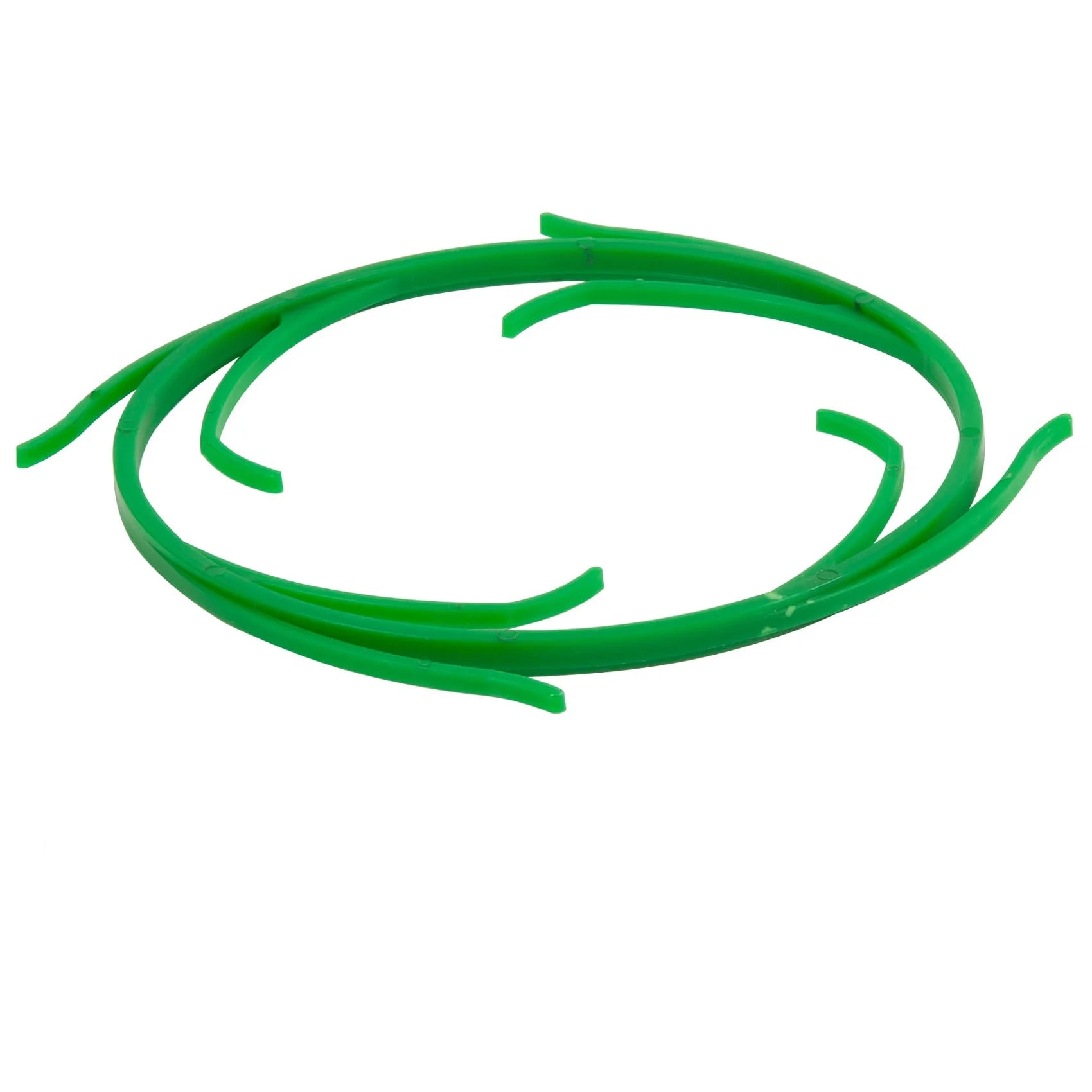

• 3 x antibacterial and antimicrobial filter centralizing ring
• 1 x full instructions

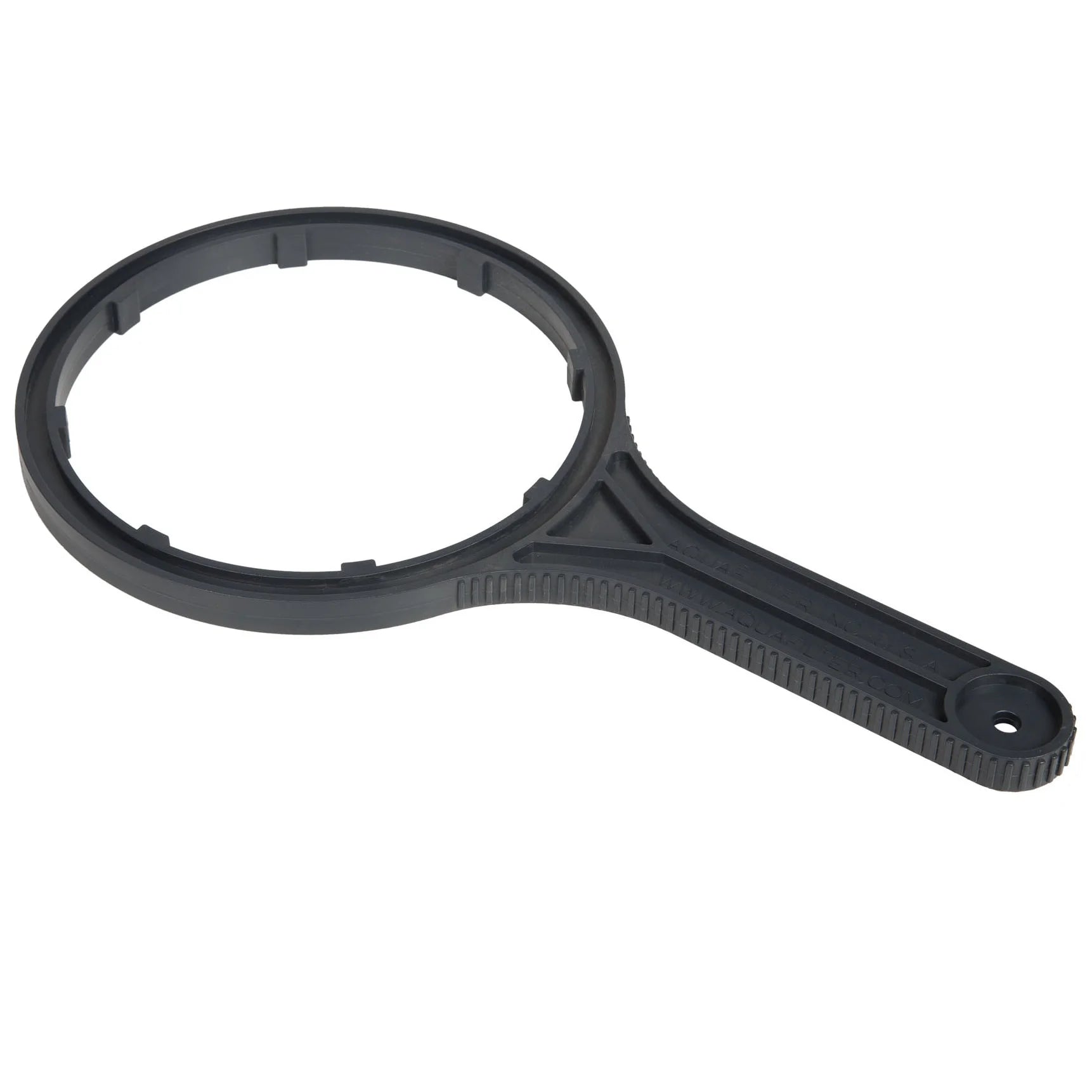

• 1 x wrench

Specifications

• Brand: Aquafilter
• Ports: 1" (Brass Inserts)
• Ideal For: Whole House
• Commercial: Commercial
• Operating Pressure: 6 bar
• Temp. Rating (°C): 2 - 45C
• Configuration: 3 Cartridge (20" x 4.5")
