Description

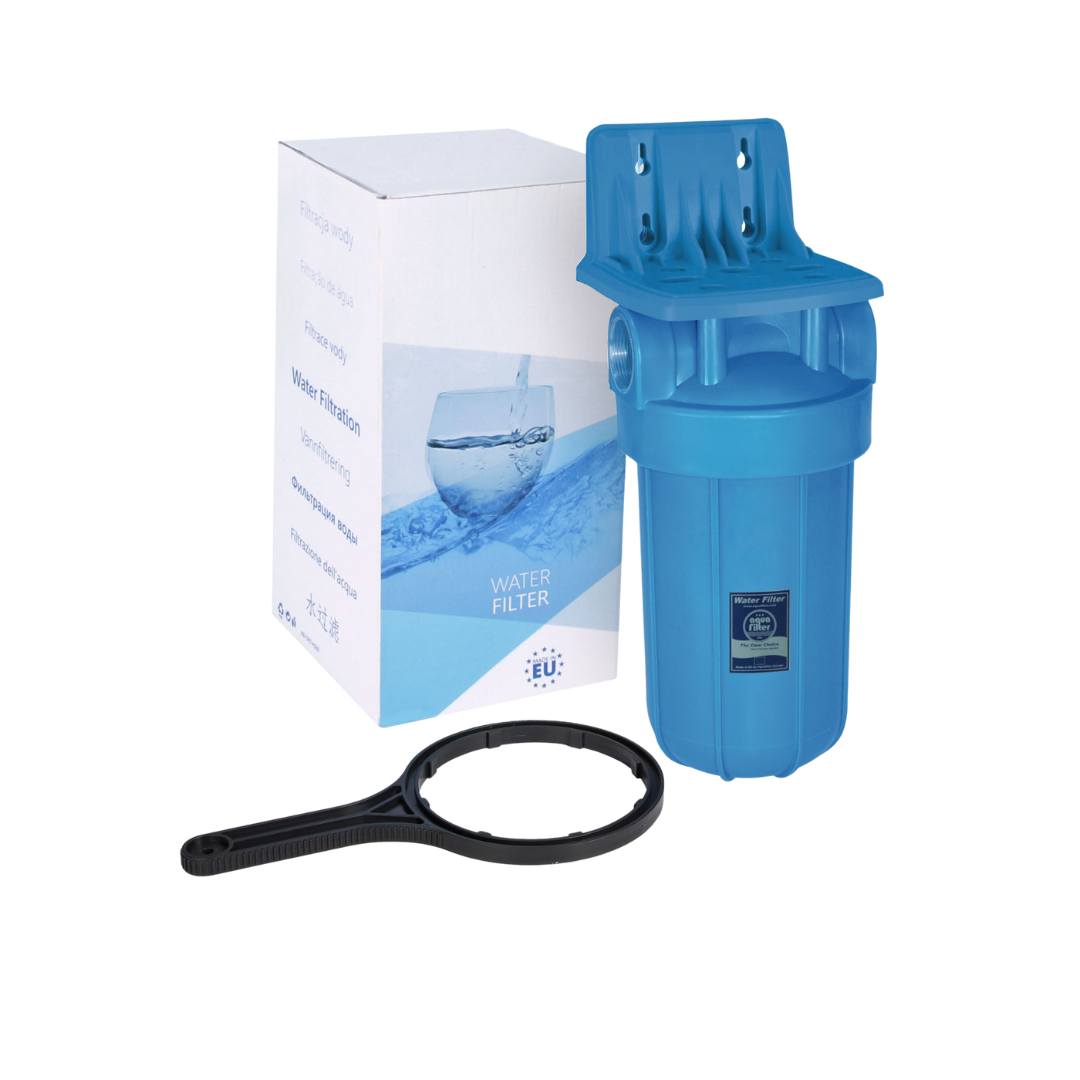

uafilter FH10B1_M 1" BSP Big Blue type filter housing offer the versatility to meet all customer large capacity filtration needs.
Aquafilter FH10B1_M 1" BSP are dedicated for high flow cold water on commercial and industrial applications.
Aquafilter FH10B1_M 1" BSP housing are compatible with a broad range of 4 1/2" x 10" type cartridges widely available on the market.
This housing can be used in a commercial setting due to its high efficiency. Filter housing consists of housing sump and filter head with brass 1” inlet/outlet inserts.
Heads are equipped with a pressure relief valve (providing ability to release air pressure collected during cartridge replacement procedure).
Features:
- High quality
- NSF certified
- FDA CFR Title 21 Compliance
- Factory Tested
- Domestic and commercial use
- Large capacity housing suitable for high flow applications
- Pressure relief/bleed on inlet side of cap
- Ideal for POE use
- Full flow 1” ports
- Made in EU with High Performance
Components
- Specifications:
- Housing: PP
- Cap: PP
- Pressure relief valve: brass
- O-ring: NBR
- Thread: 1" BSP
- Operating Pressure: 6 bar (90 psi)
- Minimum Temperature: 2ºC (35ºF)
- Maximum Temperature: 43°C
Specifications
- Brand: Aquafilter
- Port Size: 1"
- Material: Polypropylene
- Configuration: 1 Cartridge (10" x 4.5")
