Description

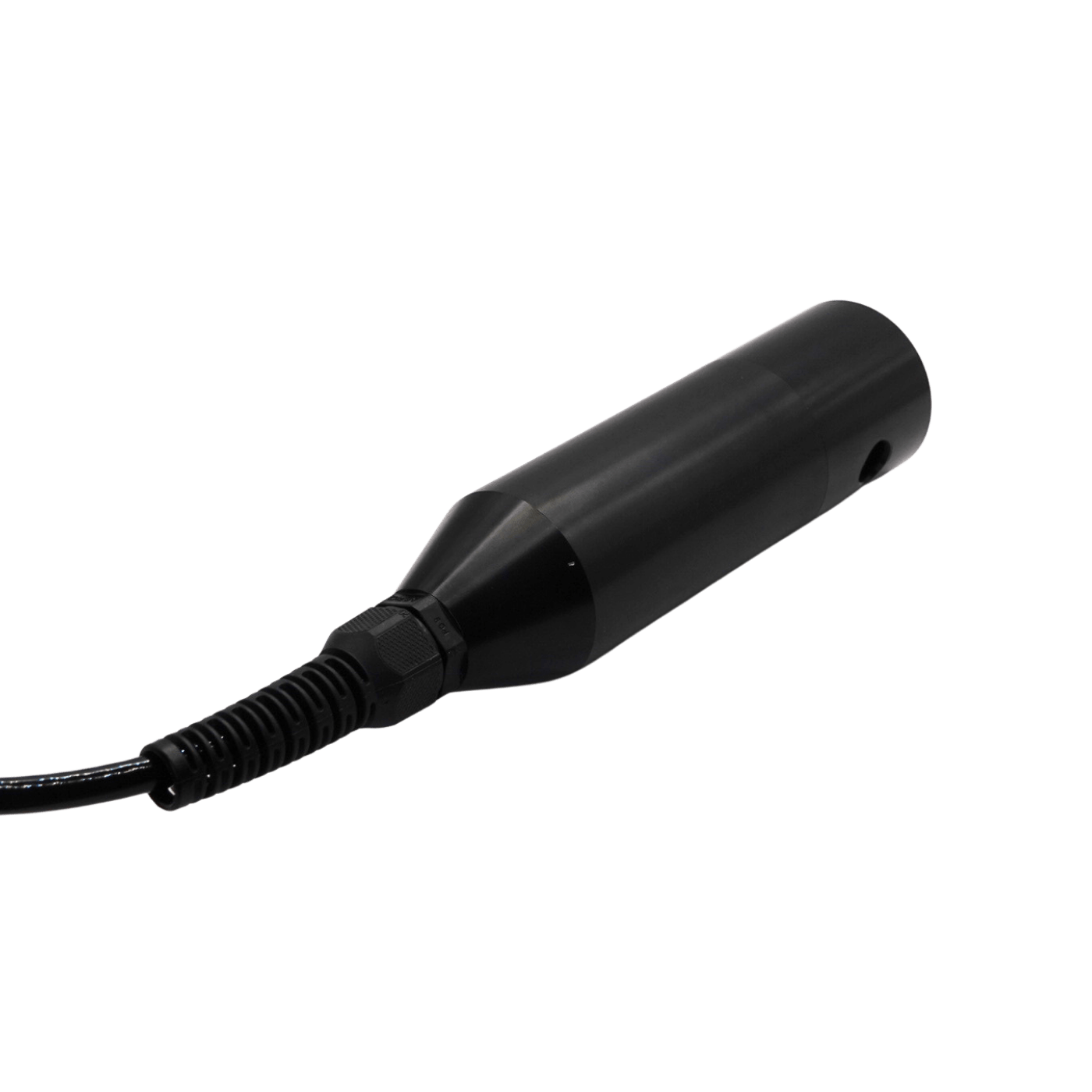

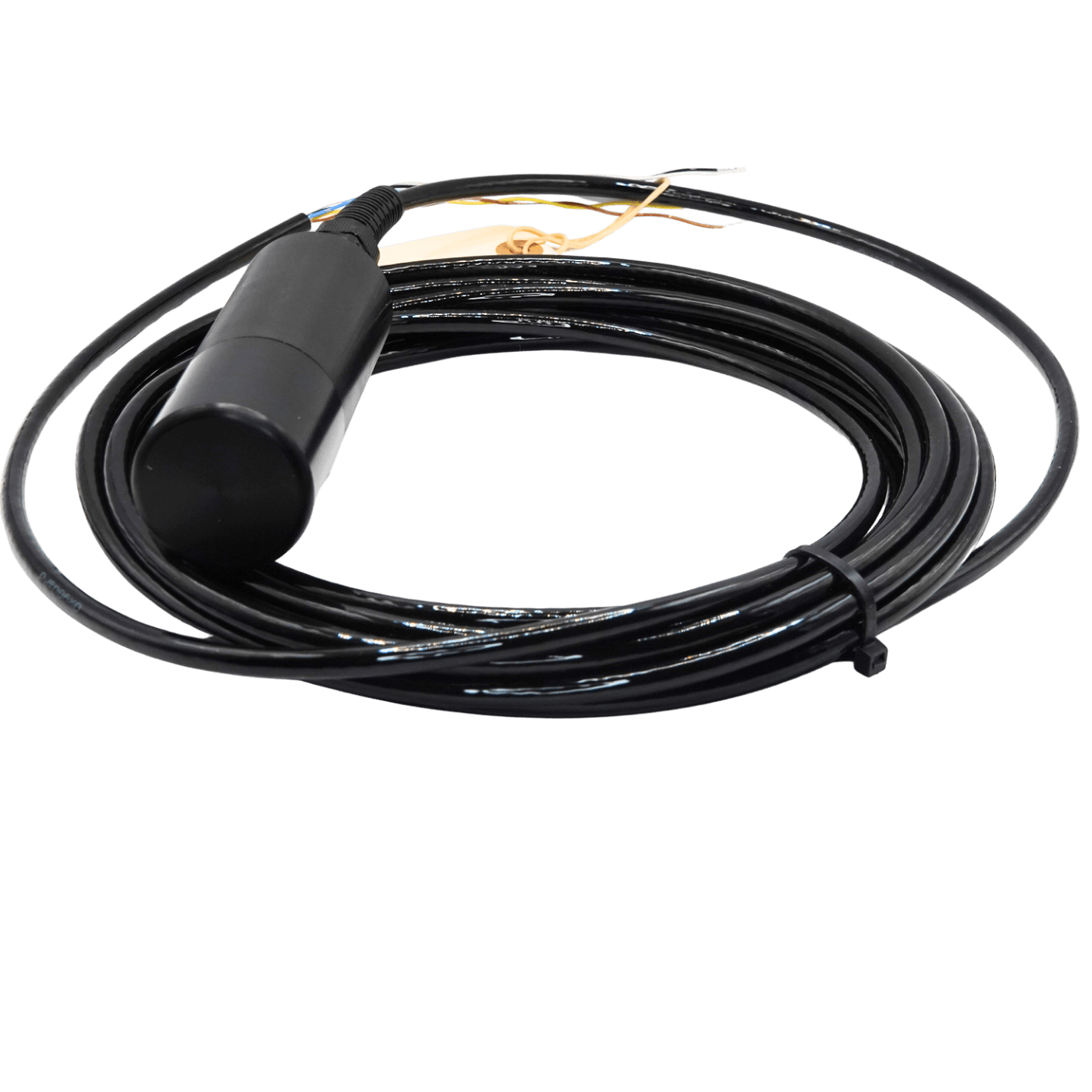

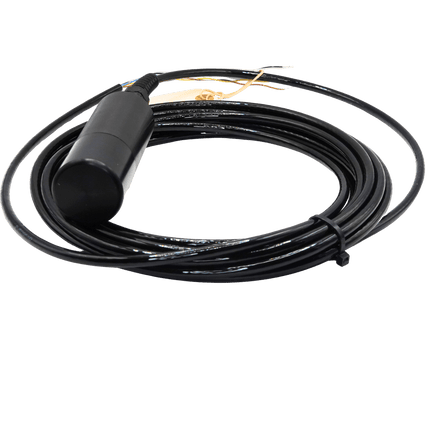

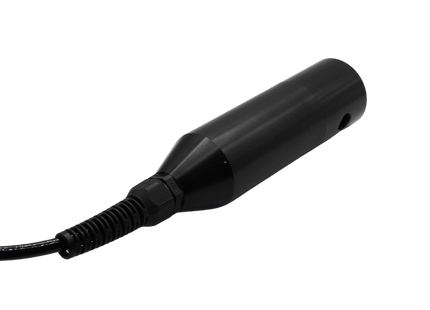

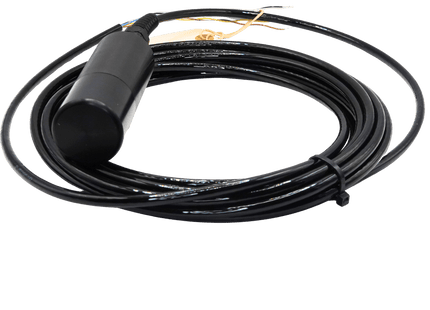

The OxyGuard Salinity Probe is specially designed for aquaculture use. Factory calibration and automatic temperature compensation make it very easy to use. It is found in two versions. One is a 3-wire 4-20 mA sensor – connect it to 24 VDC and the output varies between 4 and 20 mA according to the salinity. The other has data bus connection for use with OxyGuard Pacific.

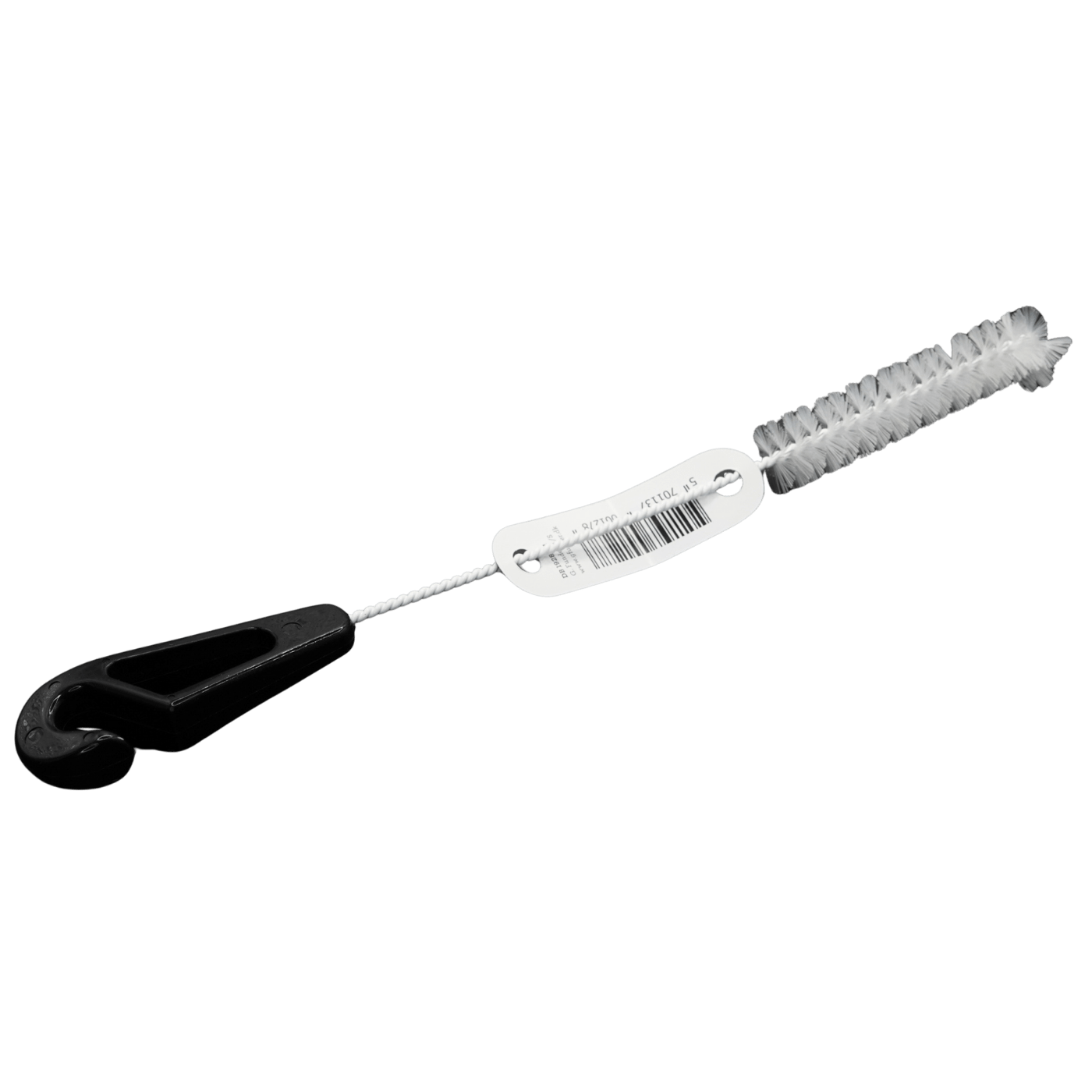

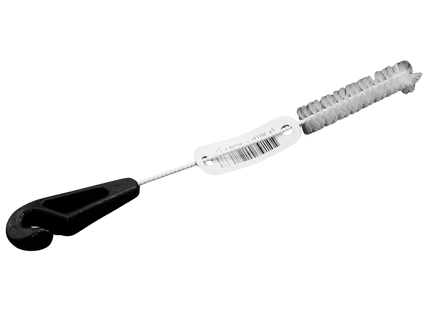

The probe is designed to be as trouble-free as possible, with features specially suited for aquacultural use. Inductive technology is used so that you don’t have to worry about deposits on the surface of the probe – all you have to do is ensure that the hole in the probe is open and relatively clean.

The probe measures salinity according to the internationally agreed PSS-78 scale (Practical Salinity Scale 78).

Specifications

• Brand: OxyGuard
• For use with: Commander
• Pacific: Pacific
• Marlin: Marlin
• PLC: PLC
• Factory Calibration: PSS-78
• Accuracy: Salinity +/- 1ppt
• Range: Salinity 0 - 50ppt
• Temp -2 - 35C: Temp -2 - 35C
• Cable Length: 7mtr
• Operating Conditions: -5 - 45C
