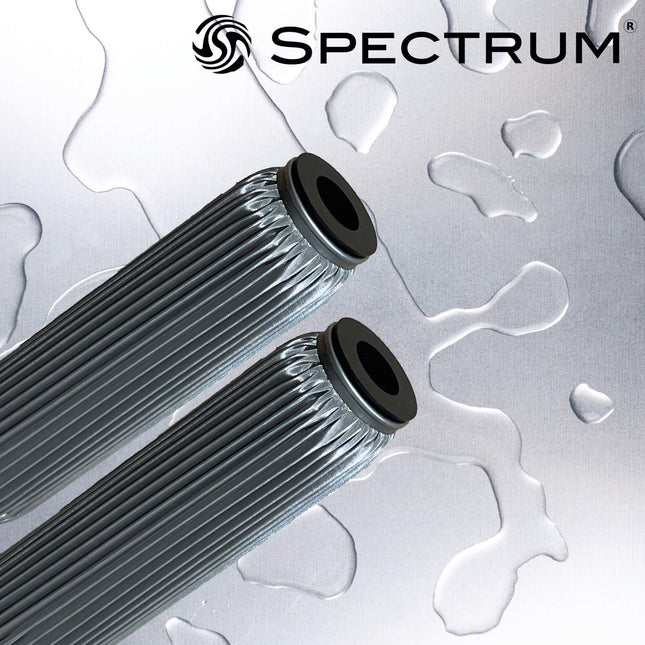

Inox stainless steel cartridges from SPECTRUM are the most durable range of cartridges available. 316L stainless steel meshes are resilient in the toughest of fluid environments of high pressure, temperature and aggressive chemicals and when used for solid particle removal, they benefit from being reusable after a cleaning process.Standard cartridges offer these benefits combined with over 3 times the surface area of the cylindrical cartridge by pleating and strengthening the stainless-steel mesh, meaning higher dirt holding for fewer cartridge cleans or for use with heavily loaded fluidsFeatures and information
Available in either a cylindrical or pleated stainless steel configuration, using no resin or glue-based binders, these reusable cartridges offer a perfect choice for high temperature applications
The cartridges are offered in 5 to 850 micron with end cap options of 222 and 226
The pleated construction of the SPS delivers an extra 0.1m2 of surface area versus the cylindrical cartridge for improved flow and dirt holding
Suited to heavily contaminated applications and as prefiltration before expensive, disposable, final filters
For challenging, industrial environments, a pleat protector cage option is available on the SPS
Applications & Industries
High temperature specification
Caustic fluids
Petrochemicals
Corrosive liquids and gases
Chemical solutions
Straining
3 Stage 10" Water purifier and iron reducing filter kitKit contains:
3 Stage 10" water filter housing
3 x Bacteriostatic centring disc - BACINIX Technology
Housing wrench
1 x FCPS5 sediment cartridge
2 x FCCFE iron reducing
Dimensions (H x W x L): 390 x 140 x 360 (mm)Minimum Temp.: 2°CMaximum Temp.: 45°CMaximum Flow: 33 lpmWorking Pressure: 6 bar
3 Stage 10" Water purifier and iron reducing filter kitKit contains:
3 Stage 10" water filter housing
3 x Bacteriostatic centring disc - BACINIX Technology
Housing wrench
1 x FCPS5 sediment cartridge
2 x FCCFE iron reducing
Dimensions (H x W x L): 390 x 140 x 360 (mm)Minimum Temp.: 2°CMaximum Temp.: 45°CMaximum Flow: 33 lpmWorking Pressure: 6 bar
Standard Service for your OxyGuard Polaris Unit. Standard Service includes
Inspection & Assessment
Replace Membrane, O-Ring and electrolyte
Probe Renovation
Calibration
Certificate of Calibration
UK Shipping of Instrument back to you.
This service is available for;
OxyGuard Polaris
OxyGuard Polaris 2
OxyGuard Polaris C
Note. Any issues/failures identified during service will be quoted for your consideration
The set includes three Ecosoft cartridges, which are required for pre-filtering the water before it reaches the membrane element in the reverse osmosis filter.
Specification
5 micron sediment filter — reduces content of sand, silt, scale and other insoluble compounds exceeding the size of 5 microns
Granular activated carbon (GAC) filter — reduces content of chlorine, chlorination by-products, natural organic matter and petrochemicals
1 micron sediment filter — reduces content of sand, silt, scale and other insoluble particles larger than 1 micron
The exclusive use of internationally recognised high-performance compressors and of the titanium coaxial heat exchanger, ensures high performances. The set of technologies used allows you to decrease noise levels and achieve the highest COP-Coefficient Of Performance, contributing to significant energy savings.
Digital Thermostat
The setting of functions is intuitive and the temperature reading is accurate, resolution 0,1°C/1°F. The setting range is 5°C - 30°C (41°F - 86°F) and the temperature is kept constant with a maximum differential of 0,5 °C/0,5 °F. Displayed temperatures are in ° C or ° F and there are security alarms.
Efficient Design
The chiller, with its innovative design, is characterized by a solid structure designed to guarantee a perfect protection against rust. The user will appreciate the functionality of the shape and the compact size, which makes the chiller ideal also for confined spaces.
Unique Features
The “TECObody-condenser system” represents another major achievement: besides performing its main function as an integral part of the structure, the condenser confers an exclusive and original design to the chiller. Moreover, it makes the use of the filter unnecessary, thus eliminating the cleaning problems normally associated with it. The heater cannot be installed in this model.
Power supply
Water temp.
Liters
US Gallons
COP**
50Hz
25° C*
150
40
1,19
*The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.5 w/lt. **Coefficient of performance
Power Supply
Power Consumption
Gas
Weight
Ambient temperature
50Hz
210 W
R134
26,9 lb
10°C - 38°C
All data are approximate and may be changed without notice by TECO.
Technical Details
Supply
230V-50Hz
Cooling Power Consumption
150 w
Ecological Gas
R134a
Min. Flow Rate
400 l/h
Tank Size
up to 150 l (water temp. 25°C - Room temp. 30°C - Heating load 0.5 w/l)
Dimensions (millimeters)
215 (w) x 361 (d) x 315 (h)
Dimensions (inches)
8.46 (w) x 14.21 (d) x 12.4 (h)
Connections
fitting 1/2" - 12mm int. tube diameter
The exclusive use of internationally recognized, high-performance rotary compressors and of the titanium heat exchanger, ensures high performance and low energy consumption. The set of technologies used allows you to decrease noise levels and achieve the highest COP - coefficient of performance - contributing to significant energy savings.
Digital Thermostat
he setting of functions is intuitive and the temperature detection is accurate, resolution 0.5°C/1°F. The setting range is 5°-40°C (41°F-104°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential 2°C/5°F. Displayed temperature is in °C or °F and there are security alarms. Possibility to control remotely the display using supplied cable, degree of protection IPX4.
Efficient Design
The chiller is characterized by a solid structure, designed to provide a perfect oxidation protection and therefore perfect for use with salt water
Unique Features
These units are also suitable for industrial applications and outdoor installation. Vertical ventilation ensures optimal operation even when working in harsh environments.
Water temp.
Ambient temp.
Working mode
Cooling Capacity
COP**
25°C*
38°C
Cooling
14,6KW
2,1
* The values reported in the table refer to the following conditions: heating load of 0.5 w/lt.** Coefficient of performance
Power Supply
Power Consumption
Gas
Weight
Ambient temperature
50Hz - 3ph
6890W
R410A
286,6 lb
5°C - 38°C
All data are approximate and may be changed without notice by TECO.
The exclusive use of internationally recognised high-performance rotary compressors and of the titanium heat exchanger, ensures high performance and low energy consumption. The set of technologies used allows you to decrease noise levels and achieve the highest COP - coefficient of performance - contributing to remarkable energy savings.
Digital Thermostat
The setting of functions is intuitive and the temperature reading is accurate, resolution 0.1 °C/0.2°F. The setting range is 5°C - 35°C (41°F - 95°F) and the temperature is kept constant with a maximum differential of 0.5°C/1°F. Displayed temperature is in °C or °F and there are security alarms.
Efficient Design
The chiller is characterized by a solid structure designed to provide a perfect protection against oxidation and it is therefore perfect to be used with salt water.
Unique Features
These units are also suitable for industrial applications. The maintenance of the air filter is quick and easy. These units have the option of up to 4 x 400W heaters to be fitted, please ask for pricing
Water temp.
Liters
US Gallons
COP**
25°C*
3000
790
2,8
8°C**
500
210
1,4
* The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.3 w/lt.** The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.1 w/lt.*** Coefficient of performance.
Power Supply
Power Consumption
Gas
Weight
Ambient temperature
50Hz
800W
R410A
86 lb
5°C - 38°C
All data are approximate and may be changed without notice by TECO
