10” in line filter housing with pressure relief valve and two o-rings, blue sump. Available with brass inserts: 1/2", 3/4" or 1" BSP. The design in combination with two O-rings (one inside filter head and second on the edge of filter sump), ensures maximum leak proof performance.FHPRN12 - 1/2"FHPRN34 - 3/4"FHPRN1 - 1"
10” in-line set: filter housing, with pressure relief valve and transparent sump, mounting bracket with screws, wrench, cartridge, bacteriostatic filter centralizing ring, instruction, color box. Available with brass inserts: 1/2", 3/4" or 1" BSP. The design in combination with two O-rings (one inside filter head and second on the edge of filter sump), ensures maximum leak proof performance.FHPR12-B1-AQ - 1/2"FHPR34-B1-AQ - 3/4"FHPR1-B1-AQ - 1"

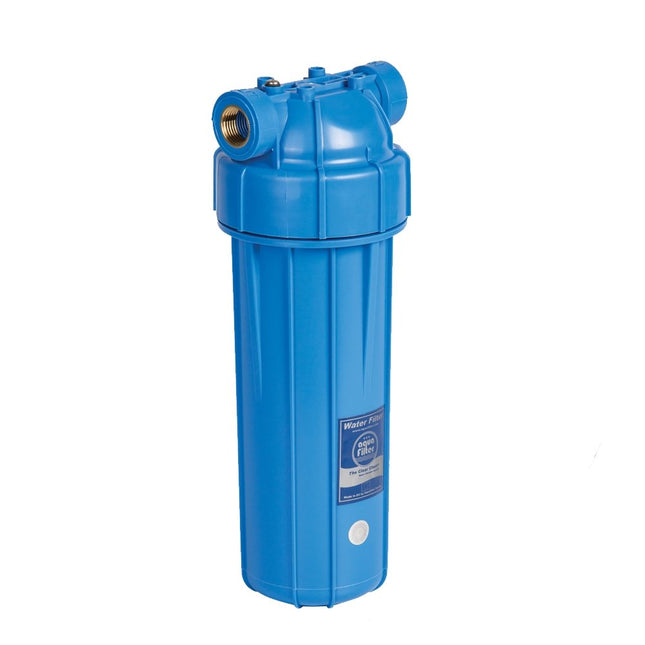

Aquafilter FHPRN34-B1-AQ 3/4" BSP filter housing is dedicated for cold water on residencial and commercial applications.
FHPRN34-B1-AQ housings are compatible with a broad range of 2 1/2" x 10" type cartridges widely available on the market. FHPRN34-B1-AQ filter housing consist of a blue sump and head with 3/4” inlet/outlet brass inserts and two O-rings (one placed around sump thread and the other inside filter head).
Heads are equipped with a pressure relief valve (providing ability to release air pressure collected during cartridge replacement procedure). Utilization of two O-rings ensures maximum leak-proof performance.
Filter housing set includes: mounting bracket with screws, sediment cartridge (FCPS5 - 5 micron), wrench and bacteriostatic filter centralizing ring.
The FHPRN34-B1-AQ housings can be mounted individually or connected in a series
Specifications:Blue sump: PPCap: PPInserts: brassPressure relief valve: brassO-ring: NBRNumber of orings: 2Thread: 3/4" BSPMaximum Pressure: 6 bar (90 psi)Minimum temperature: 2ºCMaximum temperature: 43°C
Features:- High quality- NSF certified for structural integrity and material requirements- FDA CFR Title 21 Compliance- Factory Tested- Two O-rings for maximum leak proof protection- Domestic and commercial use- Equipped with filter bracket, wrench and cartridge- Ideal for POE or POU use- Full flow 3/4” BSP ports- Made in EU with High Performance Components

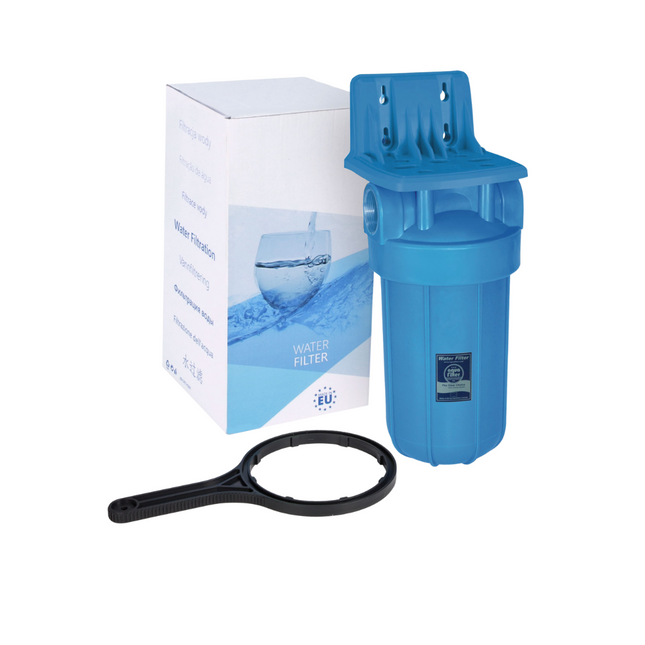

10” in-line set Big Blue type: Big Blue type filter housing, with blue sump and pressure relief valve, mounting bracket with screws, wrench, pressure gauge, bacteriostatic filter centralizing ring, instruction and colour box. Available with brass inserts: 1" BSP. Head is equipped with pressure relief valve which enables release of air accumulated after cartridge replacement.
20” in-line set Big Blue type: Big Blue type filter housing, with blue sump and pressure relief valve, mounting bracket with screws, wrench, pressure gauge, bacteriostatic filter centralizing ring, instruction and colour box. Available with brass inserts: 1" BSP. Head is equipped with pressure relief valve which enables release of air accumulated after cartridge replacement.FH20B1-B-WB - 1" BSP
Aquafilter FHPRN12-B1-AQ 1/2" BSP filter housing is dedicated for cold water on residencial and commercial applications.
FHPRN12-B1-AQ housings are compatible with a broad range of 2 1/2" x 10" type cartridges widely available on the market. FHPRN12-B1-AQ filter housing consist of a blue sump and head with 1/2” inlet/outlet brass inserts and two O-rings (one placed around sump thread and the other inside filter head).
Heads are equipped with a pressure relief valve (providing ability to release air pressure collected during cartridge replacement procedure). Utilization of two O-rings ensures maximum leak-proof performance.
Filter housing set includes: mounting bracket with screws, sediment cartridge (FCPS5 - 5 micron), wrench and bacteriostatic filter centralizing ring.
The FHPRN12-B1-AQ housings can be mounted individually or connected in a series
Specifications:Blue sump: PPCap: PPInserts: brassPressure relief valve: brassO-ring: NBRNumber of orings: 2Thread: 1/2" BSPMaximum Pressure: 6 bar (90 psi)Minimum temperature: 2ºCMaximum temperature: 43°C
Features:- High quality- NSF certified for structural integrity and material requirements- FDA CFR Title 21 Compliance- Factory Tested- Two O-rings for maximum leak proof protection- Domestic and commercial use- Equipped with filter bracket, wrench and cartridge- Ideal for POE or POU use- Full flow 1/2” BSP ports- Made in EU with High Performance Components

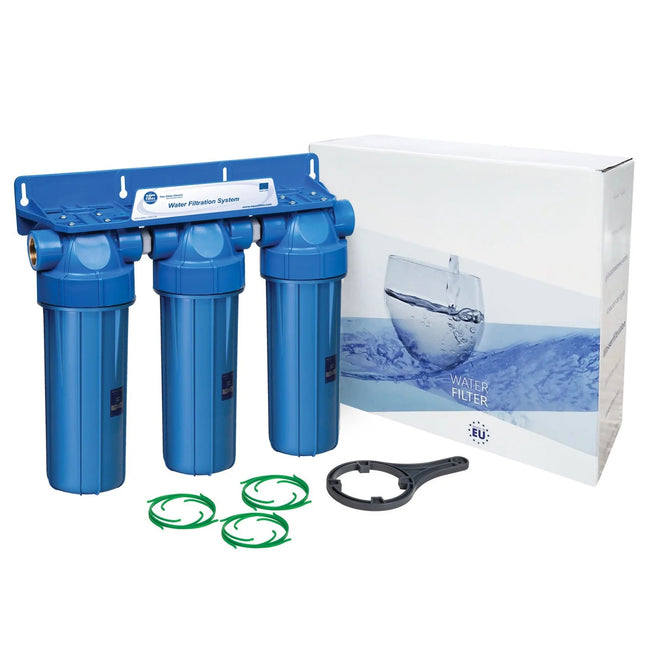

Aquafilter filter housing FHPRN34-B-TRIPLE 3/4" BSP three stage system with three blue filter heads with 3/4" BSP brass inserts, and three blue filter housing sumps, wrench and color box.Set includes:FHPRN34-B-TRIPLE 3/4" BSP system, wrench, 3 bacteriostatic centering rings, instruction and color box.Specifications:Thread Diameter: 3/4” BSPWorking Temp.: 2°C - 43°CWorking pressure: 6 bar (90 PSI)Clear Filter Housing (Sump) - Material: PETFilter Housing Cap - Material: PPNumber of O-rings inside filter housing head: 2Pressure Relief Valve: Yes
The three-element filter housing 5" FHPR5-12-WB in a set with three linear elements, has a pressure release valve and an O-ring that provide effective protection against leakage. A transparent flask allows you to visually assess the degree of contamination of the cartridge and replace it in time. The pressure relief valve makes it possible to release accumulated air after the cartridge replacement procedure, or to release pressure before replacing it. The design, which consists of 3 elements, guarantees effective sealing of the system, as well as quick replacement of the cartridge. The maximum inlet temperature should not exceed +23 ° C. Therefore, the mud trap flask is made of a special material - polyethylene terephthalate. Operating pressure: up to 6 bar.
The FHPR5-12-WB filter housing is manufactured on the latest equipment in Poland, and only from certified material with NSF and WRAS certification.
The filter housing is used for household filtration systems, and cuts directly into the cold water pipe, which provides protection for the entire water supply system, as well as more expensive water treatment systems. After all, the body of the AQUAFILTER AH-H05A series serves as a so-called barrier to polluting particles.
