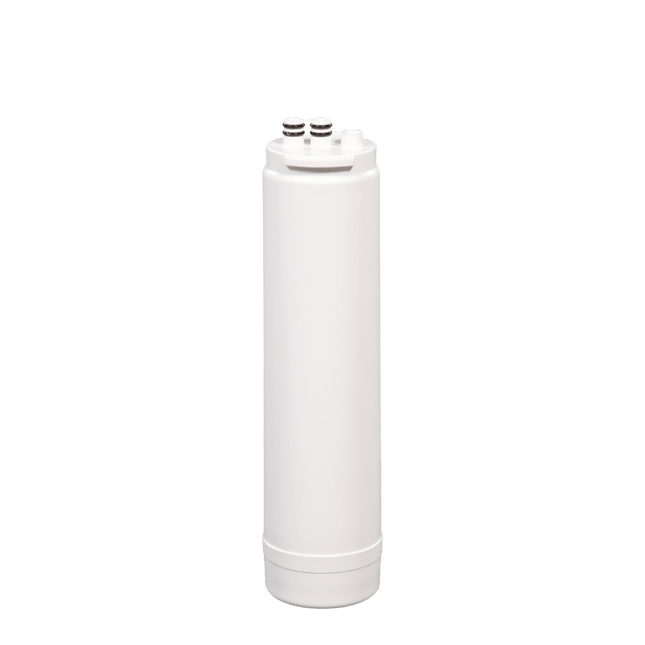

PRISM Twist-Lock single and double head configurations allow users to create tailored systems to target individual requirements. The unique patented twist and lock cartridge connections ensure a reliable and leak-free system, whereby a simple 1/4" turn automatically shuts off the inlet and outlet water channels, allowing trouble free maintenance without the need to turn off water lines.

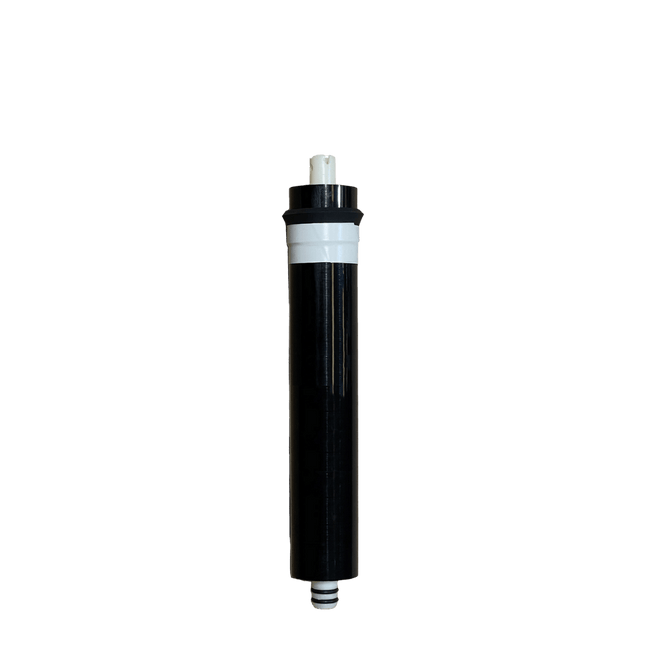

Fully automated production ensures consistency whilst maximising the usable surface area of this multi-leaf membrane. The 1.8'' ROM elements repeatedly perform to specification, with flows up to 30% higher than traditionally hand-rolled elements, which are often prone to a high failure rate in-situ. The 1.8'' membranes are a reliable choice for applications from laboratory to residential systems. For use with the ROH-1812 housing and most other 1812 housings.

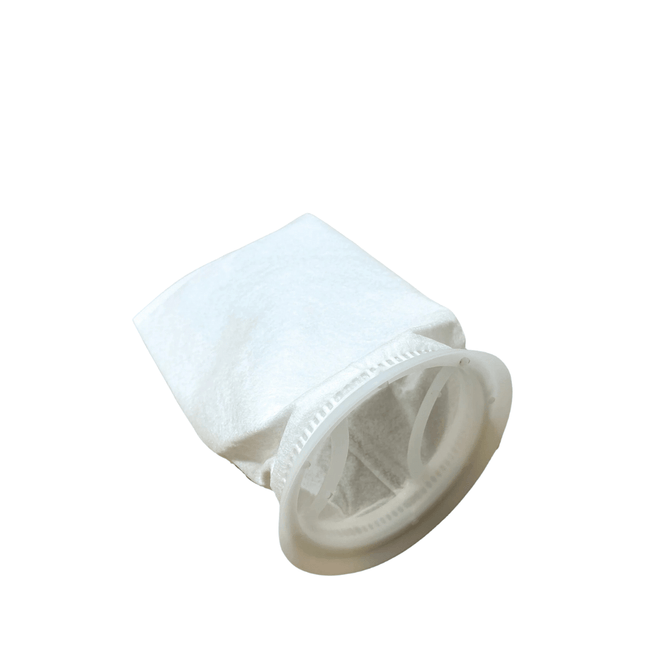

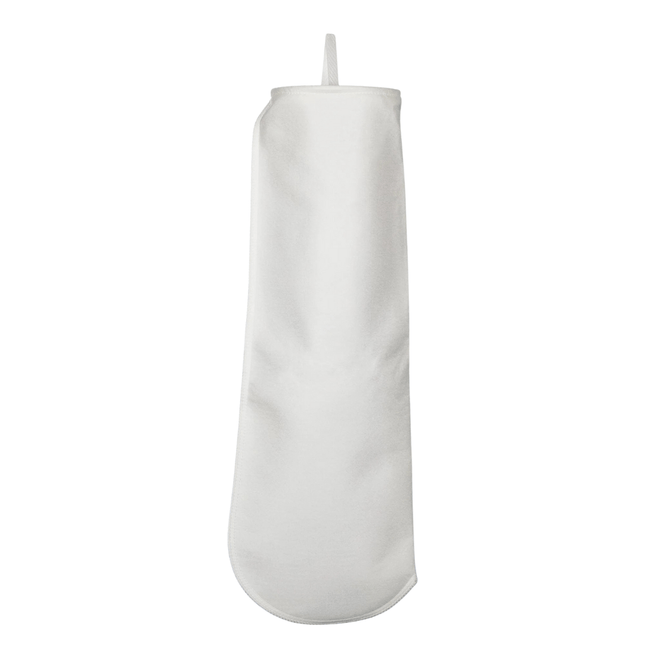

Utilising a traditional single layer manufacturing method, the PRISM range of bags offers the greatest option in terms of filtration media and neck seal type, providing a suitable solution for most bulk solid removal applications. PRISM polypropylene and polyethylene felt bags also benefit from an all welded seam construction, meaning they are capable of holding several kg's whilst maintaining filter integrity. Heavy duty handles make changeouts simple, avoiding operator contact with the unwanted filtrate.
The lowest cost spun-bonded cartridge in the PRISM range, the Value grade spun cartridge is ideally suited for batch processes where repeated change-out is required. With a graded density construction, this entry level cartridge is excellent at preventing premature blinding of other filtration systems further downstream.
Big Blue® Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high flow and heavy sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10" and 20" lengths.Big Blue and Big Black Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.Features, Options, & Benefits
Large capacity housing suitable for high flow applications
10" and 20" lengths available in opaque and clear
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar
NSF CertificationsThe 150233, 150234, 150235, 150236, 150237, 150238, 150239, 150240, 150467, 150468, 150469, and 150470 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
Big Blue® Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high flow and heavy sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10" and 20" lengths.Big Blue and Big Black Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.Features, Options, & Benefits
Large capacity housing suitable for high flow applications
10" and 20" lengths available in opaque and clear
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar
NSF CertificationsThe 150233, 150234, 150235, 150236, 150237, 150238, 150239, 150240, 150467, 150468, 150469, and 150470 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
Big Blue® Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high flow and heavy sediment applications. The extra-large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10" and 20" lengths.Big Blue and Big Black Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.Features, Options, & Benefits
Large capacity housing suitable for high flow applications
10" and 20" lengths available in opaque and clear
Pressure relief/bleed on inlet side of cap
Accepts 4-1/2" diameter cartridges
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Maximum Temperature - 38°C
Maximum Pressure - 10": 6.9 bar, 20" 6.2 bar
NSF CertificationsThe 150233, 150234, 150235, 150236, 150237, 150238, 150239, 150240, 150467, 150468, 150469, and 150470 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
Pentair 3G Standard Series Housings feature integral brackets, 20" clear housings, and caps for differential pressure gauges. They accept standard double open end (DOE) and our O-ring sealing cartridges. The O-ring design offers enhanced cartridge sealing for critical cartridge applications.
3G Standard Filter Housings are manufactured from durable polypropylene or clear Styrene-Acrylonitrile (SAN). Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications. Clear sumps are manufactured from Styrene-Acrylonitrile (SAN). They offer on-site examination of the cartridge and have excellent chemical compatibility.All are equipped with 3/4" BSP inlet and outlet ports. 3G Standard Filter Housings are available in 10" and 20" lengths and will accommodate a wide range of 2-1/4" to 3-1/8" diameter cartridges.Features, Options, & Benefits
Integral bracket and mounting boss cap version available
Available in 10" and 20" sumps in clear and opaque
Buttress threads and uniform walls for easier cartridge change and improved strength
Accepts CG o-ring sealing cartridges as well as standard DOE cartridges
Optional pressure-relief/bleed button and differential pressure gauge
Leak-proof sealing with top-seated floating Buna-N O-ring
Specifications
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainless-steel, EPDM, and polypropylene
Temperature Rating - 4.4-51.7°C
Maximum Pressure - 125 psi (8.6 bar)
Utilising a traditional single layer manufacturing method, the PRISM range of bags offers the greatest option in terms of filtration media and neck seal type, providing a suitable solution for most bulk solid removal applications. PRISM polypropylene and polyethylene felt bags also benefit from an all welded seam construction, meaning they are capable of holding several kg's whilst maintaining filter integrity. Heavy duty handles make changeouts simple, avoiding operator contact with the unwanted filtrate.
