YSI 2002 Galvanic Dissolved Oxygen sensor for the Pro Series
OverviewEasy user-replaceble sensor allows for quick sensor replacements if needed. No tools necessary. The 2002 Galvanic Dissolved Oxygen sensor comes with 5913 Cap Membrane Kit (1.25 Mil PE, Polyethylene membranes) for fast response with reliable readings. Convenient screw-on cap membranes make membrane changes simple and easy. Six-month sensor warranty.
CompatibilityThe 2002 Galvanic DO Sensor is compatible with these YSI Handheld Instruments*: • ProQuatro • Pro Plus • Pro20 • Pro20i • Pro1020 • Pro2030 *Requires Cable/Probe Assembly.

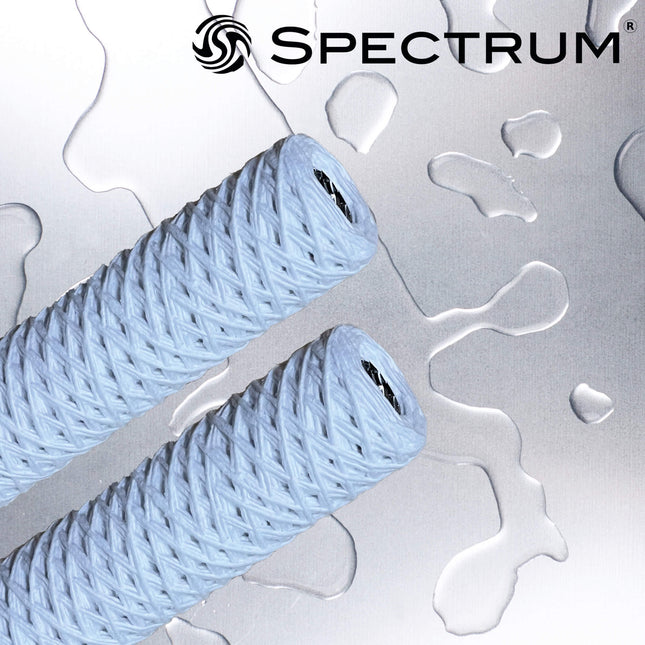

For applications with a higher operating temperature or where polypropylene is incompatible with the feed solution, the SWC cartridge provides graded particulate reduction and is supplied as standard with a stainless steel core for added strength. Due to the natural absorption properties of the cotton media, the SWC exhibits the ability to remove and retain dispersed oil making it suitable for use in degreasing applications.The SPECTRUM Wound cotton range is offered in a wide span of micron ratings (1 to 100), offering cost effective particulate filtration with a tried and tested history to prove it.High temperature on stainless steel coreCotton (max temp 120°C)Used principally where polypropylene is incompatible with the filtrate, the bleached cotton of the SPECTRUM Wound, which meets FDA standards, is specifically designed for water and food applications, with its 304 stainless steel core ensuring high temperature capabilities.Features & Information
This range is manufactured from bleached cotton and meets FDA standards for food contact
Can operate at high temperatures and maintain structure due to its 304L stainless steel core
Also available with polypropylene core (SWC-P)
Applications & Industries
Solvent
Degreasing
Electroplating cleaning baths
Potable water
Philips TUV 36 T5 HO 75W 4P-SE.
Output – 75 watts.
Length – 853 mm.
Base – 4 pins.
Life – 9000 hours.
This Philips lamp can be used as a equivalent to :
Lightech GHO846T5L/4.
Fits into various uv systems including :
Pallas UV480 / UV028124
Sita UV480,80/2, 80/3, 80/4, 80/5
Spectrum Sabre SUV-S-57
Spectrum Sabre SUV-S-132
Spectrum Sabre SUV-S-132-2
Spectrum Sabre SUV-S-250-2
Wonder T529 / E-480 / W-480 / HC-480
Wonderlite F15 OR FC15 / T565
Wonderlite FC-24 or FS-24
Bag filters are used to remove sediment, debris and gelatinous particles from liquids in higher flow or viscosity applications.Utilising a traditional single layer manufacturing method, the SPECTRUM Economic range offers the greatest option in terms of filtration media and neck seal type, providing a suitable solution for most bulk solid removal applications.Due to an all welded seam construction, Economic bags are capable of holding several kg’s in weight whilst maintaining filter integrity and their heavy duty handles make changeouts simple, avoiding operator contact with the unwanted filtrate.Each bag is manufactured from lot controlled raw media, individually labelled and finished with a total glazing process to inhibit fibre release.Features & Benefits
All sizes, micron ratings and neck ring options are available
Each bag includes a handle for fast, easy and cleaner removal
Seams on Polypropylene and Polyester felt bags are welded to prevent bypass
Materials of construction
Filter Media: Polypropylene, Polyester, Nylon
Neck Ring: Polypropylene
Construction: Thermal Bond (Nylon is sewn)
Construction notes
Economic felt bags are of welded construction, where the bag fabric is fused together to create a strong seal, reducing the possibility of loose, fibrous edges migrating downstream
Economic nylon mesh bags are heavy-duty double stitched
Certification
WRAS approved product
BS6920 compliant materials
Bag filters are used to remove sediment, debris and gelatinous particles from liquids in higher flow or viscosity applications.Utilising a traditional single layer manufacturing method, the SPECTRUM Economic range offers the greatest option in terms of filtration media and neck seal type, providing a suitable solution for most bulk solid removal applications.Due to an all welded seam construction, Economic bags are capable of holding several kg’s in weight whilst maintaining filter integrity and their heavy duty handles make changeouts simple, avoiding operator contact with the unwanted filtrate.Each bag is manufactured from lot controlled raw media, individually labelled and finished with a total glazing process to inhibit fibre release.Features & Benefits
All sizes, micron ratings and neck ring options are available
Each bag includes a handle for fast, easy and cleaner removal
Seams on Polypropylene and Polyester felt bags are welded to prevent bypass
Materials of construction
Filter Media: Polypropylene, Polyester, Nylon
Neck Ring: Polypropylene
Construction: Thermal Bond (Nylon is sewn)
Construction notes
Economic felt bags are of welded construction, where the bag fabric is fused together to create a strong seal, reducing the possibility of loose, fibrous edges migrating downstream
Economic nylon mesh bags are heavy-duty double stitched
Certification
WRAS approved product
BS6920 compliant materials
Bag filters are used to remove sediment, debris and gelatinous particles from liquids in higher flow or viscosity applications.Utilising a traditional single layer manufacturing method, the SPECTRUM Economic range offers the greatest option in terms of filtration media and neck seal type, providing a suitable solution for most bulk solid removal applications.Due to an all welded seam construction, Economic bags are capable of holding several kg’s in weight whilst maintaining filter integrity and their heavy duty handles make changeouts simple, avoiding operator contact with the unwanted filtrate.Each bag is manufactured from lot controlled raw media, individually labelled and finished with a total glazing process to inhibit fibre release.Features & Benefits
All sizes, micron ratings and neck ring options are available
Each bag includes a handle for fast, easy and cleaner removal
Seams on Polypropylene and Polyester felt bags are welded to prevent bypass
Materials of construction
Filter Media: Polypropylene, Polyester, Nylon
Neck Ring: Polypropylene
Construction: Thermal Bond (Nylon is sewn)
Construction notes
Economic felt bags are of welded construction, where the bag fabric is fused together to create a strong seal, reducing the possibility of loose, fibrous edges migrating downstream
Economic nylon mesh bags are heavy-duty double stitched
Certification
WRAS approved product
BS6920 compliant materials
Where long life, high purity and low change-outs are required, the Purtrex range meets the requirements of most non-critical applications or as an economic pre-filter.The patented construction of this pure polypropylene, surfactant-free depth filter ensures low pressure drops, with exceptional dirt holding capabilities in standard as well as large diameter options, making it the next generation replacement product to wound and wrongly specified resin-bonded cartridges.Containing no anti-static wetting agents, solvents or binders the Purtrex’s one-step manufacturing process continuously extrudes and thermally bonds pure polypropylene microfibers into a complex filter matrix. Micro-filaments plus precise fibre control maximizes the positive filtration characteristics of the graded density, tight cut-offs and maximum void areas with millions of tortuous paths.Material of Construction
Filtration Media: Polypropylene
End caps and Adapters: Polypropylene
Dimensions
Nominal Outside Diameter: 2.50 inch (6.4 cm)
Nominal Inside Diameter: 1 inch (2.5 cm)
Operating Limits
Maximum Differential Pressure:35psi (2.4bar) at =100°F (38°C)
Maximum Temperature: 160°F (71°C) at =15psid (1.0bar)
Recommended Maximum Water Flow: 5 gpm (19L/min) per 10-inch length
The AISTRO-2 is an In-line water softening cartridge with clear housing. Exchanges calcium and magnesium with sodium ions and therefore reduces water hardness. Available with 1/4″ NPT connection.
The AISTRO-2 utilizes FDA-grade sodium based strongly acidic ion-exchange resin which reduces calcium and magnesium ions content in water. Calcium and magnesium are often called “hardness minerals”. Large amount of these ions in water are responsible for a formation of the scale deposits, higher detergent consumption and stains on a glassware. In extreme situations large amount of calcium and magnesium can lead to glass etching. Hard water leaves an invisible film on a skin, which blocks pores. This in turns causes chapping, itching and dryness. Softened water contains almost no calcium & magnesium. It enables people to use lesser quantities of soap, shampoo, and skin care products. Moreover detergent consumption is reduced. Available size: 2,5″ x 12″ Working temperature: 2°C – 45°C Longevity: 3 – 6 months (depending on feed water quality).
Applications / Uses– pre RO systems – under sink – icemakers – water coolers – refrigerators – coffee makers – and other application Keep in mind when water is extremely hard, filter will be exhausted very quickly, therefore a conventional water softener should be used.
Technical Specification
Media: FDA approved ion exchange resin Connections: 1/4″ NPT Filter Life: 3 – 6 months Dimensions: 2,5″ x 12″ (74 mm x 288 mm) Flow Rate: 2.8 l/min (0.75 gpm) Operating Pressure: 6 bar (90 psi) Minimum Temperature: 2°C (35°F) Maximum Temperature: 40°C (104°F) Body & Cap: PET Excellent choice for lime scale removal and lime scale problems Made in the EU with High Quality materials
Efficient Water Filtration
The 2 Stage 10" water purifier and dechlorinator filter kit 3/4" is the perfect solution for improving the quality of your water supply. This kit effectively removes impurities and chemicals, giving you clean and safe drinking water for your household. With its two-stage filtration process, it ensures that harmful contaminants such as chlorine and sediments are filtered out, leaving you with fresh, great-tasting water every time.
Easy Installation
This water purifier and dechlorinator filter kit is designed for easy installation, making it suitable for both beginners and experienced users. The 3/4" size fits most standard water lines, allowing you to quickly set up the filter system without the need for professional help. The compact design also ensures that it won't take up much space in your kitchen or utility room, giving you convenient access to clean water whenever you need it.
Durable and Reliable
Made from high-quality materials, this water filter kit is built to last and provide you with years of reliable service. The durable construction ensures that it can withstand daily use and effectively filter out contaminants without compromising its performance. With proper maintenance, you can enjoy clean and healthy water for your entire household, making it a valuable investment for your home.
Aquafilter FCPP100 series cartridges are made of FDA-approved polypropylene string wound on a polypropylene core which strengthens the cartridge. It has a broad chemical compatibility, good temperature resistance and low cost. FCPP100 series cartridges are primarily used as the first stage of filtration of cold potable water. Cartridges are characterized by excellent sediment absorption of sand, silt, rust and suspended solids from potable water. In addition, these filter cartridges effectively protect expensive home appliances and residential pluming systems.Specifications:
Filter media: PP
Filter Life: up to 6 months
Core: PP or PET
Nominal micron rating: 100
Min. feedwater temp. 2°C
Max. feedwater temp. 65°C
Lengths: 10"
Outer diameter: 2 1/2”
Inner diameter: 1,1”
Avg. Efficiency: 90%
Aquafilter FCPS20 10" series cartridges are NSF certified using FDA approved polypropylene for material requirements. The construction of this pure polypropylene, surfactant-free depth filter ensures low pressure drops, with exceptional dirt holding capabilities. FCPS20 uses no resin binders, lubricants, antistatic or release agents or other chemical additives. The one-step manufacturing process continuously extrudes and thermally bonds pure polypropylene microfibres into a complex filter matrix. Cartridges are characterized by excellent sediment absorption of sand, silt, rust and suspended solids from potable water. Polypropylene fibers are chemical resistant and prevent development of microorganisms. In addition, these filter cartridges effectively protect expensive home appliances and residential pluming systems. FCPS20 series cartridges are an ideal true depth filters and can be used for filtration of cold potable water. Aquafilter wide range of melt-blown cartridges has multiple fiber zones. These multi-fibre zones provide a graded pore structure throughout the filter’s depth. Our filter cartridges have been designed to capture and retain contaminants throughout the entire cross section of the filter. The multiple fibre zones give our filter cartridges a major competitive advantage over other melt-blown filters with fewer pore size gradients in their structure. Aquafilter melt-blown filters demonstrate true graded depth filtration, the results are long filter service life, therefore lower consumable costs. The new, modern, automatic manufacturing equipment used to produce our wide range of melt-blown cartridge filters delivers consistently efficient filters at low costs.Specifications:
Filter media: PP
Filter life: up to 6 months
Min. feedwater temp. 2°C
Max. feedwater temp. 80°C
Nominal micron rating: 20
Lengths: 10"
Outer diameter: 2 1/2”
Inner diameter: 1.1”
Avg. Efficiency: 90%
