Description

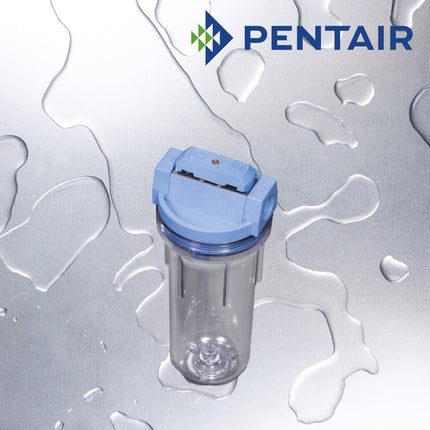

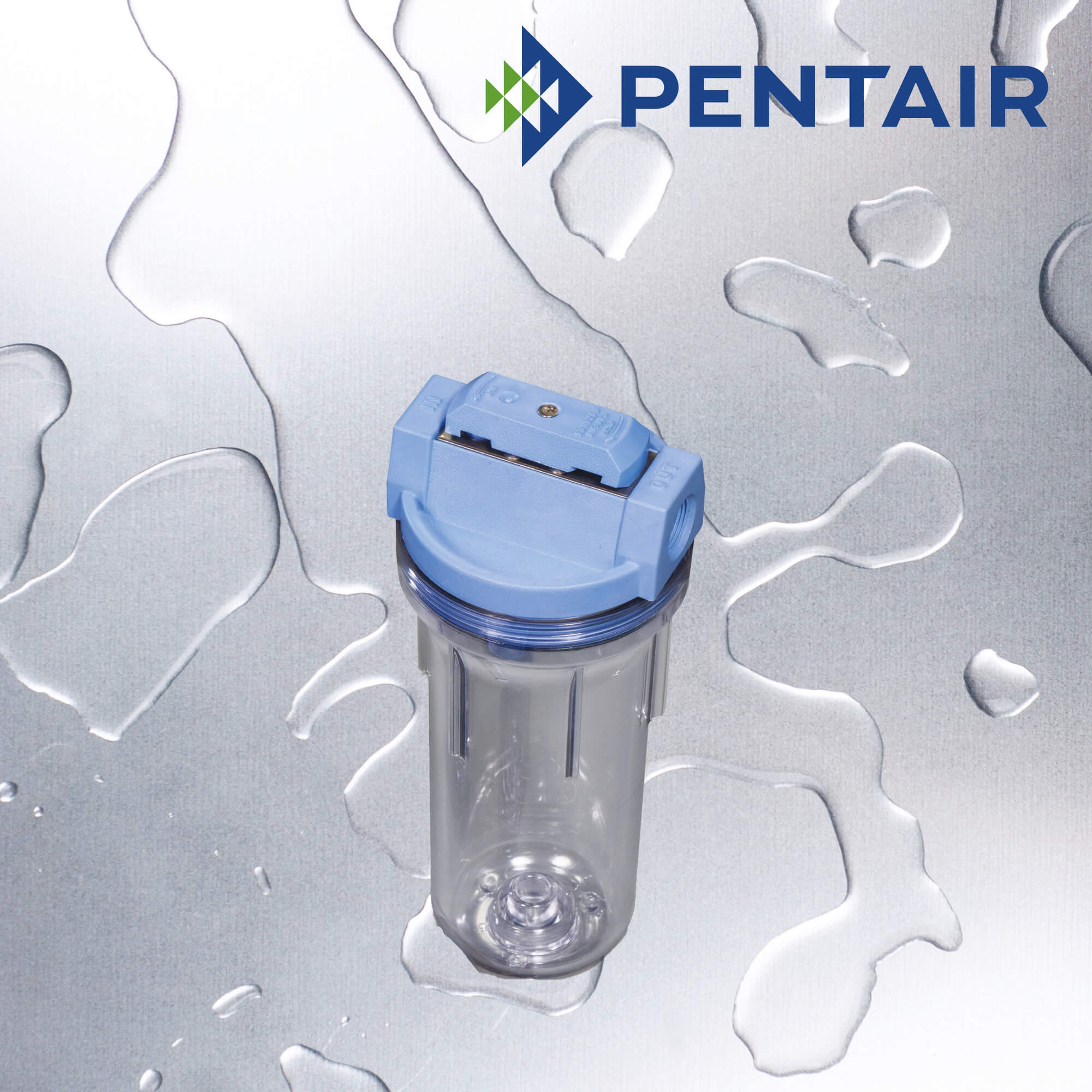

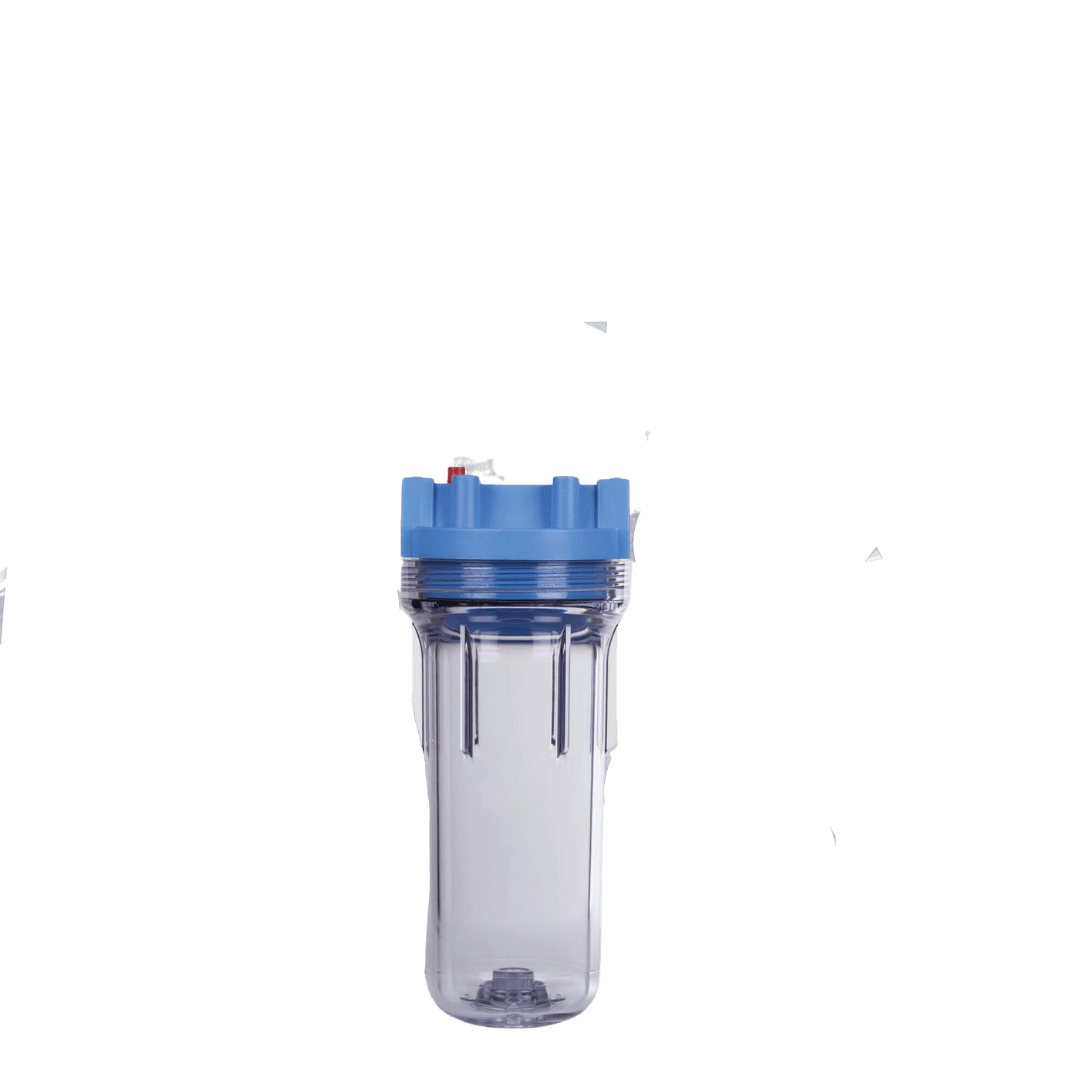

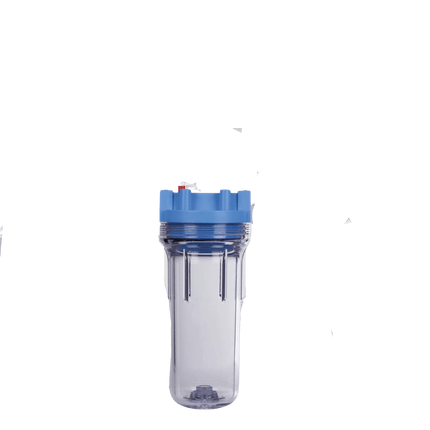

Standard Filter Housings are manufactured of a durable polypropylene or clear Styrene-Acrylonitrile (SAN). All are equipped with 3/4" NPT inlet and outlet ports. Standard Filter Housings are available in both 10" and 20" lengths and will accommodate a wide range of 2-1/2" to 2-7/8" diameter cartridges. The reinforced polypropylene cap offers an optional pressure relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges.Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications. Clear sumps offer on-site examination of the cartridge.
Opaque Standard Filter Housings are moulded from rugged reinforced polypropylene. They offer outstanding chemical compatibility and are ideal for use in a variety of low-flow applications.
Clear Standard Filter Housings offer on-site examination of flow, performance, and cartridge life. They are ideal for a variety of applications.
Features, Options, & Benefits
- Ideal for a wide range of applications, including residential, commercial and industrial
- Available in 10" and 20" lengths
- Optional pressure relief/bleed button on inlet side of cap
- Thick walls for increased strength
- Leak-proof sealing with top-seated Buna-N O-ring
- Available with clear or opaque sumps
- Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
- Cap - Reinforced polypropylene
- Button Assembly - 300-Series stainlesssteel, EPDM, and polypropylene
- Temperature Rating - 4.4-51.7°C
- Maximum Pressure - 125 psi (8.6 bar)
The 150001, 150002, 150067, 150068, 150071, 150072, 150435 and 150436 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
Specifications
- Brand: Pentair
- Port Size: 3/4"
- End-Cap: AA / DOE / CG
- Max Pressure (bar): 8.6
- Temp. Rating (°C): 51.7
- Material: Styrene Acrylonitrile (Clear)
- Configuration: 1 Cartridge (10" x 2.5")
- Max Pressure (bar): 8.6
