Description

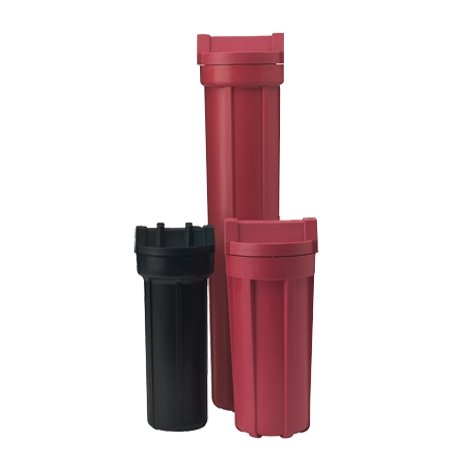

Constructed of glass-reinforced nylon, high temperature filter housings are an economical alternative to stainless and carbon steel housings.These ¾ " NPT housings from Pentair, come with a silicone O-ring and are capable of withstanding temperatures up to a maximum of 74°C and handling flow rates up to 76 lpm whilst maintaining excellent chemical compatibility.
High temperature housings are an ideal choice for a wide variety of industrial applications, including those involving organic solvents (with the exception of Ketones), seawater, alcohol, petroleum and vegetable oils.
Features, Options, & Benefits
- Ideal for a wide range of industrial applications
- Available in 10" and 20" lengths
- Excellent alternative to stainless and carbon housings
- Durable glass-reinforced nylon construction
- Housing Glass-reinforced nylon
- Cap Glass-reinforced nylon
- O-ring Slim Line Housings - FKM
- Standard Housings - Silicone
- Max. Temperature 74°C
- Max. Pressure 125 psi (8.62 bar)
Specifications
- Brand: Pentair
- Port Size: 3/4"
- End-Cap: AA / DOE / CG
- Max Pressure (bar): 8.6
- Temp. Rating (°C): 74
- Material: Glass Reinforced Nylon
- Configuration: 1 Cartridge (10" x 2.5")
- Flow Rate (lpm): 25
