Description

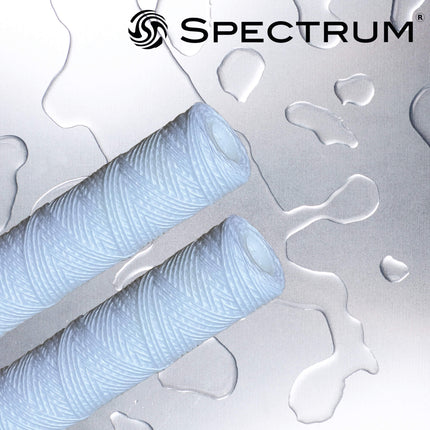

Basic technology that works, the SPECTRUM Wound range is perfectly suited as a pre-filter to protect more expensive secondary or final filtration systems.The SPECTRUM Wound polypropylene range is offered in a wide span of micronratings (0.5 to 150), offering cost effective particulate filtration with a tried and tested history to prove it.
General use, polypropylene-on-polypropylene core
Polypropylene (max temp. 65°C)
Easily the most popular cartridge media, having a broad chemical compatibility, good temperature resistance and low cost, this standard and large diameter filter is an effective solution for many applications.
Features & Information
- Exact computer controlled wound pattern delivers reliable particulate removal throughout its media
- Available in a wide range of micron sizes from 0.5 - 150 are available in standard diameter, 10" to 40" lengths
- Available in large diameter 10" and 20" lengths for reduced cartridge changeout frequency
- Constructed with polypropylene media on a polypropylene core
- Graded density construction ensures high dirt-holding capacity
- Sand, silt and rust removal
- Manufacturing chemicals
- Metal finishing
- Surface coating
- Valve, pump or nozzle protection
Specifications
- Brand: Spectrum
- Efficiency (%): 65
- End-Cap: DOE - Double Open Ended
- Diameter: Regular (2.5")
- Material: Polypropylene
- Micron: 1, 5, 10, 25, 50, 100
- Flow Rate (lpm): 60
- Dimensions: 10" x 2.5"
