Aquafilter TFC-75F RO membrane. RO membranes consists of many thin layers of porous, semi-permeable film wound around a central core. TFC-x series membranes are compatible with most RO systems available on the market. They effectively remove 96%-99% of suspended particles, most bacteria and viruses, VOCs (not smaller than 0.0001 μm) and even ions. All filtered impurities are flushed to drain. TFC-x series membranes improve overall quality of water. Keep in mind that the performance of the RO membranes depends on water temperature and applied pressure. Low temperature of influent water will affect (lower) membrane performance. Pressure has a similar effect. In such cases, booster pump is required. Aquafilter offers TFCx-F Reverse Osmosis (RO) membrane suitable for POU (Point of Use) installations. TFCx-F membranes consist of many thin layers of porous, semi-permeable film wounded around a central core. Its small pore size (0.0001 micron) allows TFCx-F acting as a barrier against suspended particles, most of bacteria and viruses, ions and VOC’s present in your tap water. Finally, all filtrate impurities are flushed to drain, ensuring a continuous and efficient supply of clean water. TFCx-F membranes are compatible with most RO systems present on the market.

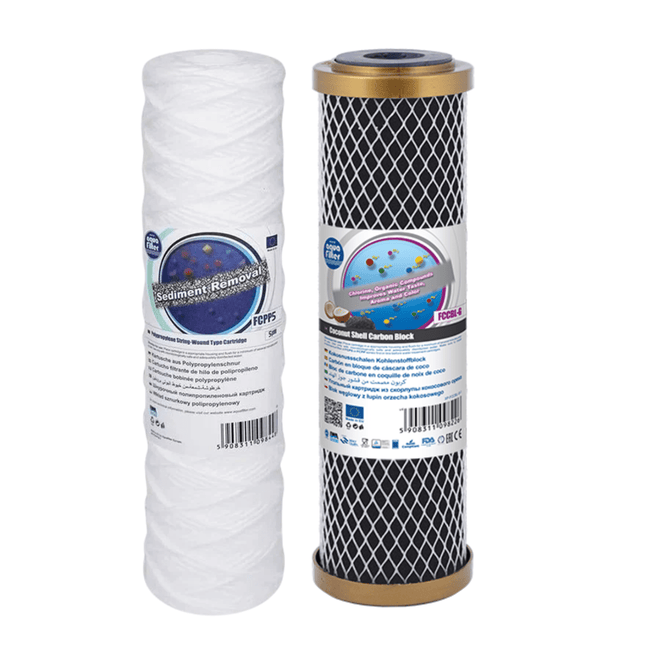

Aquafilter set of 2 replacement cartridges set:
FCPP5 - polypropylene yarn cartridges
FCCBL-G - silver series carbon block
Filter Life: up to 6 months or 37000 litres
Enhance Your Aquarium Water Quality
Upgrade your aquarium system with a set of 2 replaceable in-line cartridges designed for the RX-AFRO3-AQ RO system. These cartridges utilize reverse osmosis technology to effectively remove sediment and impurities from your water, providing a cleaner and healthier environment for your aquatic pets.
Efficient Sediment Removal
With a focus on sediment removal, these cartridges ensure that your aquarium water is crystal clear and free of debris. The innovative design allows for easy installation and replacement, making maintenance a breeze. Say goodbye to cloudy water and hello to a pristine aquatic habitat.
Long-lasting Performance
Each cartridge in this set is built to last, providing you with reliable and consistent results for your aquarium system. Enjoy peace of mind knowing that your water filtration needs are taken care of with these high-quality in-line cartridges. Invest in the health of your aquatic friends with this essential filtration solution.
Effective Water Filtration
Upgrade your water purifier with the 3 Stage 10" Water Filter Softening and Iron Reducing Filter Kit. This set includes a high-quality 1/2" filter that is designed to provide superior water filtration. Say goodbye to impurities and contaminants in your drinking water, and enjoy clean and fresh water with every use.
Water Softening Benefits
Not only does this filter kit remove harmful substances from your water, but it also helps to soften hard water. By reducing the presence of minerals like calcium and magnesium, you can prevent scale build-up in your pipes and appliances, prolonging their lifespan. Experience the difference of silky smooth water that is gentle on your skin and hair.
Iron Reduction Technology
Say goodbye to rusty, discoloured water with the iron reduction technology in this filter kit. This innovative system effectively removes iron from your water supply, preventing staining and unpleasant odours. Enjoy crystal-clear and odour-free water that is safe for your entire household to drink and use. Upgrade your water purifier today and experience the benefits of cleaner, healthier water.
3 Stage 10" Water purifier dechlorinator and iron reducing filter kitKit contains:
3 Stage 10" water filter housing
3 x Bacteriostatic centring disc - BACINIX Technology
Housing wrench
FCPS5 sediment cartridge
FCCBL-P carbon block
FCCFE iron reducing
Dimensions (H x W x L): 390 x 140 x 360 (mm)Minimum Temp.: 2°CMaximum Temp.: 45°CMaximum Flow: 33 lpmWorking Pressure: 6 bar
Improve your incoming water quality with the Aquafilter 10" Big Blue 2-Stage Water Filter and Iron-Reducing Kit. Designed for point-of-entry installation, this high-capacity filtration system combines sediment filtration with a dedicated iron-reducing cartridge to help address suspended particles and iron-related water problems.
The system uses two large-format 10" x 4.5" Big Blue cartridges in a robust twin-housing configuration. With 1" BSP connections, pressure gauges and a metal mounting platform, it provides a practical filtration solution for suitable domestic and other compatible water-supply applications.
Two Stages of Water Filtration
The system combines two complementary filtration stages.
Stage 1 – FCPS5M10B Sediment Filter
The supplied Aquafilter FCPS5M10B sediment cartridge provides the first stage of filtration. It is designed to capture suspended particles such as sand, rust, silt and other particulate matter.
This initial stage helps reduce sediment entering the second filter and protects downstream filtration media from premature loading.
Stage 2 – FCCFE10BB Iron-Reducing Cartridge
The Aquafilter FCCFE10BB cartridge is the dedicated iron-reduction stage. It is designed to help reduce iron in the water supply, which can contribute to discolouration, metallic taste and staining on plumbing fixtures, laundry and sanitaryware.
Actual iron-reduction performance depends on the incoming iron concentration, the form of iron present, water pH and chemistry, flow rate and cartridge capacity. For best results, assess the water before selecting a treatment system.
High-Capacity Big Blue Housing Design
The 10" Big Blue format uses wider 4.5" cartridges than standard slimline 10" filter housings. This provides a larger filtration area and makes the system suitable for applications requiring a higher-capacity cartridge format.
The twin-housing assembly includes 1" BSP brass connection inserts, two pressure gauges and a pressure relief valve. The gauges allow pressure conditions across the system to be monitored, helping identify increasing pressure drop as cartridges become loaded.
Kit Contents
This kit includes:
2-stage 10" Big Blue water filter housing with 1" BSP ports
2 x BACINIX bacteriostatic centering discs
2 x pressure gauges
Metal mounting platform
Filter housing wrench
1 x FCPS5M10B sediment cartridge
1 x FCCFE10BB iron-reducing cartridge
Technical Specifications
Specification
Details
Brand
Aquafilter
System type
2-stage Big Blue filtration system
Housing configuration
Twin 10" Big Blue housings
Cartridge configuration
2 cartridges
Cartridge size
10" x 4.5"
Sediment cartridge
FCPS5M10B
Iron-reducing cartridge
FCCFE10BB
Inlet and outlet
1" BSP
Housing material
Polypropylene (PP)
Cap material
Polypropylene (PP)
Connection inserts
Brass
Pressure relief valve
Brass
O-ring material
NBR
Pressure gauges
2
Listed operating pressure
Maximum 6 bar
Listed maximum flow rate
110 litres per minute
Minimum water temperature
2°C
Maximum water temperature
45°C
The listed maximum flow rate is a stated product specification, not a guaranteed operating flow through every cartridge and installation. Actual performance will depend on water pressure, incoming water quality, cartridge condition and plumbing arrangements.
Who Is This Filter Kit Suitable For?
This system is worth considering where the incoming water supply contains suspended sediment and iron that needs to be reduced.
It may be suitable for:
Properties experiencing iron-related water staining.
Water supplies containing visible sediment or rust particles.
Domestic point-of-entry filtration installations.
Users looking for a twin-housing Big Blue system with dedicated sediment and iron-reduction stages.
The correct treatment depends on the water analysis. Where iron is present in different forms, or where concentrations are particularly high, additional treatment or pre-treatment may be required.
Installation and Maintenance
Install the system on a suitable incoming water supply, ensuring that the plumbing connections, operating pressure and available installation space are compatible with the system.
The two pressure gauges provide a useful way to monitor pressure conditions. An increasing pressure difference can indicate that the cartridges are becoming loaded and may need attention.
Cartridge replacement frequency depends on incoming water quality, iron concentration, sediment loading and water consumption. Inspect and replace cartridges according to the manufacturer's recommendations and actual operating conditions.
Before purchasing replacement cartridges, check the model numbers to ensure compatibility:
FCPS5M10B sediment cartridge
FCCFE10BB iron-reducing cartridge
Frequently Asked Questions
What does this 2-stage Big Blue filter remove?
The system combines a sediment cartridge for suspended particles with an iron-reducing cartridge designed to reduce iron. The performance of each stage depends on the incoming water and cartridge operating conditions.
Does this system reduce iron in well water?
The FCCFE10BB cartridge is designed for iron reduction. However, well water can contain different forms of iron and other dissolved minerals. A water analysis is recommended before selecting the system.
Does the filter remove rust?
The sediment cartridge can capture suspended rust particles. The iron-reducing cartridge is intended to address iron in the water, but its effectiveness depends on the water chemistry and iron concentration.
Does this system remove chlorine?
This kit is configured for sediment and iron reduction. It should not be purchased as a dedicated chlorine-reduction system. Consider a suitable activated carbon dechlorinator if chlorine reduction is required.
Does this system soften hard water?
No. This is an iron-reduction and sediment-filtration kit, not a conventional water softener. Choose a suitable softening system if hardness reduction is your main requirement.
What replacement cartridges does it use?
The supplied cartridges are the FCPS5M10B sediment filter and FCCFE10BB iron-reducing filter. Check these model numbers when ordering replacements.
What size are the filter cartridges?
The system uses two 10" x 4.5" Big Blue cartridges.
Can it be installed as a whole-house filter?
It is designed for point-of-entry installation, allowing incoming water to be treated before distribution around the property. Correct system sizing and plumbing design are important to achieve suitable flow.
How often should the cartridges be changed?
There is no universal replacement interval. Cartridge life depends on water quality, iron concentration, sediment levels and consumption. Monitor pressure and follow the cartridge manufacturer's replacement guidance.
Does filtered water automatically become safe to drink?
No. This system should not be assumed to remove bacteria, viruses or every potential contaminant. Water safety depends on the original water quality and the treatment processes required.
Choose the Right Big Blue Filtration System from GroAqua
The GroAqua 10" Big Blue 2-Stage Water Filter and Iron-Reducing Kit combines sediment filtration and dedicated iron-reduction media in a high-capacity twin-housing system.
With 1" BSP connections, pressure monitoring and replaceable 10" x 4.5" cartridges, it offers a practical filtration option for suitable water supplies where sediment and iron reduction are priorities.
This 85W UV unit with full WRAS approval is ideal for commercial and light industrial applications. They're great for multi-residency water treatment plants, building services and process water applications where the water quality is already pretty good, but there's either an existing bacteriological issue, or there's a high risk that needs safeguarding against.
As a quick summary, the difference between the systems are as follow:
Altima – Basic system. Essentially comes with an LED to show it’s turned on.
Proxima – Upgraded system. Comes with display, alarms and countdown timer.
Maxima – Fully loaded. Comes with extra UV sensor and temperature sensor functionality.
The thing to remember in all this is that the system will function exactly the same way regardless of the system you have. The controller will turn the UV lamp on and monitor it. The functionality of the Proxima and Maxima systems are for ease of use and monitoring purposes. If in doubt, go for the Proxima system, they’re the most popular.
As you can see from the table, they will treat up to 225l/min or 13.0m³/hour and are fine to be left turned on for long periods (during periods of shutdown for example) but care will be needed when flow resumes, the heated water in the reactor will be quite hot.
This system comes with everything you need to fit and run it for the whole first year and is WRAS approved. The next thing you'll need to buy for the system is the lamp replacement that it'll need after the first year of operation.
This 85W UV unit with full WRAS approval is ideal for commercial and light industrial applications. They're great for multi-residency water treatment plants, building services and process water applications where the water quality is already pretty good, but there's either an existing bacteriological issue, or there's a high risk that needs safeguarding against.
As a quick summary, the difference between the systems are as follow:
Altima – Basic system. Essentially comes with an LED to show it’s turned on.
Proxima – Upgraded system. Comes with display, alarms and countdown timer.
Maxima – Fully loaded. Comes with extra UV sensor and temperature sensor functionality.
The thing to remember in all this is that the system will function exactly the same way regardless of the system you have. The controller will turn the UV lamp on and monitor it. The functionality of the Proxima and Maxima systems are for ease of use and monitoring purposes. If in doubt, go for the Proxima system, they’re the most popular.
As you can see from the table, they will treat up to 225l/min or 13.0m³/hour and are fine to be left turned on for long periods (during periods of shutdown for example) but care will be needed when flow resumes, the heated water in the reactor will be quite hot.
This system comes with everything you need to fit and run it for the whole first year and is WRAS approved. The next thing you'll need to buy for the system is the lamp replacement that it'll need after the first year of operation.
This 55W UV unit with full WRAS approval is ideal for family homes with more than 4 bedrooms. They're also great for other light applications where the water quality is relatively good, but there is a bacteriological issue.
As a quick summary, the difference between the systems are as follow:
Altima – Basic system. Essentially comes with an LED to show it’s turned on.
Proxima – Upgraded system. Comes with display, alarms and countdown timer.
Maxima – Fully loaded. Comes with extra UV sensor and temperature sensor functionality.
The thing to remember in all this is that the system will function exactly the same way regardless of the system you have. The controller will turn the UV lamp on and monitor it. The functionality of the Proxima and Maxima systems are for ease of use and monitoring purposes. If in doubt, go for the Proxima system, they’re the most popular.
As you can see from the table, they will treat up to 75l/min or 4.5m³/hour and are fine to be left turned on for long periods (during periods of shutdown for example) but care will be needed when flow resumes, the heated water in the reactor will be quite hot.
This system comes with everything you need to fit and run it for the whole first year and is WRAS approved. The next thing you'll need to buy for the system is the lamp replacement that it'll need after the first year of operation.
This 55W UV unit with full WRAS approval is ideal for family homes with more than 4 bedrooms. They're also great for other light applications where the water quality is relatively good, but there is a bacteriological issue.
As a quick summary, the difference between the systems are as follow:
Altima – Basic system. Essentially comes with an LED to show it’s turned on.
Proxima – Upgraded system. Comes with display, alarms and countdown timer.
Maxima – Fully loaded. Comes with extra UV sensor and temperature sensor functionality.
The thing to remember in all this is that the system will function exactly the same way regardless of the system you have. The controller will turn the UV lamp on and monitor it. The functionality of the Proxima and Maxima systems are for ease of use and monitoring purposes. If in doubt, go for the Proxima system, they’re the most popular.
As you can see from the table, they will treat up to 75l/min or 4.5m³/hour and are fine to be left turned on for long periods (during periods of shutdown for example) but care will be needed when flow resumes, the heated water in the reactor will be quite hot.
This system comes with everything you need to fit and run it for the whole first year and is WRAS approved. The next thing you'll need to buy for the system is the lamp replacement that it'll need after the first year of operation.
This 55W UV unit with full WRAS approval is ideal for 3-4 bedroom family homes with no more than 2 bathrooms. They're also great for other light applications where the water quality is relatively good, but there is a bacteriological issue.
As a quick summary, the difference between the systems are as follow:
Altima – Basic system. Essentially comes with an LED to show it’s turned on.
Proxima – Upgraded system. Comes with display, alarms and countdown timer.
Maxima – Fully loaded. Comes with extra UV sensor and temperature sensor functionality.
The thing to remember in all this is that the system will function exactly the same way regardless of the system you have. The controller will turn the UV lamp on and monitor it. The functionality of the Proxima and Maxima systems are for ease of use and monitoring purposes. If in doubt, go for the Proxima system, they’re the most popular.
As you can see from the table, they will treat up to 42l/min or 2.5m³/hour and are fine to be left turned on for long periods (during periods of shutdown for example) but care will be needed when flow resumes, the heated water in the reactor will be quite hot.
This system comes with everything you need to fit and run it for the whole first year and is WRAS approved. The next thing you'll need to buy for the system is the lamp replacement that it'll need after the first year of operation.
This 25W UV unit with full WRAS approval is ideal for 1-3 bedroom homes with no more than 1 bathroom. They're also great for other light applications where the water quality is relatively good, but there is a bacteriological issue.
As a quick summary, the difference between the systems are as follow:
Altima – Basic system. Essentially comes with an LED to show it’s turned on.
Proxima – Upgraded system. Comes with display, alarms and countdown timer.
Maxima – Fully loaded. Comes with extra UV sensor and temperature sensor functionality.
The thing to remember in all this is that the system will function exactly the same way regardless of the system you have. The controller will turn the UV lamp on and monitor it. The functionality of the Proxima and Maxima systems are for ease of use and monitoring purposes. If in doubt, go for the Proxima system, they’re the most popular.
As you can see from the table, they will treat up to 1m³/hour and are fine to be left turned on for long periods (overnight for example).
This system comes with everything you need to fit and run the system for the whole first year and is WRAS approved. The next thing you'll need to buy for the system is the lamp replacement that it'll need after the first year of operation.
Effective Sensor Calibration
Ensure accurate CO2 measurements with our Calibration Solution for OxyGuard sensors. This solution is specifically designed to calibrate OxyGuard CO2 sensors, providing reliable and precise readings for your monitoring system. By calibrating your sensors regularly with our solution, you can trust that your data is accurate and actionable.
Convenient to Use
Our Calibration Solution is easy to use, making the calibration process quick and efficient. Simply follow the instructions provided with the solution to calibrate your OxyGuard CO2 sensors with ease. With this convenient solution, you can maintain the performance of your sensors without any hassle, ensuring optimal functionality at all times.
Reliable Performance
Trust in the reliability of our Calibration Solution to keep your OxyGuard CO2 sensors in top working condition. Our solution is formulated to deliver consistent and dependable results, allowing you to monitor CO2 levels accurately and effectively. With our Calibration Solution, you can have peace of mind knowing that your sensors are performing at their best.
Commander probes, 4 wire cable, for Commander, Pacific and Atlantic: D0243C: For mg/l and % saturation measurements. Also measures temperature
*Accessories are shipped with every OxyGuard probe. You will thus be able to change the membrane if you manage to damage it during installation. Otherwise the accessories can be enough for up to 5 years’ use.
Where long life, high purity and low change-outs are required, the Purtrex range meets the requirements of most non-critical applications or as an economic pre-filteR.
Description
The patented construction of this pure polypropylene, surfactant-free depth filter ensures low pressure drops, with exceptional dirt holding capabilities in standard as well as large diameter options, making it the next generation replacement product to wound and wrongly specified resin-bonded cartridges. Containing no anti-static wetting agents, solvents or binders the Purtrex’s one-step manufacturing process continuously extrudes and thermally bonds pure polypropylene microfibers into a complex filter matrix. Micro-filaments plus precise fibre control maximizes the positive filtration characteristics of the graded density, tight cut-offs and maximum void areas with millions of tortuous paths.
ConstructionFiltration Media: Polypropylene End caps and Adapters: Polypropylene
Operating LimitsMaximum Differential Pressure:35psi (2.4bar) at =100°F (38°C) Maximum Temperature: 160°F (71°C) at =15psid (1.0bar) Recommended Maximum Water Flow: 5 gpm (19L/min) per 10-inch length
All PRISM pressure vessels are available as the vessel only (Value Grade) to be paired with specialist distribution systems and control valves. Customising the vessel for basic operation is simply achieved with the addition of a head and distribution system (Core Grade). Value grade vessels come with a base and 2 1/2" threaded neck and are packaged individually for secure transportation.
The PRISM FC-DSPP Plus Spun Polypropylene Cartridge represents the pinnacle of performance within the PRISM spun filter range. Designed for superior efficiency and extended service life, the Plus grade stands out as the most versatile option available. Its deep grooved construction maximizes surface area, dramatically increasing dirt holding capacity, while the integral support core enhances durability, pressure tolerance, and temperature resistance. Perfect for demanding applications, it is available with a range of end-caps to ensure secure sealing and effortless installation in multi-round housings.
Key Features
Enhanced EfficiencyRated at 85% efficiency, the Plus grade surpasses both Value and Core versions in filtration performance and lifespan.
Deep Grooved ConstructionThe innovative deep grooves significantly increase surface area, boosting dirt holding capacity and extending service intervals.
Integral Support CoreReinforces the cartridge, allowing it to perform reliably under higher pressure and temperature conditions.
Versatile ConfigurationsAvailable with multiple end-cap options for operator convenience and secure sealing in multi-round housing systems.
Broad Application RangeIdeal for a variety of filtration scenarios requiring high durability and prolonged performance.
Technical Specifications
Material: Polypropylene
Micron Ratings: 1, 5, 10, 20, 50
Efficiency: 85%
Length Options: 4 7/8", 9 7/8", 20", 30", 40", 9 3/4" Large Diameter, 20" Large Diameter
Diameter: Regular (2.5"), Large Diameter (4.5")
Why Choose the PRISM FC-DSPP Plus Spun Polypropylene Cartridge?
The PRISM FC-DSPP Plus Spun Polypropylene cartridge is trusted for offering unmatched efficiency, dirt loading capacity, and resilience. Its advanced deep grooved design ensures optimal filtration, while the addition of an integral support core provides the durability needed for heavy-duty applications. Whether used in residential, commercial, or industrial setups, the Plus grade cartridge delivers consistently outstanding performance. With its extended lifespan and versatile options, this filter is a reliable and cost-effective choice for any water filtration system.
Achieve superior water quality with the FM-MRDI-25L-C PRISM CORE RANGE mixed bed DI resin. Specially designed for the window wash industry, this resin delivers spot-free rinses and exceptional purity, making it a reliable choice for applications requiring high-quality water.
Key Features
High-Quality Water ProductionAchieves a water quality of 10 megohms with ultra-low conductivity values, ensuring spot-free results and optimal performance.
Mixed Bed Cation/Anion ResinCombines type 1 strong acid cation and strong anions, delivering consistent results in impurity removal and conductivity reduction.
Efficient Impurity RemovalEffectively eliminates mineral content, impurities, and total organic carbon (TOC) from water, ensuring pure water is produced economically.
Standout Benefits
Low Conductivity LevelsThe advanced resin mix ensures minimal conductivity values, making it ideal for sensitive applications that demand high-purity water.
Economic OperationRemoves contaminants efficiently, reducing costs related to high-grade water production without compromising quality.
Spot-Free Rinse ResultsPerfect for the window wash industry, delivering impeccable, streak-free surfaces by eliminating unwanted residues.
Applications
The FM-MRDI-25L-C resin is perfect for:
Spot-free rinses in the window wash industry
Pure water production in critical applications
High-quality water systems requiring low conductivity
Efficient Sediment Filtration
Upgrade your water filtration system with the PRISM Size 2 Polyester Bag Filter. This high-quality filter is designed to efficiently remove sediment and impurities from your water, providing you with clean and fresh water for all your needs. The Polypropylene Neck ensures a secure fit and reliable performance, making it a durable and reliable option for your filtration needs.
Easy to Use Water Filter
The PRISM Size 2 Polyester Bag Filter is easy to install and replace, making maintenance a breeze. With its innovative design and superior filtration capabilities, this filter is an essential addition to any water filtration system. Say goodbye to contaminants and enjoy pure, clean water with this efficient and effective bag filter.
The PRISM FC-DSPP Core Spun Polypropylene Cartridge is a reliable and cost-effective solution for efficient particulate reduction in water treatment systems. Engineered with precision, its unique mini-grooved construction offers a significantly higher surface area and superior dirt holding capacity compared to standard filters. Designed for versatility, the Core DSPP is available in various sizes, including large diameter configurations, to suit a wide range of applications and system requirements.
Key Features
Mini-Grooved ConstructionInnovative design with mini-grooves increases the cartridge's surface area, enhancing dirt holding capacity and filtration efficiency.
General Particulate ReductionIdeal for reducing sediment, dirt, and other particulates, providing cleaner and clearer water.
Flexible Sizing OptionsChoose from lengths including 4 7/8", 9 7/8", 20", 30", and 40" for regular diameters, as well as large diameter options like 9 3/4" and 20".
Large Diameter ConfigurationsThe Core DSPP-L versions offer higher dirt loading potential and increased flow rates, making them suitable for higher demand systems.
High Efficiency and PerformanceRated at 80% efficiency, it is available in multiple micron ratings (1, 5, 10, and 20) to meet varied filtration needs.
Technical Specifications
Material: Polypropylene
Micron Ratings: 1, 5, 10, 20
Efficiency: 80%
Length Options: 4 7/8", 9 7/8", 20", 30", 40", 9 3/4" Large Diameter, 20" Large Diameter
Diameter: Regular (2.5"), Large Diameter (4.5")
End-Cap: DOE (Double Open Ended)
Why Choose PRISM FC-DSPP Core Spun Polypropylene Cartridge?
The PRISM FC-DSPP Core Spun Polypropylene cartridge is specifically designed to deliver premium filtration performance at an affordable price. Its advanced mini-grooved design ensures greater dirt loading capacity and extended service life, reducing maintenance and replacement costs. For systems requiring higher flow rates and larger dirt holding potential, the large diameter options of the Core DSPP-L are an excellent choice. Perfectly suited for residential, commercial, and industrial applications, this versatile cartridge delivers consistent results without compromise.
Get the filtration performance you need at an unbeatable price with the PRISM FC-DSPP Value Spun Polypropylene Filter. Designed for reliability and efficiency, this budget-friendly option is perfect for various filtration applications.
Key Features
AffordabilityThe most cost-effective spun-bonded cartridge in the PRISM range, ideal for frequent replacements.
Graded Density ConstructionReduces premature blinding of downstream filtration systems, enhancing overall efficiency.
Optimized for Batch ProcessesSuitable for applications that require frequent cartridge changes, ensuring smooth operations.
Material DurabilityMade with high-quality polypropylene for long-lasting and consistent performance.
Double Open Ended DesignFeatures DOE end-caps for seamless compatibility with most standard housings.
Versatile Applications
Whether you’re managing batch processes or guarding downstream systems from premature clogging, the PRISM FC-DSPP is built to deliver. It’s a reliable choice for industries that demand affordable, efficient, and high-performing filtration solutions.
High-Quality Water Filtration
The Prism Size 1 Polypropylene Bag Filter with a flanged neck is the perfect solution for your water filtration needs. Made of durable polypropylene material, this bag filter effectively removes impurities and contaminants from water, ensuring you have clean and clear water for your various applications. Whether you need to filter drinking water or industrial wastewater, this bag filter delivers reliable and efficient filtration results.
Easy Installation and Maintenance
This bag filter is designed for easy installation and maintenance, making it a convenient choice for both residential and commercial use. The flanged neck allows for secure attachment to your filtration system, providing a tight seal to prevent leaks and ensure optimal performance. With regular maintenance, this bag filter can provide long-lasting filtration efficiency, saving you time and money on replacement filters.
Wide Range of Applications
The Prism Size 1 Polypropylene Bag Filter is suitable for a wide range of applications, including water treatment plants, food and beverage processing, and chemical processing facilities. Its versatile design and high filtration capacity make it a versatile option for various industries. Trust in this bag filter to deliver consistent and reliable filtration results for your specific water filtration needs.
High-Quality Water Filter
Introducing our Prism Size 3 Polypropylene Bag Filter, designed with a flanged neck for easy installation. This filter has a 10 Micron rating, making it perfect for removing impurities from your water supply. Trust this filter to deliver clean and clear water every time.
Long-Lasting Performance
Constructed from durable polypropylene material, this filter is built to last. The high-quality construction ensures that it can effectively trap particles as small as 10 Microns, providing you with peace of mind knowing that your water is free from contaminants. Say goodbye to cloudy or odorous water with this reliable filter.
Easy Installation and Maintenance
With its flanged neck design, this water filter is easy to install and replace. Simply follow the instructions provided, and you'll have clean water in no time. Regular maintenance is also a breeze, ensuring that your filter continues to perform at its best. Upgrade your water filtration system with the Prism Size 3 Polypropylene Bag Filter today.
For industrial batch processes that value efficiency and flexibility, the PRISM FC-DBPC Core Carbon Block Filter delivers reliable water filtration. Designed for environments where extended service life isn’t a priority, this carbon block filter excels in removing organic contaminants like benzene. Built with acid-washed bituminous carbon, it ensures cleaner operation by targeting ash removal and reducing rinse-up fines commonly found with non-acid-washed carbon. Available in multiple micron sizes, this filter suits a variety of applications where sediment can impact performance.
Key Features
Specialized for Industrial Batch ProcessesIdeal for applications where longer filter life isn’t required but effective filtration is critical.
Acid-Washed Bituminous CarbonResults in a cleaner operation with fewer rinse-up fines and effective ash removal.
Microporous StructureTargets larger organic molecules such as benzene, ensuring clean, contaminant-free water.
Flexibility with Micron SizesChoose from 1, 5, and 10-micron ratings to suit different sediment removal needs.
Durable and Reliable DesignDouble open-ended caps (DOE) and EPDM seals improve strength and compatibility in diverse setups.
Why Choose the PRISM FC-DBPC Core Filter?
The PRISM FC-DBPC Core Carbon Block Filter is the ultimate solution for industrial workflows requiring versatile and cost-effective filtration. Its acid-washed carbon construction targets organic contaminants, while its multiple micron size options address challenges like sediment buildup. Reliable, adaptable, and efficient, this filter is built to meet the demands of batch processing environments with precision.
The PRISM FC-DBPC Value Carbon Block Filter is the ideal solution for price-conscious industrial applications. Designed specifically for batch processes, this 5-micron carbon block filter prioritizes cost without compromising on essential performance. Constructed with premium materials, it delivers moderate filtration efficiency and durability, making it a smart choice for industries seeking reliable filtration at a budget-friendly price.
Key Features
Affordable Price PointPerfect for price-sensitive markets, this filter focuses on essential functionality without unnecessary costs.
Optimized for Batch ProcessesExcellent for industrial applications where the full chlorine capacity of the cartridge is not utilized.
High Binder Content for StrengthThe robust construction ensures a strong and reliable cartridge designed to withstand industrial use.
Chlorine and Sediment FiltrationOffers fair chlorine reduction efficiency and medium sediment removal for balanced performance.
Durable, Long-Lasting MaterialsMade from acid-washed bituminous carbon and features double open-ended (DOE) caps with EPDM seals for reliable operation.
Technical Specifications
Technology: Carbon Block Cartridge
Material: Acid Washed Bituminous Carbon
Performance: Fair Chlorine | Medium Sediment
Micron Rating: 5
Length: 9 3/4", 20"
Diameter: Regular (2.5")
End Cap: DOE (Double Open Ended)
Seal Material: EPDM
Why Choose the PRISM FC-DBPC Filter?
Built for efficiency and affordability, the PRISM FC-DBPC Value Carbon Block Filter balances performance and cost to meet industrial needs. With its high binder content, this filter delivers a strong cartridge design, ideal for scenarios that do not require maximum chlorine capacity. It’s the honest answer for industries needing dependable filtration at a reasonable price.
Spare part cover, supplied with pre-mounted aluminium hinges
FIAP Belt Feeder Standard Lid features excellent weather resistance properties. As spare part, it is supplied with pre-mounted aluminium hinges.
Replacement lid for FIAP Belt Feeder Standard
High-quality plastic
Excellent weather resistance
Spare part for FIAP Belt Feeder
Being spare part for FIAP Belt Feeder, the high-precision movement made from stainless steel with its sapphire bearing is also available separately. We offer FIAP Belt Feeder Clock Unit with a run time of 4, 12 or 24 hours.
Auxiliary conveyor belt (3 kg), for FIAP Belt Feeder Standard
The auxiliary conveyor belt for FIAP Belt Feeder Standard is available in two different versions (3 and 5 kg) and includes drive shaft, drive journal for clock unit and aluminium angle bracket.
Deliver efficient disinfection and peace of mind with the SPECTRUM Sabre UV Lamp 14W. Designed specifically for the SUV-S-8-1/2 system, this highly effective UV lamp uses advanced technology to disrupt microorganism DNA, ensuring clean and safe water for every use.
Key Features
Optimized Power OutputThe lamp operates at a modest yet effective 14 watts, ensuring thorough disinfection without excessive energy consumption.
Precision EngineeringWith a length of 287mm, this UV lamp is tailored to fit seamlessly into the SUV-S-8-1/2 system for smooth and effective performance.
Advanced UV Light TechnologyEmits shortwave UV light at 253.7nm (254nm) to disrupt microorganism DNA, halting their ability to grow and reproduce for consistently clean water.
Premium Quality MaterialsCrafted with durable glass quartz sleeves and a user-friendly 4-pin base, this lamp is built to last and ensures quick and easy installation.
Dependable LongevityDelivers reliable performance for up to 12 months or 9,000 hours, helping maintain water safety over time.
