Pentair Standard Bag Vessel Assemblies keep your system on stream longer by reducing bag filter change time. They are made of lightweight corrosion resistant polypropylene to give you all the strength you need without the weight.Install as a duplex system for totally uninterrupted flow rates. All PBH Series Vessels come complete with gauge, wrench and 3/8" drain valve. The single large ACME thread closure ensures quick opening and positive sealing.Filter bags are available in polypropylene felt, absolute-rated high efficiency polypropylene and nylon monofilament mesh—ideal for filtering and straining applications from 1-800 microns.Moulded from rugged reinforced polypropylene, Bag Vessel Filter Housings offer outstanding chemical compatibility and are ideal for use in a variety of low-flow applications. These applications include residential prefiltration, food service, along with commercial and industrial applications for water filtration and chemical filtration. They are equipped with a black reinforced polypropylene cap.
The Enviro ET300 air pump helps to increase the amount of oxygen in the water. Providing a clean, oil-free air source it is exceptionally quiet in operation, as low as 35dB even when running continuously. The ET300 is easy to service with a competitively priced service kit and is also supported by our two year warranty. With its weatherproof, robust construction it makes an ideal wastewater pump.
Max Flow: 300 Litres per minute
Max Pressure: 0.20 bar
Weight: 18.0 kilograms
Dimensions (L x W x H): 348.5 x 230.5 x 219mm
Connector Size: 26mm
Power: 275W
The exclusive use of internationally recognised high-performance rotary compressors and of the titanium heat exchanger, ensures high performance and low energy consumption. The set of technologies used allows you to decrease noise levels and achieve the highest COP - coefficient of performance - contributing to remarkable energy savings.
Digital Thermostat
The setting of functions is intuitive and the temperature reading is accurate, resolution 0.1 °C/0.2°F. The setting range is 5°C - 35°C (41°F - 95°F) and the temperature is kept constant with a maximum differential of 0.5°C/1°F. Displayed temperature is in °C or °F and there are security alarms.
Efficient Design
The chiller is characterized by a solid structure designed to provide a perfect protection against oxidation and it is therefore perfect to be used with salt water.
Unique Features
These units are also suitable for industrial applications. The maintenance of the air filter is quick and easy. These units have the option of up to 4 x 400W heaters to be fitted, please ask for pricing
Water temp.
Liters
US Gallons
COP**
25°C*
6000
1580
3
8°C**
1000
260
1,4
* The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.3 w/lt.** The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.1 w/lt.*** Coefficient of performance.
Power Suppl
Power Consumption
Gas
Weight
Ambient temperature
50Hz
900W
R410A
88,2 lb
5°C - 38°C
All data are approximate and may be changed without notice by TECO
Pentair Standard Bag Vessel Assemblies keep your system on stream longer by reducing bag filter change time. They are made of lightweight corrosion resistant polypropylene to give you all the strength you need without the weight.Install as a duplex system for totally uninterrupted flow rates. All PBH Series Vessels come complete with gauge, wrench and 3/8" drain valve. The single large ACME thread closure ensures quick opening and positive sealing.Filter bags are available in polypropylene felt, absolute-rated high efficiency polypropylene and nylon monofilament mesh—ideal for filtering and straining applications from 1-800 microns.Moulded from rugged reinforced polypropylene, Bag Vessel Filter Housings offer outstanding chemical compatibility and are ideal for use in a variety of low-flow applications. These applications include residential prefiltration, food service, along with commercial and industrial applications for water filtration and chemical filtration. They are equipped with a black reinforced polypropylene cap.
Not all harmful impurities in potable water supplies can be detectable by taste and/or smell alone and even low levels of nitrates are toxic.The Ion-X nitrate series of cartridges is the most cost effective, point-of-use treatment, specifically designed to target and remove nitrates. The process removes the harmful nitrates by exchanging them for harmless chloride ions as they pass through the resin cartridge.Maximum Temperature: 37°CFeatures & Information
Works well even when high levels of sulphates are present
Ideal where nitrate levels exceed UK national contamination limits (50mg/L)
Features & Information
Boreholes
Fish keeping
Ion-X from SPECTRUM is an effective range of contaminant removal cartridges.When present in water, heavy metals can have harmful effects on health as well as interfering with the manufacture and effectiveness of sensitive applications, i.e. the manufacture of pharmaceutical products. This cost effective range provides a simple and proficient solution for the removal of heavy metals such as lead, zinc, mercury, copper, chromium, etc. from potable water supplies.Maximum Temperature: 37°CFeatures & Information
Effective point of use solution for the removal of metals such as lead, zinc, mercury, copper and chromium from potable water supplies
The SRHM also has softening capabilities achieved without sodium dosing
Features & Information
Drinking water
Pharmaceutical
The high capacity Ion-X mixed-bed cartridges areideal for use in pharmaceutical, medical, laboratorycosmetic and printed circuit board applications.In applications where water comes into contact withliving organisms, such as fish breeding and potable waterwhere low TOC (Total Organic Compounds) and TDS (TotalDissolved Solids) levels are required, the SRDI in 5, 10 and 20"are perfectly suited.Maximum Temperature: 37°CFeatures & Information
Achieves resistivity levels to 10 megohm, ideal for washing, rinsing and testing purposes
For applications requiring almost complete reduction of total dissolved solids
Features & Information
Laboratories
Post RO water treatment
The SPECTRUM Ion-X high purity colour change DI cartridge has been designed specifically to provide demineralised water for applications requiring high purity water for washing, rinsing and testing purposes with resistivity in excess of 10 megohm.As the cartridge will visually change colour over the course of its life to indicate exhaustion, it is ideal for applications that have been designed without flow meters. To ensure a constant supply of high purity water, two cartridges can be used in conjunction where the first is put into the ‘roughing position’ and the second into the ‘polishing position’. This ensures complete utilization of all the exchange capacity thereby lowering operating costs while increasing average quality.Maximum Temperature: 37°CFeatures & Information
Colour change resin beads throughout the media give visual indication as the media becomes exhausted (from purple to light brown)
Achieves resistivity levels to 10 megohm, ideal for washing, rinsing and testing purposes
Features & Information
Laboratories
Corrosive test chambers
Dentistry

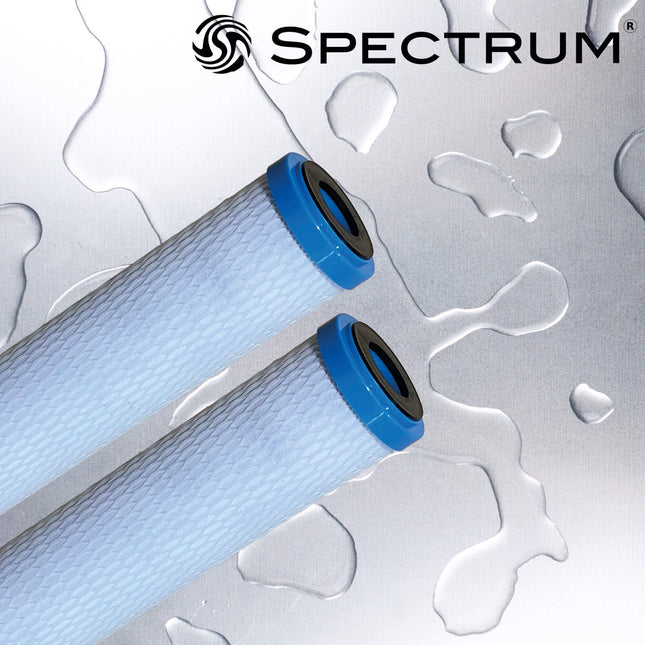

SPECTRUM 870 range of activated carbon block cartridges treats water by removing the bad taste, odour and appearance associated with chemical and organic pollutants.Contaminants such as chlorine, chloramine, herbicides, solvents and dyes are all treated along with the removal of organics through absorption. Chlorine, chemical and organic taste, odour and appearance removal.Features & Information•Suited to processes where the life of the carbon is never fully used•A carbon cartridge manufactured from acid washed bituminous GAC (granular activated carbon) and extruded into a carbon block format•Constructed with an outer polypropylene wrap that protects and extends the life of the carbon block, capturing particles and preventing premature plugging•Available in large diameter 9¾" and 20" lengths for reduced cartridge changeout frequency
SPECTRUM 870 range of activated carbon block cartridges treat water by removing the bad taste, odour and appearance associated with chemical and organic pollutants.Contaminants such as chlorine, chloramine, herbicides, solvents and dyes are all treated along with the removal of organics through absorption. Food grade coconut carbon block with higher efficiency and capacity chlorine, chemical and organic taste, odour and appearance removal.Features & Information
Extruded from high quality carbon fines the SCB has a much high adsorption capacity, extending life and improved chlorine reduction capacities over the ECB
The fine, acid washed bituminous, powdered activated carbon (PAC) used in the SCB results in a highly efficient carbon cartridge with sediment filtration capabilities
Constructed with an outer polypropylene wrap that protects and extends the life of the carbon block, capturing particles and preventing premature plugging
Food grade additives used to bond the PAC
Available in large diameter 9¾" and 20" lengths for reduced cartridge changeout frequency
SPECTRUM 870 range of activated carbon block cartridges treat water by removing the bad taste, odour and appearance associated with chemical and organic pollutants.Contaminants such as chlorine, chloramine, herbicides, solvents and dyes are all treated along with the removal of organics through absorption. Chloramine reduction with excellent chlorine capacity, chemical and organic taste, odour and appearance removal.Features & Information
Chloramine removal
Highest capacity taste and odour reduction
WRAS approved cartridge

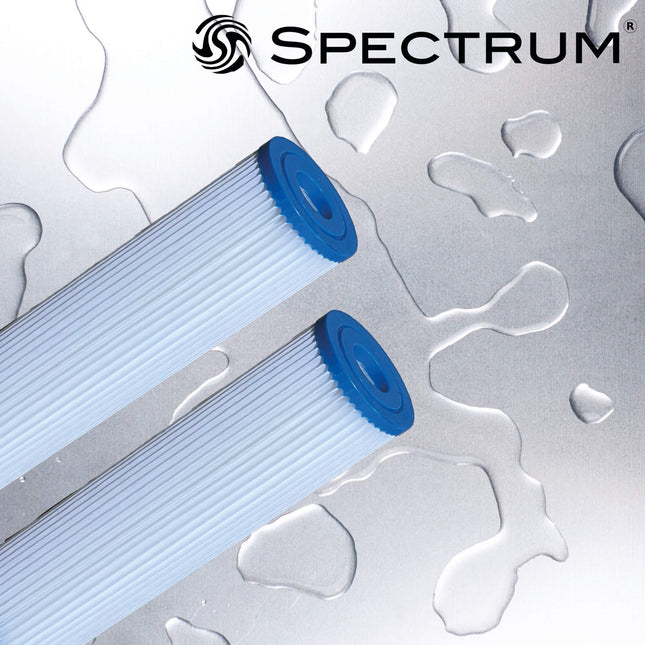

Delivering high efficiency filtration, the mono layer media of the Pleat2 delivers economical filtration with high surface area and high flow potential, whilst maintaining a low pressure drop. Vinyl plastisol end-caps eliminate the need for gaskets and maintain the integrity of the pleat pack, further supported by the tough inner polypropylene core. Resilient polyester media, used in a variety of applications from borehole and river water to harsher chemicals. For improved efficiency and classification capabilities refer to the SPECTRUM Premier Pleats.
