Aquafilter brass extension for KCGA-1 pressure gauge. Allows proper installation of the pressure gauge on H10C, HB1B, HB1D, HB1C, HB2B, HB2D, HB2C, H105 series housing.
ACC-4 Series cartridges have a high porosity design that helps prevent the cartridge from plugging before its adsorption capability is exhausted, maximizing the utilization of the carbon while maintaining low pressure drop. ACC-4 series Aquafilter carbon Block filter cartridge for VOC reduction is manufactured by extrusion, using mix blend GAC granular activated carbon media for improved reduction of chlorine taste and odour, and high adsorptive capacity. The 5-micron carbon block and is ideal for use as a reverse osmosis prefilter or postfilter.
High quality in-line carbon block cartridge ("SILVER" series) made of a mixture of carbons and a special media. Removes chlorine, organic substances and certain pesticides. Improves the taste and aroma of filtered water. Cartridges reduce water hardness and the concentration of heavy metals. Available with 1/4" NPT connection. It can be installed in RO systems, "SIDE-BY-SIDE" type refrigerators and direct flow systems. FCCBL-S-CL is one of the EXCITO-CL system replaceable cartridges. Specification:Available sizes: 2,5" x 12"
The performance of conductivity probes are affected by use due to residue build up and aging. M10030 is a lab grade 12880 µS/cm conductivity solution standard prepared against a NIST traceable potassium chloride solution that allows you to recalibrate your conductivity meter or tester. Check your meter or tester's manual to find the correct calibration standard for your meter. Conductivity readings are effected by temperature. To help with this, a chart of the actual µS/cm value at various temperatures is printed on each sachet. Milwaukee conductivity solutions are labeled with the lot number and expiration date and packaged in an air tight, tamper-proof sachet. Design Features Fundamental for accurate conductivity measurement. Factory calibrated with potassium chloride NIST 2202 SRM (Standard Reference Material) in deionized water for analytical use in accordance with ISO 3696/BS3978. Sealed against light and air. Ideal for on-the-spot calibration Simply open, insert the tester or electrode into the sachet and calibrate Each 20 mL sachet is marked with lot number and expiration date. A temperature chart of the actual µS/cm value at various temperatures is printed on each sachet. 5 year expiry date.

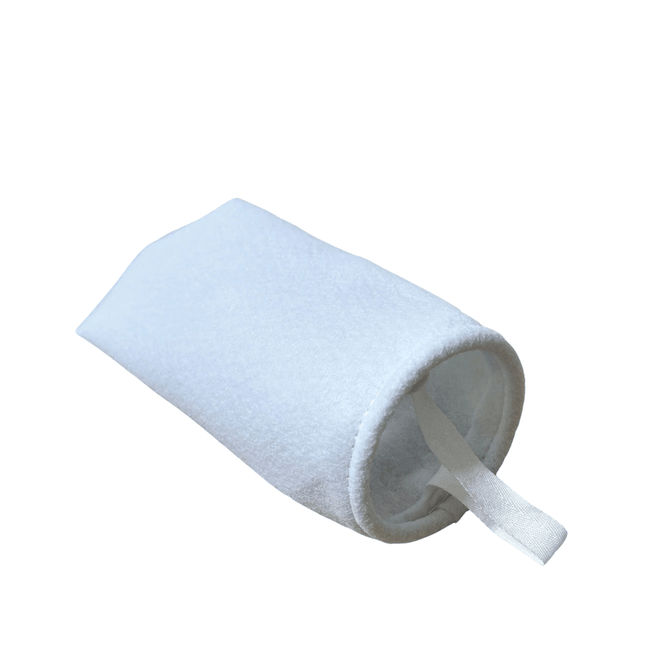

Utilising a traditional single layer manufacturing method, the PRISM range of bags offers the greatest option in terms of filtration media and neck seal type, providing a suitable solution for most bulk solid removal applications. PRISM polypropylene and polyethylene felt bags also benefit from an all welded seam construction, meaning they are capable of holding several kg's whilst maintaining filter integrity. Heavy duty handles make changeouts simple, avoiding operator contact with the unwanted filtrate.
The Mimosa Gigabit PoE 50V passive PoE is a compact and clutter-free, eliminating the typical installation mess of power strips and extension cords. Leave behind a professional-looking installation while reducing the chances of accidental power disconnects caused by consumers tapping into power strips.
Power Cord not included
Product Specifications:
10/100/1000BASE-TX
Input: 100 - 240V ; MAX 1.5A
Output: 50V ; 1.2A
P/N: 502-00022
Input Current: 1.5A @ 115 VAC / 1.0A @ 230 VAC
Compatible with B5, B5c, B11, A5, A5c, and B24
Mimosa N5-X25 (100-00091) is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100 Mbps. With the purchase of a PTMP speed feature key, speeds of up to 500 Mbps will be unlocked in PTMP mode. In order to unlock and utilize PTP mode, with speeds of up to 700 Mbps, a PTP feature key must be purchased. 8-Pack
Product Features:
Twist-On, Flexible Antenna
PTP or PTMP Modes (feature key may be required)
Extended Frequency 4.9–6.4 GHz
Best-in-Class Noise Immunity
Ultra Rugged
Low-Power Consumption
Ultra Reliable
Gigabit Ethernet: 10/100/1000-Base-T
Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog monitoring; HTTPS; HTML5-based web UI
Product Specifications:
Product: N5-X25
Gain: 25dBi
Polarization: Dual-Slant: 45°
Beamwidth, Symmetric (3 dB): 8°
Front-to-Back Ratio (min): 40dB
Front-to-Side Ratio (min): >45dB
Weight: 0.98 kg (2.15lbs)
Dimensions: Diameter: 429 mm (16.89”) Depth: 116 mm (4.57”)
Mount: Mimosa N5-X twist-on
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 36.26 kg @ 160 km/h (79.95lbs @ 100 mph)
Operating Temperature: -40°C to +55°C (-40°F to 131°F)
Product Includes:
(8) N5-X25 Dish(1) User Manual
Mimosa A5x Connectorized 4.9-6.4GHz 2x2 PTMP Access Point
The Mimosa A5x PTMP 4x4 Access Point is a connectorized, 2x2 access point that delivers fibre-like speeds of up to 700Mbps (IP). With new spectrum becoming available in both 4.9GHz and 6GHz, the wide frequency of the A5x (4.9GHz – 6.4GHz) will allow affordable access to more low-noise spectrum for increased speeds and reliability—especially paired with SRS (GPS sync) for channel reuse.
Mimosa A5x Key Features
Fibre Speeds of up to 700Mbps (IP)
Add Subscribers with Ease
Increased Capacity at Each Site
Ultra-High Client Capacity
Extended Frequency Available
With fast client speeds and great access point capacity, along with local and network-wide spectrum reuse, the cost-effective, connectorized A5x delivers fibre-fast connectivity for any unlicensed Fixed Wireless network.
The A5x is well suited for short to long-range pole and tower point-to-multipoint (PTMP) applications, access point colocation (GPS sync), and Municipal and Rural Licensed Public Safety multipoint (4.9 GHz). In situations where the A5c connectorized 4x4 access point is too much or too powerful, the A5x is the perfect choice.
Fibre Speeds
With access point capacity of up to 700 Mbps (IP), the A5x delivers the speeds consumers and business users demand at a fraction of the cost of delivering fibre-to-the-premises.
Increased Capacity at Each Site
With integrated, high-precision SRS (GPS sync) technology, new A5x sectors can easily be added at existing A5 and B5 sites and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5x devices are installed ``back-to-back'' on the same tower or pole.
Add Subscribers with Ease
Install, aim and go! We've eliminated manual installation and pre-provisioning complexity, so you can focus on adding subscribers quickly.
Ultra-High Client Capacity
TDMA techniques provide significant improvements when scaling the number of clients. By dynamically allocating upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.
Extended Frequency Available
Rise above the noise with available extended frequency support from 4.9-6.4 GHz.
Product Features:
Fiber Speeds of up to 700Mbps (IP)
Add Subscribers with Ease
Increased Capacity at Each Site
Ultra-High Client Capacity
Extended Frequency Available
Product Specifications:
Gigabit Ethernet: 10/100/1000-BASE-T
Collocation Synchronization: 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio
Management Services: Cloud monitoring and provisioning; SNMPv2c/v3; Syslog; HTTPS; HTML 5 based Web GUI; REST API for monitoring and configuration; IPv4 and IPv6
Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic auto-optimization of channel and bandwidth use
Security: WPA2; AES; RADIUS; 802.1x authorization
VLANs: Per SSID VLANs (IEEE 802.1Q)
QoS: Supports 4 user-configurable QoS levels for SRS (GPS Sync) (CBWFQ); Behavior Aggregate (BA) and CoS Classifier, with user-configurable precedence
GPS Location: GNSS1 (GPS + GLONASS)
Weight: 0.30 kg (0.70lbs)
Enclosure Characteristics: Outdoor UV-stabilized engineered polymer with integrated mounting back
Mounting: Single pole strap and slip on mount for comparable antennas
Connector Type: (2) RP-SMA
Max Throughput: Up to 700Mbps (IP)
Client Capacity: 64 clients (WiFi Interop);, 44 clients (SRS/GPS sync)
Wireless Protocols: WiFi Interop, Spectrum Reuse Synchronization (SRS/GPS sync)
MIMO & Modulation: 2x2:2 MIMO OFDM up to MCS9 (256-QAM)
Bandwidth: 20/40/80 MHz channels; Tunable in 5 MHz increments for GPS Sync; Tunable to standard WiFi channels for WiFi Interop
Frequency Range: 4900–6400 MHz (restricted by country of operation)
Max Output Power: 27 dBm
Sensitivity (MCS 0): -87dBm @ 80MHz, -90dBm @ 40MHz, -93dBm @ 20MH
Max Power Consumption: 9W – 12.9W
System Power Method: Passive PoE (24–56VDC)
System Lightning & ESD Protection: 6kV
PoE Power Supply: Passive POE compliant, 24VDC – 56VDC (PoE injector not included)
Environmental:
Outdoor Ingress Protection Rating: IP67
Operating Temperature: -40°C to +55°C (-40°F to 131°F)
Operating Humidity: 5 to 100% condensing
Operating Altitude: 4,420 m (14,500’) maximum
Shock & Vibration: ETS 300-019-2-4 class 4M5
Product Includes:(1) Mimosa A5x Radio(1) User Manual
TheKSF coupling set (6") for connecting flexible hoses. The hose connection is easily attached by means of Ksf quick lock 6".
Manufactured in stainless steel 304.
WEDGE-LOCK™ uses an ultra fine pore ceramic producing a high Absorption Efficiency (AE) allowing you to increase yield while controlling the cost of expensive gases
The Point Four WEDGE-LOCK is a modular system of microbubble diffusers and end sets that fit together to form a bank of up to eight units. Oxygenation capacity can be increased (or decreased) as your needs demand by simply changing the number of diffusers used for greater flexibility and minimal downtime.Designed for total ease of use, WEDGE-LOCK™ modules ‘Twist and Lock’ together to form an air-tight seal without the use of tools. Hose with push-in fittings connects the diffuser banks to the gas supply, significantly reducing set-up time and effort.Manufactured from tough plastic, WEDGE-LOCK™ will not corrode and is resistant to the Sun’s ultraviolet rays. The diffuser’s streamlined wedge shape improves stability in tanks with high water flow and offers less resistance in self-cleaning tank systems.
The ProSolo ODO/CT kit includes the digital ProSolo handheld; an optical dissolved oxygen, conductivity, and temperature cable/probe assembly (4 or 10 meter cable length); and a soft-sided carrying case. The ProSolo handheld is the direct replacement for the ProODO Optical Dissolved Oxygen handheld.
OverviewODO® Sensor Technology Dissolved oxygen measurement technology has advanced from electrochemical sensors, such as polarographic and galvanic, to luminescent-based, optical sensors. YSI optical DO sensors are non-consumptive, meaning oxygen is not consumed during the measurement. As a result, there is no flow dependence or stirring required with ODO, allowing for the most accurate readings in the field. Advantages over electrochemical sensors include: Higher accuracy with no stir dependence Less drift over time; holds calibration longer Less maintenance; no membranes or electrolyte Real-Time Salinity Compensation With an integral conductivity module, the ODO/CT probe assembly enables the ProSolo to automatically compensate DO mg/L measurements for changes in salinity. The 4-electrode conductivity cell, designed for rugged field performance, is easily cleaned and requires minimal maintenance.
Technical InfoProDIGITAL Smart Sensors In addition to utilizing the most advanced DO sensing technology, the ProSolo incorporates smart sensor technology that enables sensors to be automatically recognized by the handheld. Additionally, DIGITAL sensors store calibration data, so probe assemblies can be swapped between handhelds without the need for re-calibration. Provides Years of Sampling for All Field Conditions The ProSolo handheld meets the demands of true field work with a rugged, waterproof case (IP-67 rated) and a military-spec (MS) cable connector. Rigorously drop tested from all angles, the handheld features a 3-year warranty, while a 2-year warranty is included with the probe assembly and ODO Cap. Advanced Data Management ProSolo includes KorDSS Software, a powerful data management program for easy 2-way communication between the meter and a PC. A unique data backup feature allows for the export of data to a USB flash drive (included) in csv format without having to connect to a computer. Convenient Sampling Experience Ergonomic handheld for a comfortable grip Easy-to-read color display and backlit keypad Large onboard memory with storage capacity for over 100,000 data sets Site ID and Data ID tag capabilities for data organization Data export directly to USB flash drive (included) Single cable design for probe assembly lengths ranging from 1- to 100-meters Long-life rechargeable lithium-ion battery that is user-replaceable Simple and quick calibration procedures
Size
2.46 cm diameter, cable options for 1, 4, 10, 20, 30, 50, and 100 m lengths
Dissolved Oxygen
(Optical luminescence)Units: % saturation, % saturationlocal, mg/L, ppm
Range: 0 to 500%, 0 to 50 mg/L
Accuracy: 0 to 200%: ±1% of reading or 1% saturation, whichever is greater
200 to 500%: ±8% of reading
0 to 20 mg/L: ±0.1 mg/L or 1% of reading, whichever is greater
20 to 50 mg/L: ±8% of reading
Resolution: 0.01 mg/L and 0.1%, or 0.1 mg/L and 1% (auto-adjusts based on range)
Temperature
(Thermistor)Units: °C, °F, K
Range: -5 to 70°C (temperature compensation range for DO mg/L measurement: -5 to 50°C )
Accuracy: ±0.2°C
Resolution: 0.1°C or 0.1°F (auto-adjusts based on range)
Conductivity
(Four nickel electrode cell)Units: μS/cm, mS/cm
Range: 0 to 200 mS/cm
Accuracy: 0 to 100 mS/cm ±0.5% of reading or .001 mS/cm, whichever is greater
100 to 200 mS/cm ±1.0% of reading
Resolution: 0.001, 0.01, or 0.1 mS (range dependent)
Specific Conductance
Units: μS/cm, mS/cm
Range: 0 to 200 mS/cm
Accuracy: 0 to 100 mS/cm ±0.5% of reading or .001 mS/cm, whichever is greater
100 to 200 mS/cm ±1.0% of reading
User selectable reference temperature (15 to 25°C; default 25°C) and compensationcoefficient (0 to 4%/°C; default 1.91%)
Resolution: 0.001, 0.01, 0.1 mS/cm
Warranty
2 years on cable, probe, and ODO sensor cap
