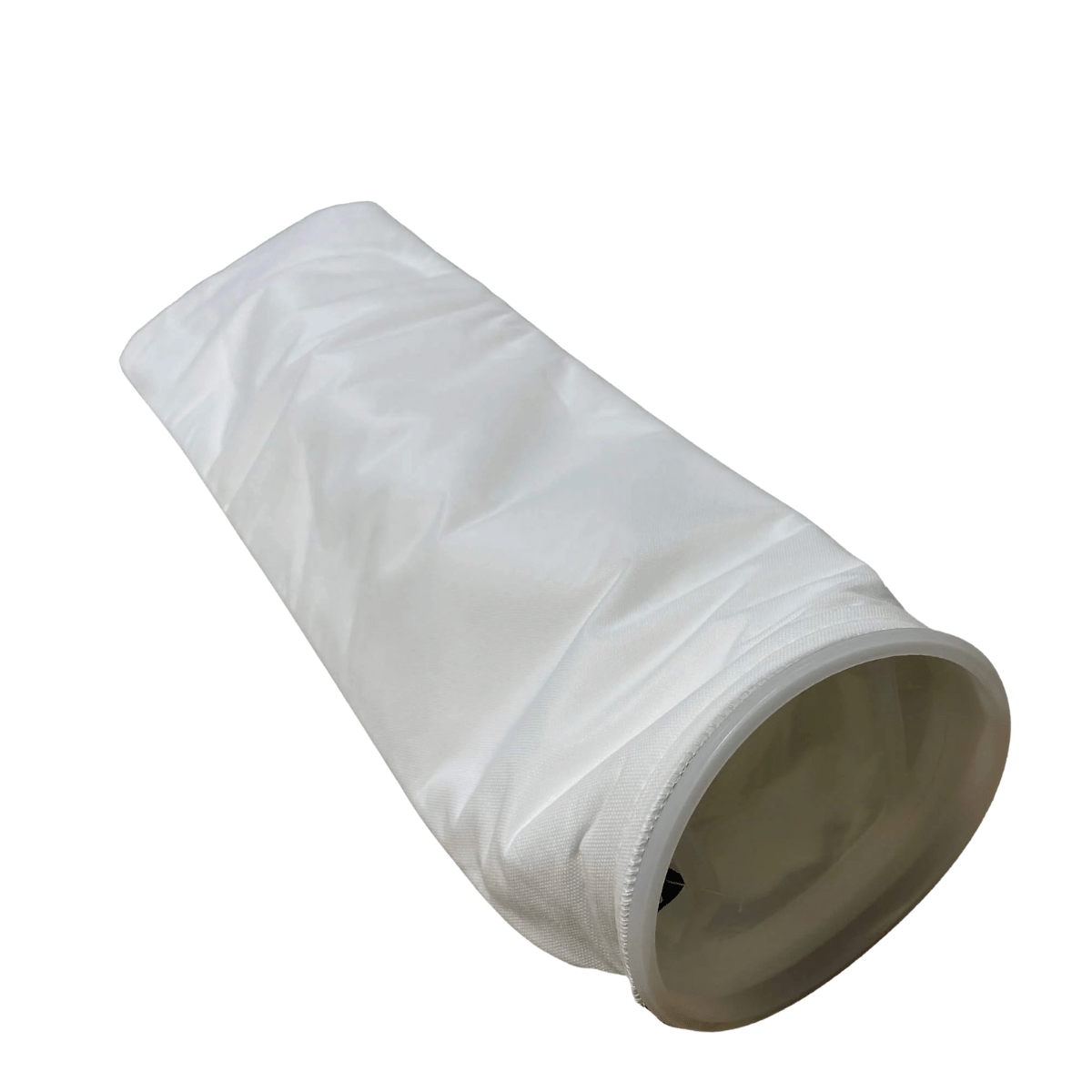

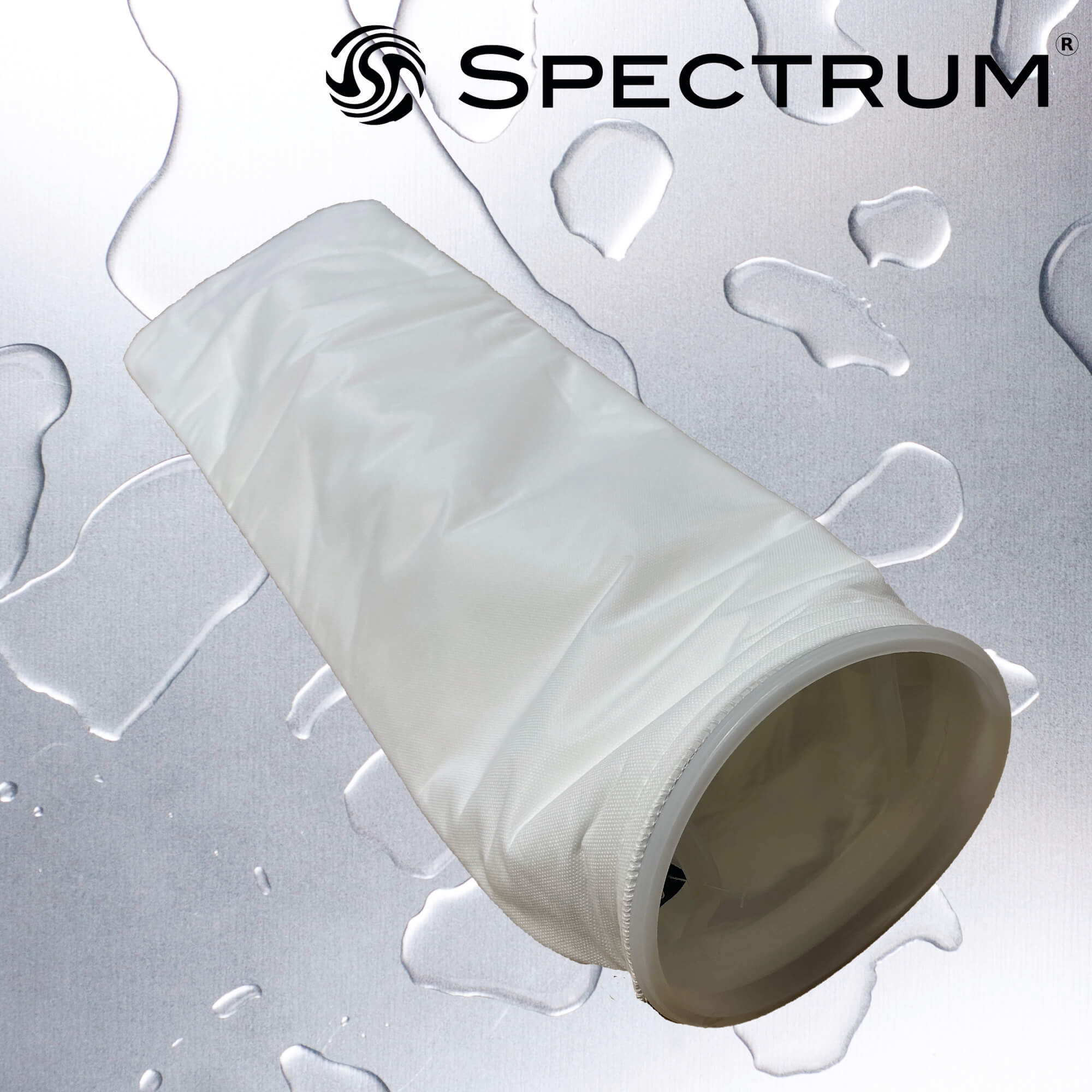

Where high efficiency bag filters are required, the SPECTRUM Premier range is the perfect choice for accurate process liquid filtration from 0.5 to 25 micron.
A multi-layer construction ensures high levels of contaminant holding and highly efficient graded-density filtration. The microfibre media coupled with the flanged neck seal lessens the risk of particle bypass. All layers are sewn together to the neck ring, providing a strong, reliable and effective product capable of finer filtration at high process flow rates.
Each bag is manufactured from lot controlled raw media, individually labelled and finished with a total glazing process to inhibit fibre release.
Features & Benefits
Microfibre layers efficiently remove fine particulate and also unwanted trace oils from the liquid
Multiple layers of pre-filtration ensure high levels of contaminant holding and graded density filtration
Free from silicone oils to prevent ‘fish-eyes’ occurring in laquers, inks, paints and coatings
Materials of construction
Filter Media: Polypropylene
Neck Ring: Polypropylene
Layers of media combined with Microfibre technology create a very high efficiency bag filter
Support, pre-filtration and Microfibre media are sewn together to the neck ring to produce a reliable structure
Glazed finishing process is applied to virtually eliminate fibre migration
WRAS approved product
BS6920 compliant materials
FDA compliant to CFR Title 21
Part Numbers: PBP-0.5-1, PBP-1-1, PBP-5-1, PBP-10-1, PBP-25-1, PBP-50-1, PBP-100-1,
