Description

This complete 7 stage reverse osmosis system is ready to install made by Aquafilter. Made of NSF and WRAS certified components. Due to the high membrane quality it is possible to purify up to 280 litres of water per day. Small micron rating 0,0001 µm, allows to remove most contaminants from water including bacteria and viruses. System is equipped with post filtration carbon cartridge (AICRO), which improves the taste and aroma of water and AIMRO mineralising cartridge, which enriches water with elements such as calcium and magnesium.

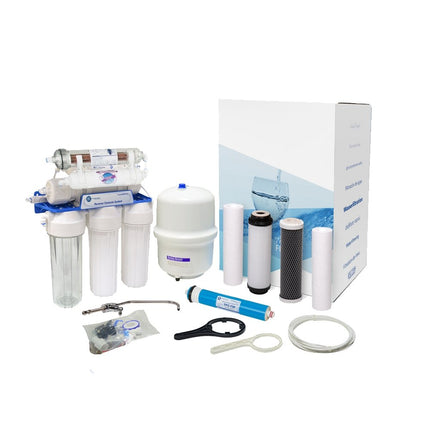

Set includes: RX-RO6-NN system, FCCA, FCCBL, FCPS20 sediment filter,(one extra sediment filter 5 micron), AICRO, AIMRO cartridges and TFC-75F-AQM RO membrane, FXFCH5 faucet, feed water connector 1/2″, tubing, tank, instruction, and accessories.

If your water pressure is less than 2.8bar, we recommend you choose the pumped system.

Please find a link to the Instructions here.   A QR Code linking to instructions is included in the box.

We recommend using a plumber or other suitable tradesperson for the installation of these systems.

• Uses
  Drinking water for home and office
  Aquarium water
  window cleaning

• What we offer
  7 stage complete Ro filter system 75 GPD.
  (Stage 1) 20 Micron Sediment Filter: FCPS20 or FCPS5
  (Stage 2) Activated Carbon Block Filter: FCCBL
  (Stage 3) Carbon Block Filter: FCCA
  (Stage 4) Reverse Osmosis Membrane 75 GPD per day: TFC-75F-AQM
  (Stage 5) Post Carbon filter: AICRO
  (Stage 6) Mineral cartridge: AIMRO
  (Stage 7) Ionizing Cartr0dge: AIFIR2000.

• Features
  Connectors type: Quick connect fittings
  3.2 Gallons NSF Standards Water Storage Tank: PRO3200P
  NSF Approved 3 Filter Housings (double o’ring): 3 white
  Mounting bracket: Plastic type Automatic Shut-off Valve:AJ-S-3000W
  Flow Restrictor: 420cc AQ-FR-420
  Attractive design faucet: FXFCH5
  Feed water connector and deliver valve: FT06P, AQ-SEWBV1414-PP
  Drain Saddle Valve:AJ-SC500B14
  White Colour Coded 1/4 inch Tubing for System Connection
  Assembled &100% Factory leak tested ready for Installation

• Technical Features
  Membrane: 75 GPD / 283 LPD
  Operation pressure: 2.75 – 5.5 bar (40 -80 psi)
  Tank Pressure: 8 psi
  Dimensions: (cm) 37 (L) x 45(H) x 20 (W) – system (cm) 28 (L) x 28(W) x 35 (H)- tank

Specifications

• Brand: Aquafilter
• Port Size: 1/4"
• Ideal For: Undersink
• Operating Pressure: Max. 6.0 bar Min. 2.8 bar
• Working Temp.: 2°C - 45°C (35º F - 113º F
• Tank Capacity: 15 liters
