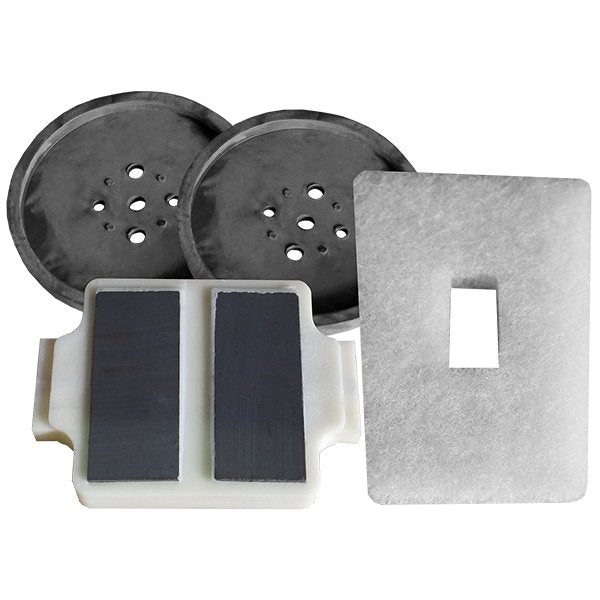

The service kit for the ET30-120 series includes 2 diaphragms, 1 filter and 1 magnet.
The service kit for the ET150-200 includes 2 diaphragms, 1 filter and 8 valves.
We recommend your ET pump be serviced every 18 months.

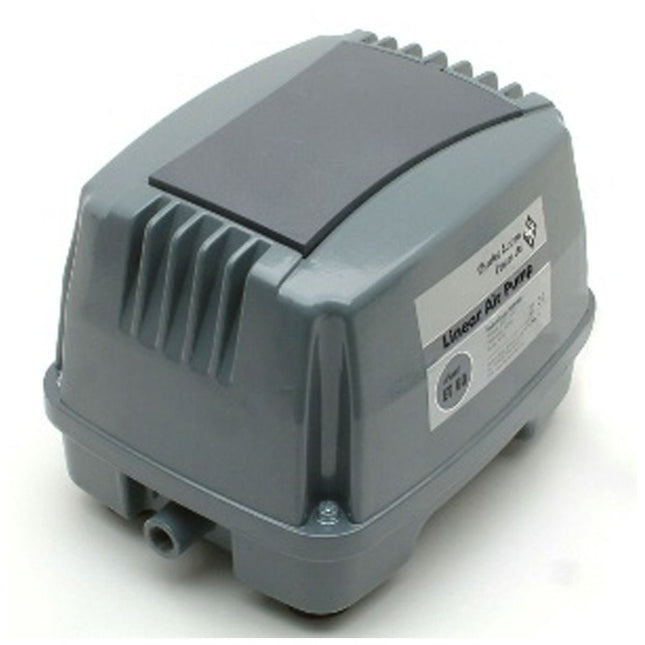

Green drive technology – energy efficient motors low power consumption. Specially formulated diaphragm material for extended life. Due to no wearing parts no reduction in performance. Robust and compact construction – weatherproofEasy to service with competitively priced spares kit. Suited to intermittent or continuous duty applications. Whisper quiet operation as low as 35dbET60 Pump:
Product Type: Oil Free Air
Maximum Flow: 60 Litres Per Minute @ 0.12 bar
Power Consumption: 55 Watts
Weight: 6.0 kgs
Dimensions: 203mm Long x 165mm Wide x 153mm High
Connector Size: 18mm
Accessories Included: Screw in brass connector, L shaped elbow & 2 hose clips
Supply Voltage: 220v - 240v 50Hz

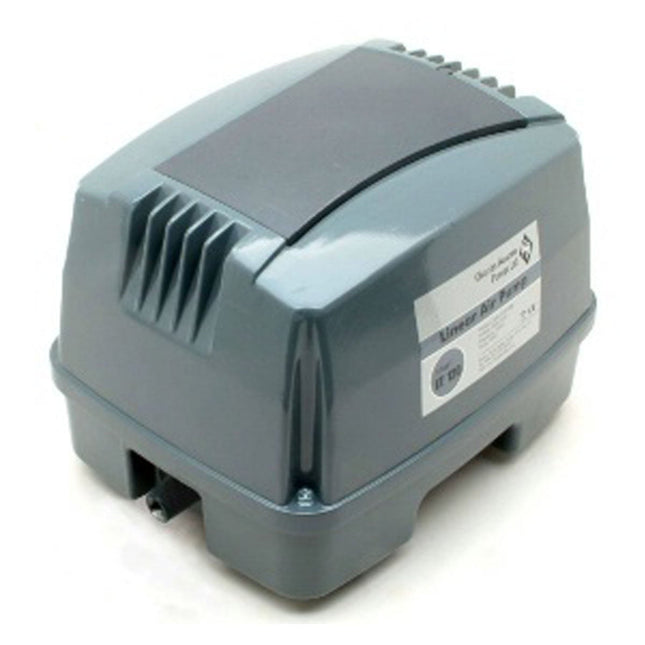

Green drive technology - energy efficient motors low power consumption. Specially formulated diaphragm material for extended life.Due to no wearing parts no reduction in performance. Robust and compact construction - weatherproof.Easy to service with competitively priced spares kit. Suited to intermittent or continuous duty applications. Whisper quiet operation as low as 35dBET120 Pump:
Product Type: Oil Free Air
Maximum Flow: 120 Litres Per Minute @ 0.20 bar
Power Consumption: 125 Watts
Weight: 9.5 kgs
Dimensions: 265mm Long x 215mm Wide x 198mm High
Connector Size: 18mm
Accessories Included: Screw in brass connector, L shaped elbow & 2 hose clips
Supply Voltage: 220v - 240v 50Hz
Green drive technology - energy efficient motors low power consumption. Specially formulated diaphragm material for extended life. Due to no wearing parts no reduction in performance. Robust and compact construction - weatherproof.Easy to service with competitively priced spares kit. Suited to intermittent or continuous duty applications. Whisper quiet operation as low as 35dB.

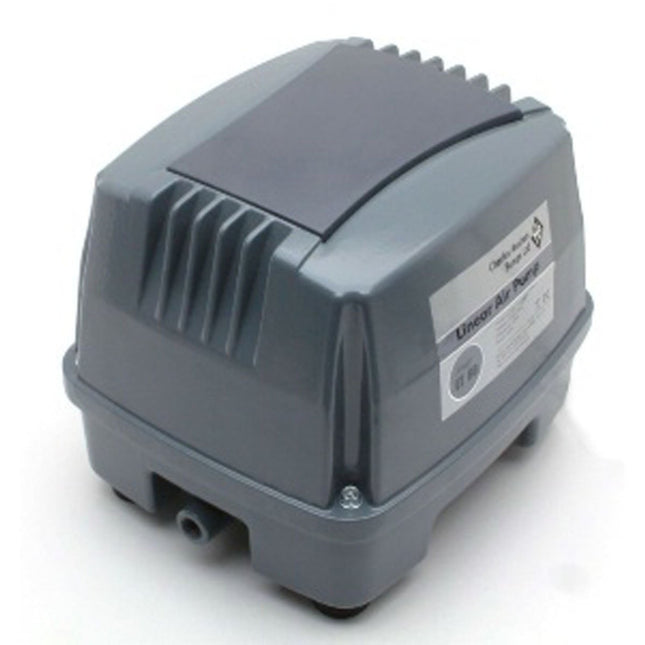

ET80 Pump:
Product Type: Oil Free Air
Maximum Flow: 80 Litres Per Minute @ 0.10 bar
Power Consumption: 85 Watts
Weight: 7.0 kgs
Dimensions: 210mm Long x 185mm Wide x 171mm High
Connector Size: 18mm
Accessories Included: Screw in brass connector, L shaped elbow & 2 hose clips
Supply Voltage: 220v - 240v 50Hz

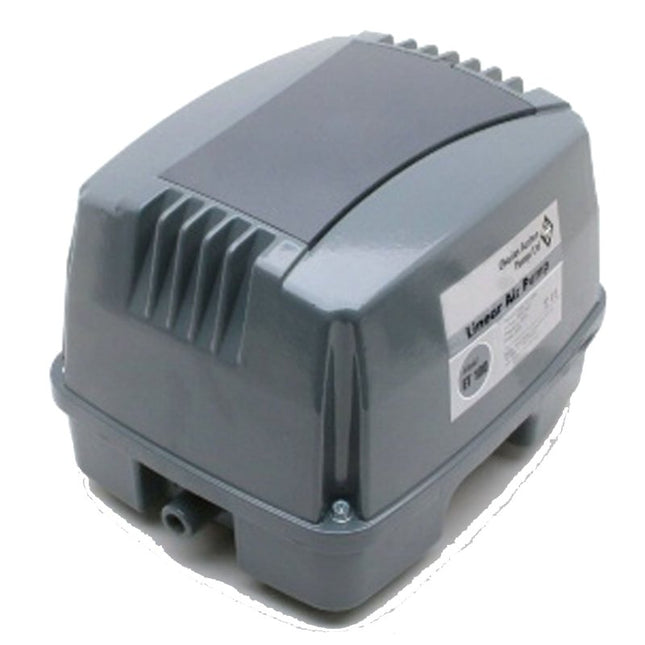

Green drive technology - energy efficient motors low power consumption. Specially formulated diaphragm material for extended life. Due to no wearing parts no reduction in performance. Robust and compact construction - weatherproof.Easy to service with competitively priced spares kit. Suited to intermittent or continuous duty applications. Whisper quiet operation as low as 35dBET100 Pump:
Product Type: Oil Free Air
Maximum Flow: 100 Litres Per Minute @ 0.10 bar
Power Consumption: 105 Watts
Weight: 8.5 kgs
Dimensions: 238mm Long x 196mm Wide x 177mm High
Connector Size: 18mm
Accessories Included: Screw in brass connector, L shaped elbow & 2 hose clips
Supply Voltage: 220v - 240v 50Hz

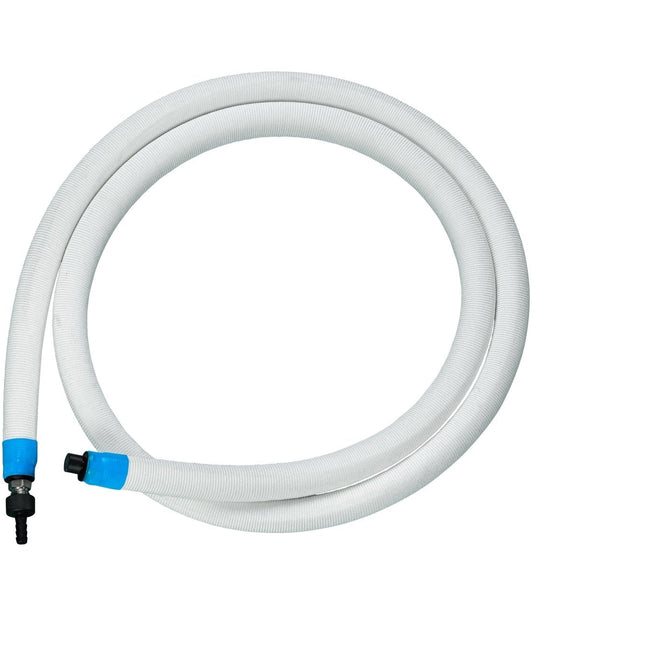

The Dryden Aqua Air Diffuser is a semi-flexible, high-efficiency fine bubble air diffuser available in 9 different lengths, depending on the air through-put required . It provides oxygen transfer rates of up to 5kg/kw, 10m3/h of air and 1 kg of O2/h. Its semi-flexible construction with its own internal ballast will stay on the bottom of tank or pond without the need to be anchored to the floor.
The Dryden Aqua Air Diffuser combines excellent performance with cost effectiveness for aeration, oxidation and biological treatment.
Dryden Aqua Air Diffuser Key Features
Semi-flexible, tubular construction
Self weighted
Available in 9 lengths from 0.3 – 3m.
Air handling capacity from 1 – 10m3/hr
Less than 0.2 Bar (3 psi) pressure differential
Oxygen transfer efficiency up to 5 kg/kwhr
Resistant to calcification
Easy to clean and maintain
Robust and long-lasting (typical lifespan is 5 – 10 yrs)
Built in non-return valve
Stainless steel and plastic construction
Can be used with Air, N2, CO2
Oxygen Transfer Performance
Surface aerators waste a huge amount of kinetic energy throwing the water into the air, transfer coefficient is 1 kg to 2 kg of oxygen per kW. Membrane diffusers are more efficient at 2 kg to 3 kg of oxygen per kW. The Dryden Aqua diffuser at over 5 kg is therefore the most efficient fine bubble diffuser available and is ideal for retrofit applications as a simple drop in product for tanks and ponds in Aquaculture and Waste Water Treatment.
The ET series range of air pumps ensures that there is plenty of water movement in wastewater applications; this boosts oxygen levels in the water, allowing aerobic bacteria to decompose. When used in medical applications, the ET series provides a high flow at low pressure.
Robust and compact construction - weatherproof Green drive technology offers energy efficient motors meaning low power consumption Supplied with a rubber elbow for easy fitting
Model
Flow
Connector
Power
Dimensions
ET40A
40lpm @ 0.12bar
18mm
30w
220 x 155 x 140mm
ET60A
60lpm @ 0.12bar
18mm
55w
253 x 165 x 183mm
ET80A
80lpm @ 0.12bar
18mm
85w
210 x 185 x 201mm
ET100A
100lpm @ 0.12bar
18mm
105w
238 x 196 x 207mm
ET120A
120lpm @ 0.12bar
18mm
125w
315 x 215x 228mm
ET150A
150lpm @ 0.12bar
18mm
125w
346 x 200 x 222mm
ET200A
200lpm @ 0.12bar
18mm
210w
346 x 200 x 222mm
ET250A
250lpm @ 0.12bar
26mm
221w
348 x 231 x 219mm
ET300
300lpm @ 0.12bar
26mm
221w
348 x 231 x 219mm
Technical Data Sheet
These aquaculture-duty diffusers are among the most efficient diffusers available, allowing you to increase yield while controlling the cost of expensive gases. Made from premium materials and subject to rigorous testing, Micro Bubble Diffusers provide the kind of performance and reliability our reputation is built on. Size below depicts base dimensions.
The original ... since 1988
These aquaculture-duty diffusers are among the most efficient diffusers available, allowing you to increase yield while controlling the cost of expensive gases. Made from premium materials and subject to rigorous testing, Micro Bubble Diffusers provide the kind of performance and reliability our reputation is built on.
Point Four diffusers use a specially developed, ultra fine pore ceramic plate that produces a cloud of extremely fine bubbles of approximately 100–500 microns; far superior to airstones, porous hose or membrane type designs. The flat plate design ensures uniform bubbles across the entire surface and minimizes bubble coalescence to achieve an absorption rate in excess of 80%, depending on depth and flowrate. Bubbling Pressure is 25 to 35 psi. (1.7 to 2.4 bar).
Applications for micro-bubble diffusers include pure gas applications (pure oxygen, carbon dioxide), high-density hauling, holding/growout tanks and emergency aeration.
The Dryden Aqua Air Diffuser is a semi-flexible, high-efficiency fine bubble air diffuser available in 9 different lengths, depending on the air through-put required . It provides oxygen transfer rates of up to 5kg/kw, 10m3/h of air and 1 kg of O2/h. Its semi-flexible construction with its own internal ballast will stay on the bottom of tank or pond without the need to be anchored to the floor.
The Dryden Aqua Air Diffuser combines excellent performance with cost effectiveness for aeration, oxidation and biological treatment.
Dryden Aqua Air Diffuser Key Features
Semi-flexible, tubular construction
Self weighted
Available in 9 lengths from 0.3 – 3m.
Air handling capacity from 1 – 10m3/hr
Less than 0.2 Bar (3 psi) pressure differential
Oxygen transfer efficiency up to 5 kg/kwhr
Resistant to calcification
Easy to clean and maintain
Robust and long-lasting (typical lifespan is 5 – 10 yrs)
Built in non-return valve
Stainless steel and plastic construction
Can be used with Air, N2, CO2
Oxygen Transfer Performance
Surface aerators waste a huge amount of kinetic energy throwing the water into the air, transfer coefficient is 1 kg to 2 kg of oxygen per kW. Membrane diffusers are more efficient at 2 kg to 3 kg of oxygen per kW. The Dryden Aqua diffuser at over 5 kg is therefore the most efficient fine bubble diffuser available and is ideal for retrofit applications as a simple drop in product for tanks and ponds in Aquaculture and Waste Water Treatment.
Point Four Plastic Micro Bubble Diffusers (PMBD) are one of the most efficient diffusers available, allowing you to increase yield while controlling the cost of expensive gases. Made from premium materials and subject to rigorous testing, PMBDs provide the kind of performance and reliability our reputation is built on.
Point Four diffusers use a specially developed, ultra fine pore ceramic plate that produces a cloud of extremely fine bubbles of approximately 100–500 microns; far superior to airstones, porous hose or membrane type designs. The flat plate design ensures uniform bubbles across the entire surface and minimizes bubble coalescence to achieve an absorption rate in excess of 80%, depending on depth and flowrate. Bubbling pressure is 25 to 35 psi (1.7 to 2.4 bar).
• Robust construction—ceramic plates set in an injection moulded plastic base with solid brass connection fittings.• Flexible, modular design lets you easily add or subtract diffusers as your needs change.
Applications for micro-bubble diffusers include pure gas applications (pure oxygen, carbon dioxide), high-density hauling, holding/grow out tanks and emergency aeration.
Note: Diffusers are also known as airstones.

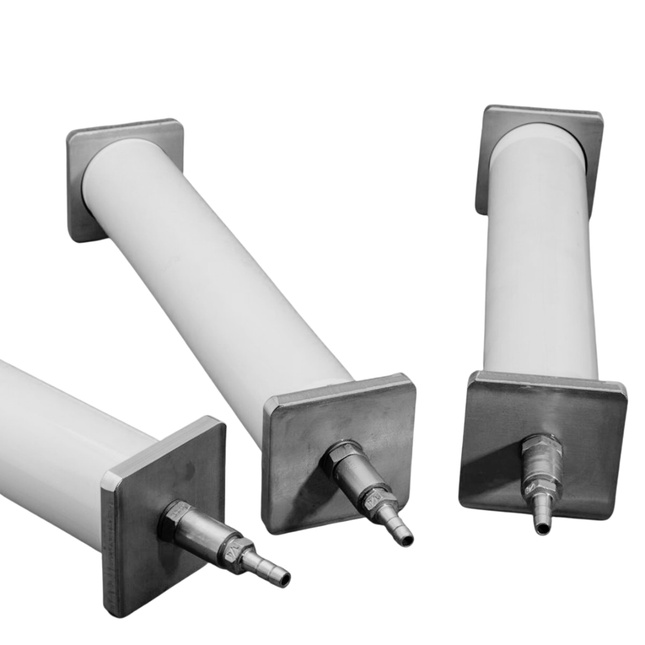

Following successful field trials of a new micro bubble diffuser designed for the fish farming industry, Mantec has now launched an enhanced variant of the product into the market place under the brand CORALith. Building on our heritage of supplying more than 300,000 ceramic diffusers in the past 20 years, this new micro bubble diffuser introduces very small bubbles into the body of water, resulting in more surface area per unit volume and greater oxygen transfer exchange. In addition, agglomeration of bubbles as they rise to the surface is minimised.
Mantec has been active in the supply of ceramic diffusers into the aquaculture sector since the 1990s. In recent times, the sector is increasingly demanding diffusers which produce the finest bubbles to ensure adequate and efficient oxygenation of the water in which fish are farmed. The need for finer bubbles is grounded on maximising the oxygen transfer at greater water depths.With this in mind Sterner's new Mantec diffuser is based on a porous ceramic tube, having a closely controlled pore size of one micron. This results in even, fine bubbles to produce efficient oxygen transfer. Fitted with two square stainless steel end caps, the CORALith diffuser assembly can be positioned in the tank in any horizontal orientation, without the operator having to be concerned that the diffuser is sitting flat on the base of the tank. The diffuser assembly is designed with a replaceable ceramic tube.Furthermore, the diffuser has been designed to minimise any potential leak paths, thereby ensuring the efficiency of oxygen transfer. Thanks to its robust construction, the operator need not be concerned about removing the diffuser from the tank when the oxygen feed remains switched on. In addition, the hose tail coupling does not rely on push-fit connections, instead it is secured with a British Standard Pipe thread to provide a secure connection with the mating hose.
Green drive technology – energy efficient motors low power consumption. Specially formulated diaphragm material for extended life. Due to no wearing parts no reduction in performance. Robust and compact construction – weatherproof ,Easy to service with competitively priced spares kit. Suited to intermittent or continuous duty applications. Whisper quiet operation as low as 35dbET30 Pump:
Product Type: Oil Free Air
Maximum Flow: 30 Litres Per Minute @ 0.12 bar
Power Consumption: 25 Watts
Weight: 4.0 kgs
Dimensions: 218mm Long x 156mm Wide x 182mm High
Connector Size: 14mm
Accessories Included: Screw in brass connector
L shaped elbow & 2 hose clips
Supply Voltage: 220v - 240v 50Hz
