Description

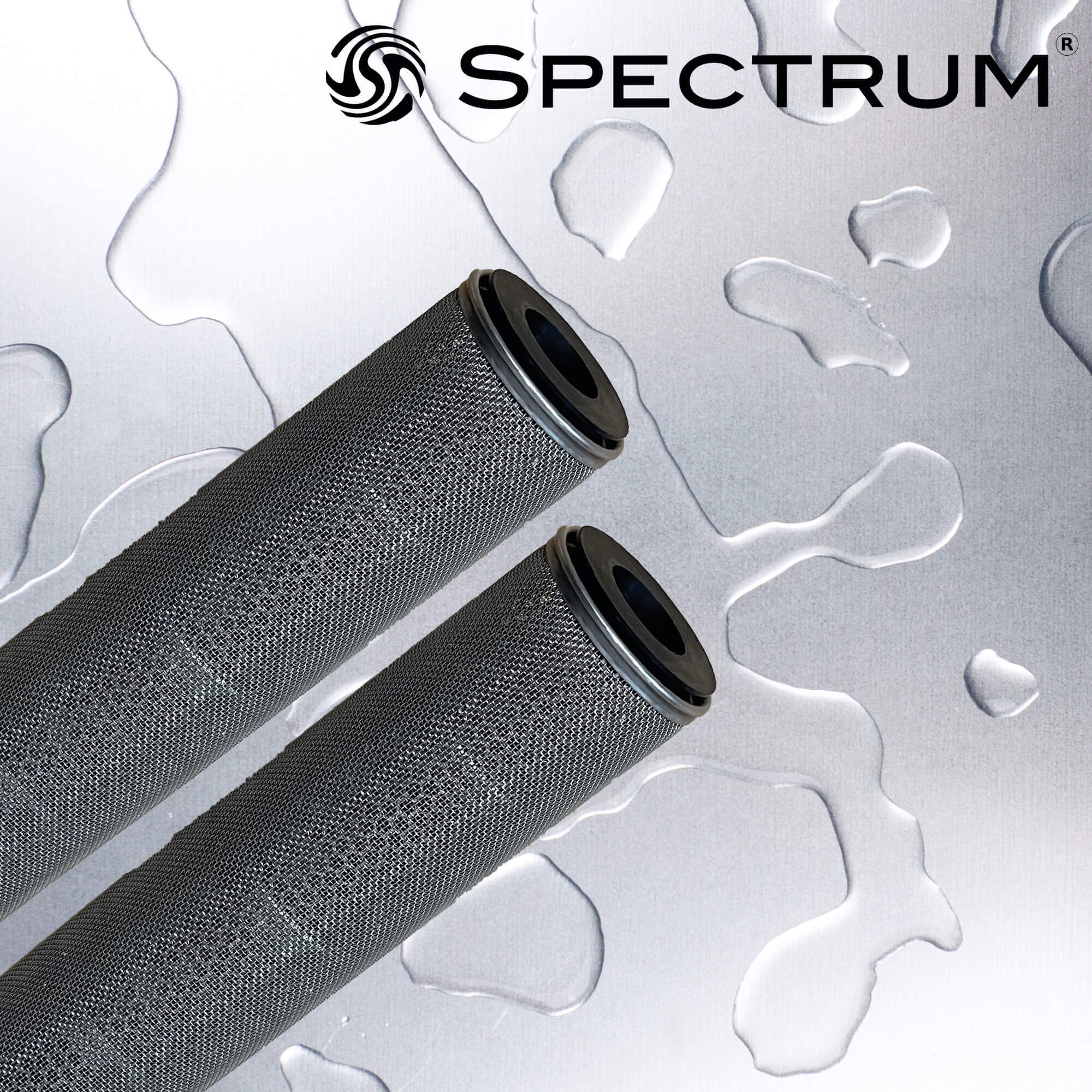

Inox stainless steel cartridges from SPECTRUM are the most durable range of cartridges available. 316L stainless steel meshes are resilient in the toughest of fluid environments of high pressure, temperature and aggressive chemicals and when used for solid particle removal, they benefit from being reusable after a cleaning process.The Inox Economic cartridges are all-welded with a cylindrical stainless-steel mesh surface, they are supplied complete with gaskets for sealing into the housing and a wide range of micron ratings are available.
Features and information
- Available in either a cylindrical or pleated stainless steel configuration, using no resin or glue-based binders, these reusable cartridges offer a perfect choice for high temperature applications
- The cartridges are offered in 5 to 850 micron with end cap options of 222 and 226
- The pleated construction of the SPS delivers an extra 0.1m2 of surface area versus the cylindrical cartridge for improved flow and dirt holding
- Suited to heavily contaminated applications and as prefiltration before expensive, disposable, final filters
- For challenging, industrial environments, a pleat protector cage option is available on the SPS
Applications & Industries
- High temperature specification
- Caustic fluids
- Petrochemicals
- Corrosive liquids and gases
- Chemical solutions
- Straining
Specifications
- Brand: Spectrum
- Efficiency (%): 80
- End-Cap: AA - Open Gaskets
- Diameter: Regular (2.5")
- Material: 316L Stainless Steel
- Micron: 5, 10, 20, 40, 75, 100, 150, 200, 250, 500, 850
- Max Flow Rate (lpm): 40, 80, 120, 160
