Overview
High-Performance Refrigeration Technology

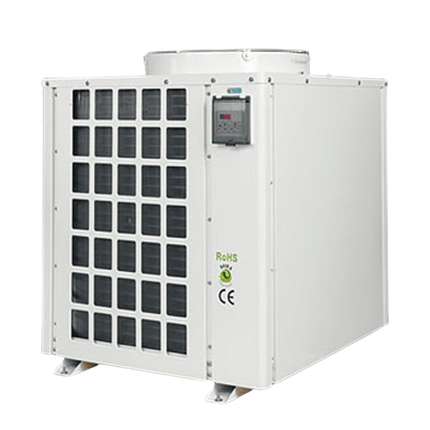

TK Heat Pumps use internationally-recognized rotary compressors with a titanium coaxial heat exchangers to ensure low-energy consumption while sustaining the highest in performance throughout. The technology in these heat pumps allows one to decrease noise levels and achieve a high COP (coefficient of performance) contributing to significant energy
savings.
Digital Thermostat
The setting of functions is intuitive and the temperature detection is accurate, resolution 0,5°C (1°F). The setting range is 5°C - 40°C (32 – 104 °F) and there is a closed loop temperature control system with high accuracy and extremely tight differential 2 °C/ 5 °F. Displayed temperature is in °C or °F and there are security alarms. Possibility to monitor the chiller even remotely, degree of protection IP24.
Efficient Design
The unit is characterized by a solid structure and was designed to provide maximum oxidation protection—great for use with salt-water.
Unique Feature
These units are also suitable for industrial applications and outdoor installation. Vertical ventilation ensures optimal operation even when operated in harsh environments.
-
Technical Details
-Supply: 230V-50Hz
-Power Consumption: 4950w
-Cooling Power: 15 kW
-Ecological Gas: R407c
-Min. Flow Rate: 6500 lt / h
-(water temp. 25°C - Room temp. 30°C - Heating load 0,3 w / lt)
-Dimensions: 66 x 62 x 84 (h) cm
-Weight: 130 kg -Connections: 1 ½”
